ESD5V0 Series

Manufacturer: Micro Commercial Components

Catalog

TVS DIODE 5VWM 18.6VC SOD523

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Package / Case	Capacitance @ Frequency	Type	Supplier Device Package	Voltage - Clamping (Max) @ Ipp	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Bidirectional Channels [custom]
Micro Commercial Components ESD5V0D5-TP	-55 °C	150 °C	General Purpose	18.6 V	Surface Mount	1	5 V	11.6 A	SC-79 SOD-523	80 pF	Zener	SOD-523
Micro Commercial Components ESD5V0PW-TP	-55 °C	125 ¯C	General Purpose		Surface Mount	4	5 V	3 A	5-XFDFN	0.35 pF	Steering	DFN1308-5	12 V	6.5 V	36 W

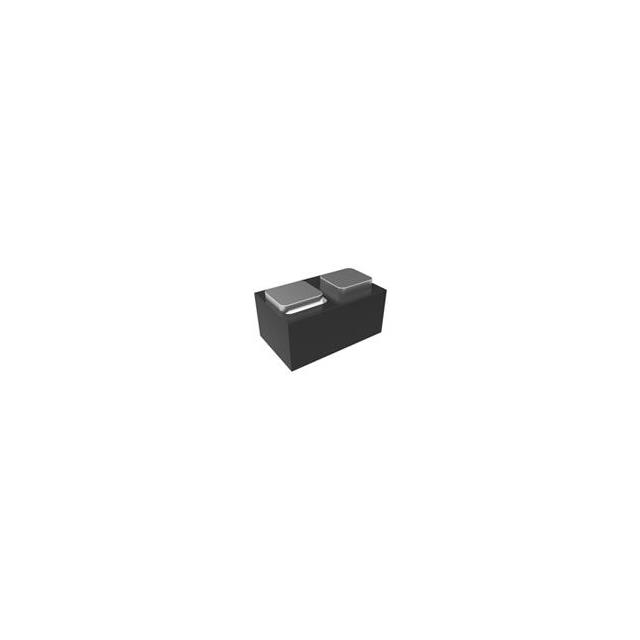

Micro Commercial Components ESD5V0LPB-TP	-55 °C	150 °C	General Purpose	12.5 V	Surface Mount		5 V	11.2 A	SOD-882	30 pF	Zener	SOD-882		5.8 V	100 mW	1
Micro Commercial Components ESD5V0J4-TP	-55 °C	150 °C	General Purpose	12.5 V	Surface Mount	4	5 V	5 A	5-TSSOP SC-70-5 SOT-353		Zener	SOT-353		6 V	200 W
Micro Commercial Components ESD5V0M5-TP	-55 °C	150 °C	General Purpose	13.5 V	Surface Mount	5	5 V	5 A	SOT-563 SOT-666		Zener	SOT-563		6 V	100 W

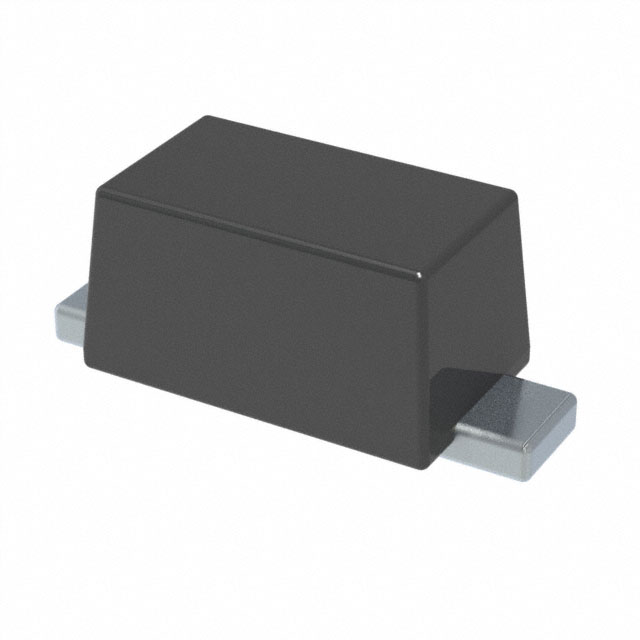

Micro Commercial Components ESD5V0D7-TP-HF	-55 °C	150 °C	General Purpose	13.3 V	Surface Mount	1	5 V	8.8 A	SOD-723	65 pF	Zener	SOD-723			117 W
Micro Commercial Components ESD5V0L-TP	-55 °C	125 ¯C	General Purpose	15 V	Surface Mount	1	5 V	20 A	0402 (1006 Metric)	160 pF	Zener	2-DFN1006		6 V	300 W
Micro Commercial Components ESD5V0D3B-TPS01	-55 °C	150 °C	General Purpose	15 V	Surface Mount		5 V	8 A	SC-76 SOD-323	27 pF	Zener	SOD-323		5.8 V	120 W	1
Micro Commercial Components ESD5V0LB-TP	-55 °C	125 ¯C	General Purpose	16 V	Surface Mount		5 V	25 A	0402 (1006 Metric)	80 pF	Zener	2-DFN1006		6 V	400 W	1
Micro Commercial Components ESD5V0L-TP	-55 °C	125 ¯C	General Purpose	15 V	Surface Mount	1	5 V	20 A	0402 (1006 Metric)	160 pF	Zener	2-DFN1006		6 V	300 W
