746-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 34POS 0.125

Part	Termination Rows	Material - Insulation	Card Type	Contact Material	Number of Positions [custom]	Color	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Termination	Number of Positions/Bay/Row	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Read Out	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row [custom]
EDAC Inc. 746-034-541-106	1	Polyester Thermoplastic	Non Specified - Single Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit Wire Wrap	34	Female	-40 C	105 ░C	Gold	Single	Through Hole	Cantilever	30 Áin	0.76 Ám	1

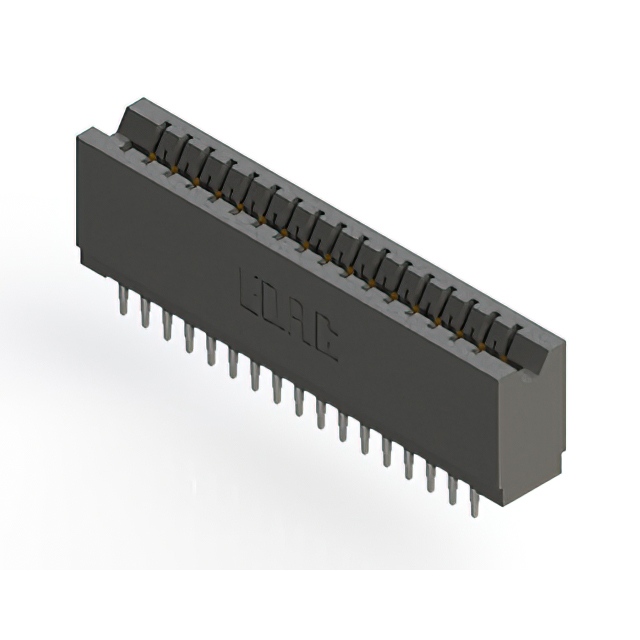

EDAC Inc. 746-034-525-606		Polyester Thermoplastic	Non Specified - Dual Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit		Female	-40 C	105 ░C	Gold	Dual	Through Hole	Cantilever	30 Áin	0.76 Ám		2	2	17

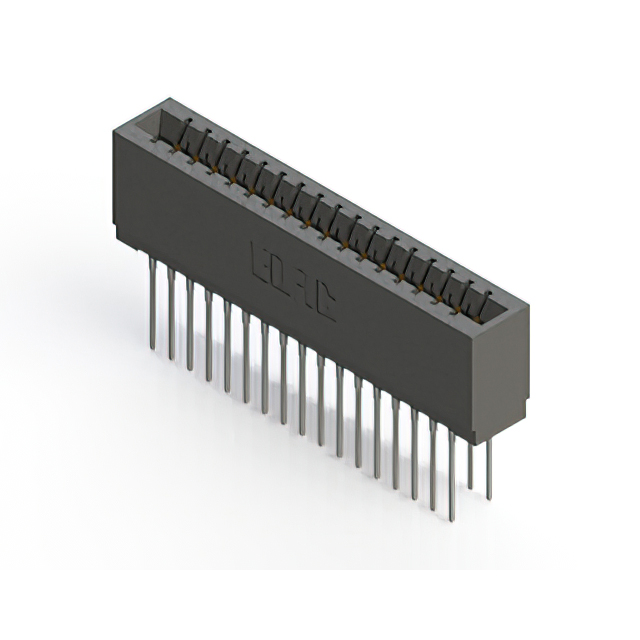

EDAC Inc. 746-034-545-601		Polyester Thermoplastic	Non Specified - Dual Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit Wire Wrap		Female	-40 C	105 ░C	Gold	Dual	Through Hole	Cantilever	30 Áin	0.76 Ám		2	2	17
EDAC Inc. 746-034-545-206		Polyester Thermoplastic	Non Specified - Dual Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit Wire Wrap		Female	-40 C	105 ░C	Gold	Dual	Through Hole	Cantilever	30 Áin	0.76 Ám		2	2	17

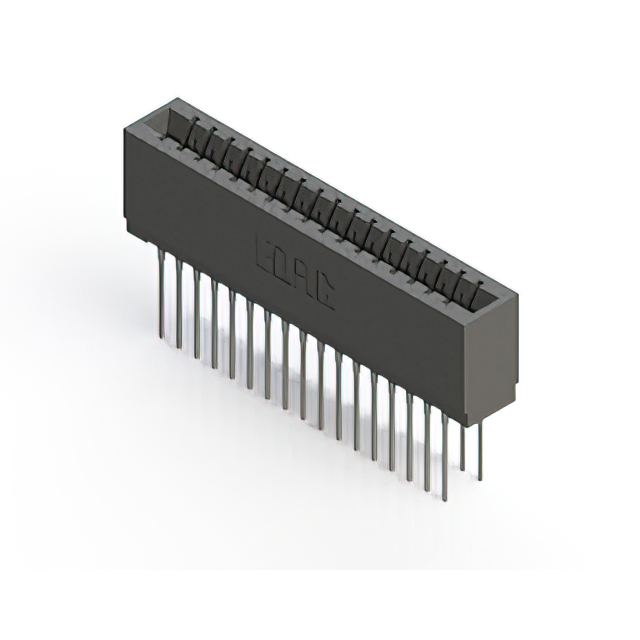

EDAC Inc. 746-034-553-201		Polyester Thermoplastic	Non Specified - Dual Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit Wire Wrap		Female	-40 C	105 ░C	Gold	Dual	Through Hole	Cantilever	30 Áin	0.76 Ám		2	2	17

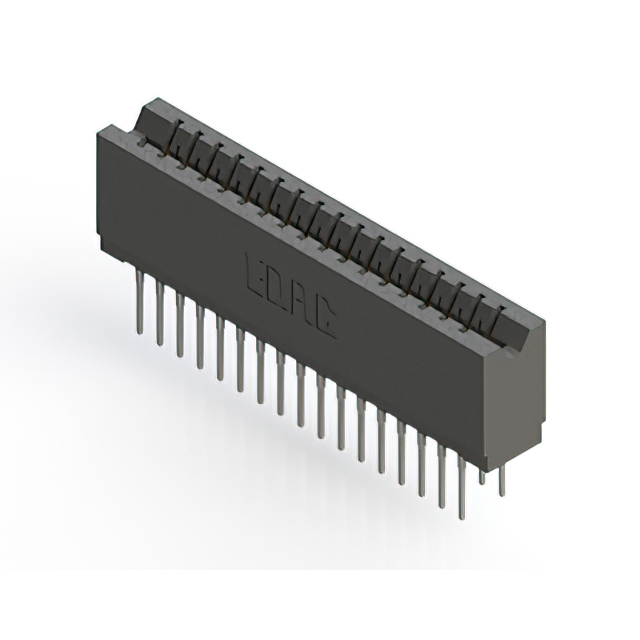

EDAC Inc. 746-034-527-206		Polyester Thermoplastic	Non Specified - Dual Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit		Female	-40 C	105 ░C	Gold	Dual	Through Hole	Cantilever	30 Áin	0.76 Ám		2	2	17

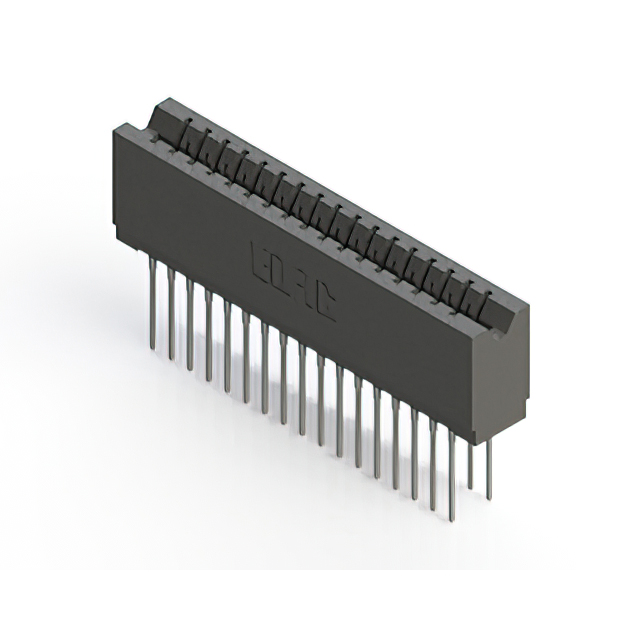

EDAC Inc. 746-034-540-606		Polyester Thermoplastic	Non Specified - Dual Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit Wire Wrap		Female	-40 C	105 ░C	Gold	Dual	Through Hole	Cantilever	30 Áin	0.76 Ám		2	2	17
EDAC Inc. 746-034-525-201		Polyester Thermoplastic	Non Specified - Dual Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit		Female	-40 C	105 ░C	Gold	Dual	Through Hole	Cantilever	30 Áin	0.76 Ám		2	2	17
EDAC Inc. 746-034-541-506	1	Polyester Thermoplastic	Non Specified - Single Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit Wire Wrap	34	Female	-40 C	105 ░C	Gold	Single	Through Hole	Cantilever	30 Áin	0.76 Ám	1
EDAC Inc. 746-034-560-206		Polyester Thermoplastic	Non Specified - Dual Edge	Copper Alloy	34	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Press-Fit		Female	-40 C	105 ░C	Gold	Dual	Through Hole	Cantilever Make Before Break	30 Áin	0.76 Ám		2	2	17
