325-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

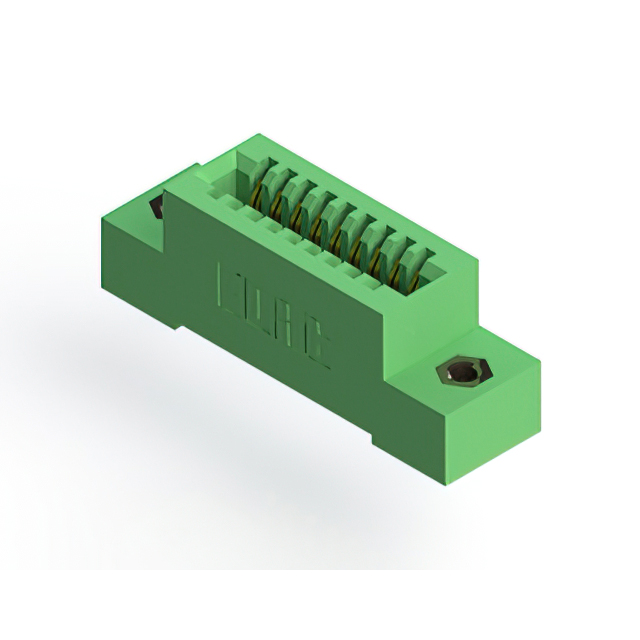

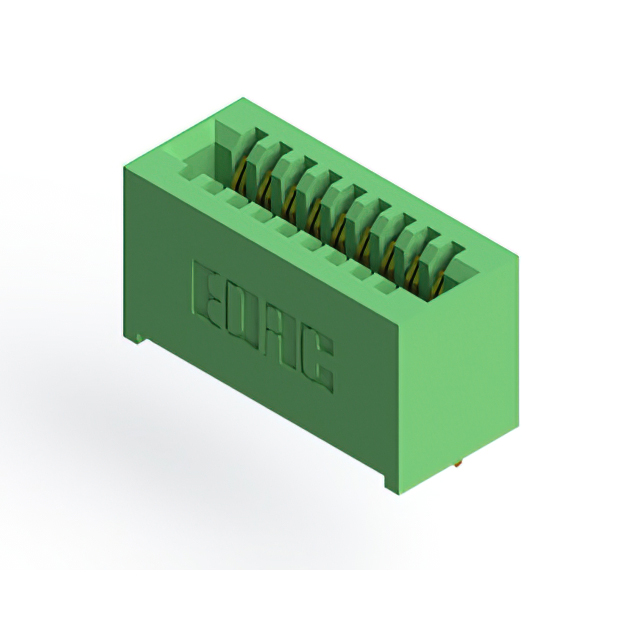

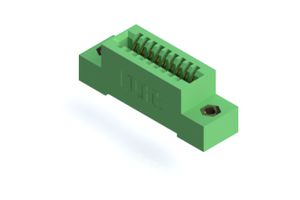

CONN EDGE SINGLE FML 9POS 0.100
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Mounting Type | Contact Material | Card Type | Number of Positions | Read Out | Gender | Card Thickness | Card Thickness | Color | Termination | Flange Feature | Contact Finish | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 9 | Through Hole | Copper Alloy | Non Specified - Single Edge | 9 | Single | Female | 3.18 mm | 0.125 in | Green | Solder | Flush Mount M3 Threaded Insert Top Opening | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Cantilever | 1 |
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 9 | Through Hole | Copper Alloy | Non Specified - Single Edge | 9 | Single | Female | 3.18 mm | 0.125 in | Green | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Cantilever | 1 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 9 | Through Hole | Copper Alloy | Non Specified - Single Edge | 9 | Single | Female | 3.18 mm | 0.125 in | Green | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Cantilever | 1 |
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 9 | Through Hole | Copper Alloy | Non Specified - Single Edge | 9 | Single | Female | 3.18 mm | 0.125 in | Green | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Cantilever | 1 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 9 | Through Hole | Copper Alloy | Non Specified - Single Edge | 9 | Single | Female | 3.18 mm | 0.125 in | Green | Solder | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Cantilever | 1 | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 9 | Through Hole | Copper Alloy | Non Specified - Single Edge | 9 | Single | Female | 3.18 mm | 0.125 in | Green | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Cantilever | 1 |
