IMB12 Series

Catalog

INDUCTIVE PROX SENSOR, COMP PNP-30V ROHS COMPLIANT: YES

Part	Response Frequency	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Indicator	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Termination Style	Output Type	Sensor Type	Package / Case	Ingress Protection	Material - Body	Output Type
SICK, Inc. IMB12-04BPPVC0K	2 kHz	Shielded	-40 °C	100 °C	LED	10 VDC	30 VDC	4 mm	0.157 in	Connector	4-Wire PNP-NC/NO	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic
SICK, Inc. 1072736	2 kHz	Shielded	-40 °C	100 °C	No Indicator	10 VDC	30 VDC	4 mm	0.157 in	Connector	PNP-NC	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic	3
SICK, Inc. 1074359	2 kHz	Shielded	-40 °C	100 °C	LED	10 VDC	30 VDC	4 mm	0.157 in	Connector	4-Wire NC/NO	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic
SICK, Inc. 1072741	2 kHz	Shielded	-40 °C	100 °C	No Indicator	10 VDC	30 VDC	4 mm	0.157 in	Cable Leads	3-Wire NPN-NO	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic

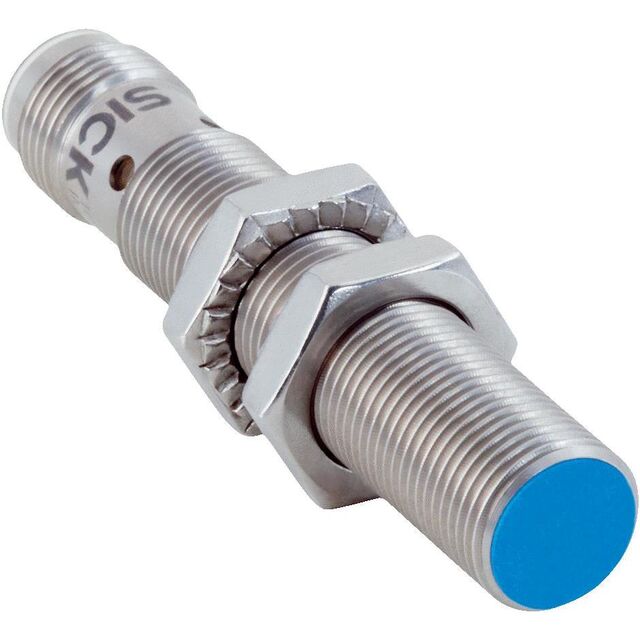

SICK, Inc. 1074361	2 kHz	Shielded	-40 °C	100 °C	LED	10 VDC	30 VDC	4 mm	0.157 in	Connector	4-Wire NPN-NC/NO	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic
SICK, Inc. 1072744	2 kHz	Shielded	-40 °C	100 °C	No Indicator	10 VDC	30 VDC	8 mm	0.315 in	Cable Leads	PNP-NC	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic	3
SICK, Inc. 1072455	2 kHz	Shielded	-40 °C	100 °C	No Indicator	10 VDC	30 VDC	4 mm	0.157 in	Cable Leads	PNP-NO	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic	3
SICK, Inc. 1072739	2 kHz	Shielded	-40 °C	100 °C	No Indicator	10 VDC	30 VDC	8 mm	0.315 in	Connector	PNP-NC	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic	3
SICK, Inc. 1076281	2 kHz	Unshielded	-40 C	100 °C	LED	10 VDC	30 VDC	8 mm	0.315 in	Cable Leads		Inductive	Cylinder Threaded - M12	IP69K	Stainless Steel
SICK, Inc. 1072748	2 kHz	Shielded	-40 °C	100 °C	No Indicator	10 VDC	30 VDC	4 mm	0.157 in	Connector	PNP-NC	Inductive	Cylinder Threaded - M12	IP68 IP69K	Plastic	3
