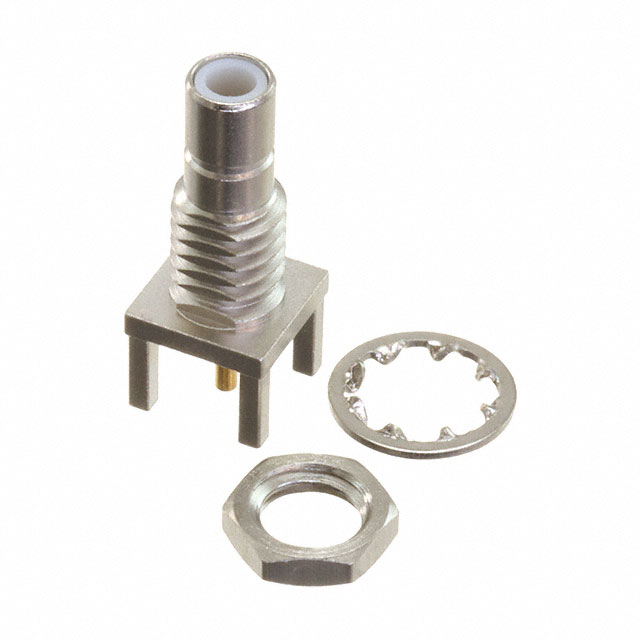

2109-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMB M STR BHD
| Part | Includes | Dielectric Material | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Contact Termination | Mounting Type | Shield Termination | Mounting Feature | Housing Color | Connector Style | Number of Ports | Frequency - Max [Max] | Connector Type | Center Contact Material | Fastening Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Brass | 500 | -65 ░C | 165 °C | Nickel | Gold | Solder | Panel Mount Through Hole | Solder | Bulkhead - Front Side Nut | Silver | SMB | 1 | 4 GHz | Jack Male Pin | Brass | Snap-On | 50 Ohms |
