054393 Series

Manufacturer: Molex

Catalog

CONN FPC BOTTOM 21POS 0.3MM R/A

Part	Mounting Type	Connector/Contact Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature	Mating Cycles	FFC, FCB Thickness	Material Flammability Rating	Pitch [x]	Pitch [x]	Flat Flex Type	Features	Height Above Board	Height Above Board	Cable End Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Actuator Material	Contact Finish	Current Rating (Amps)	Contact Material	Voltage Rating	Termination
Molex 543932181	Surface Mount Right Angle	Contacts Bottom	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock	20	0.2 mm	UL94 V-0	0.012 in	0.3 mm	FPC	Solder Retention Zero Insertion Force (ZIF)	1.95 mm	0.077 in	Tapered	21	8 çin	0.203 çm	Polyphenylene Sulfide (PPS)	Gold	0.2 A	Phosphor Bronze	50 V	Solder
Molex 0543932192

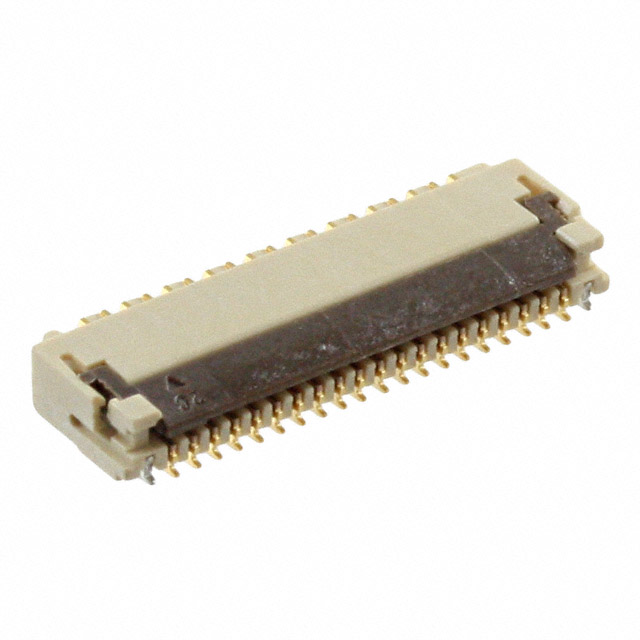

Molex 0543933981	Surface Mount Right Angle	Contacts Bottom	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock	20	0.2 mm	UL94 V-0	0.012 in	0.3 mm	FPC	Solder Retention Zero Insertion Force (ZIF)	1.95 mm	0.077 in	Tapered	39	8 çin	0.203 çm	Polyphenylene Sulfide (PPS)	Gold	0.2 A	Phosphor Bronze	50 V	Solder

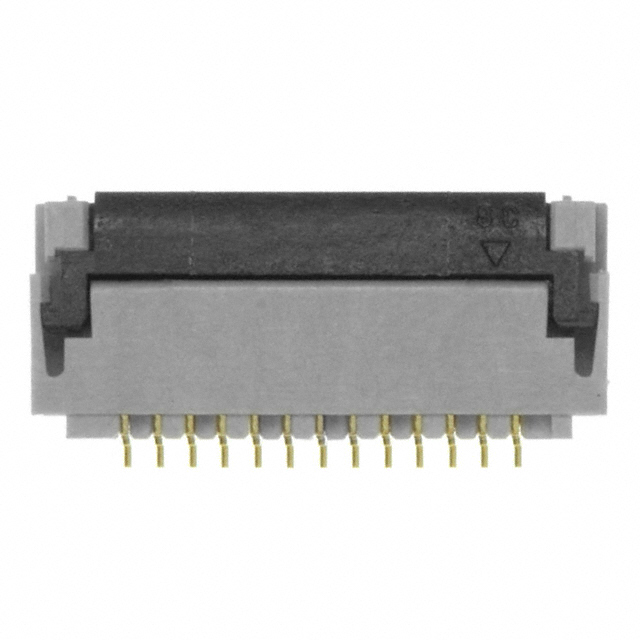

Molex 0543932781	Surface Mount Right Angle	Contacts Bottom	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock	20	0.2 mm	UL94 V-0	0.012 in	0.3 mm	FPC	Solder Retention Zero Insertion Force (ZIF)	1.95 mm	0.077 in	Tapered	27	8 çin	0.203 çm	Polyphenylene Sulfide (PPS)	Gold	0.2 A	Phosphor Bronze	50 V	Solder
Molex 0543934581	Surface Mount Right Angle	Contacts Bottom	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock	20	0.2 mm	UL94 V-0	0.012 in	0.3 mm	FPC	Solder Retention Zero Insertion Force (ZIF)	1.95 mm	0.077 in	Tapered	45	8 çin	0.203 çm	Polyphenylene Sulfide (PPS)	Gold	0.2 A	Phosphor Bronze	50 V	Solder

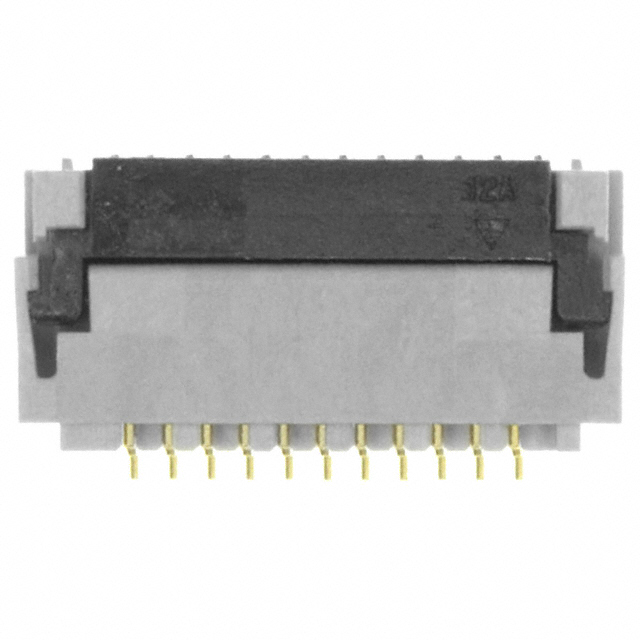

Molex 0543932381	Surface Mount Right Angle	Contacts Bottom	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock	20	0.2 mm	UL94 V-0	0.012 in	0.3 mm	FPC	Solder Retention Zero Insertion Force (ZIF)	1.95 mm	0.077 in	Tapered	23	8 çin	0.203 çm	Polyphenylene Sulfide (PPS)	Gold	0.2 A	Phosphor Bronze	50 V	Solder
Molex 0543933382
Molex 0543932181	Surface Mount Right Angle	Contacts Bottom	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock	20	0.2 mm	UL94 V-0	0.012 in	0.3 mm	FPC	Solder Retention Zero Insertion Force (ZIF)	1.95 mm	0.077 in	Tapered	21	8 çin	0.203 çm	Polyphenylene Sulfide (PPS)	Gold	0.2 A	Phosphor Bronze	50 V	Solder
