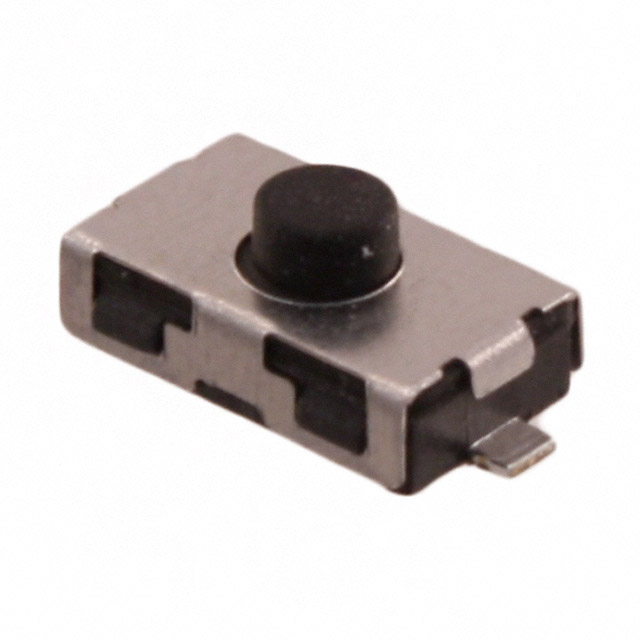

TL3310 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NC 0.05A 50V
| Part | Actuator Material | Switch Travel | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Actuator Type | Switch Function | Circuit | Actuator Orientation | Mounting Type | Operating Force | Contact Rating @ Voltage | Termination Style | Actuator Height off PCB, Vertical [z] | Outline [x] | Outline [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Silicone Rubber | 0.5 mm | 50000 Cycles | -20 ░C | 70 °C | Non-Illuminated | Standard | On-Mom | SPST-NC | Top Actuated | Surface Mount | 0.2 kgf | 0.05 A 50 VDC | Gull Wing | 2.5 mm | 6 mm | 3.8 mm |
