WP7A-S01 Series

Catalog

CONN RCPT 10POS SMD GOLD

Part	Height Above Board	Height Above Board	Pitch	Pitch	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Positions	Mated Stacking Heights	Features	Mounting Type

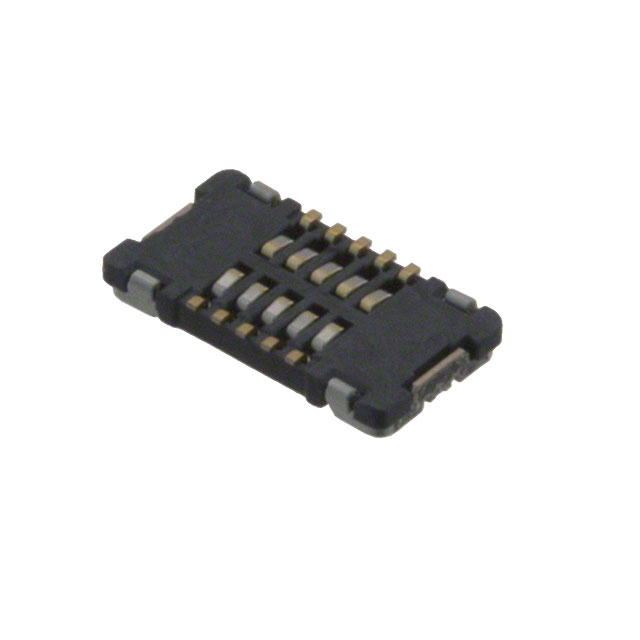

JAE Electronics WP7A-S010VA1-R500	0.028 in	0.71 mm	0.4 mm	0.016 in	2	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Gold	10	0.7 mm	Solder Retention	Surface Mount
JAE Electronics WP7A-S010VA1-R8000	0.028 in	0.71 mm	0.4 mm	0.016 in	2	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Gold	10	0.7 mm	Solder Retention	Surface Mount

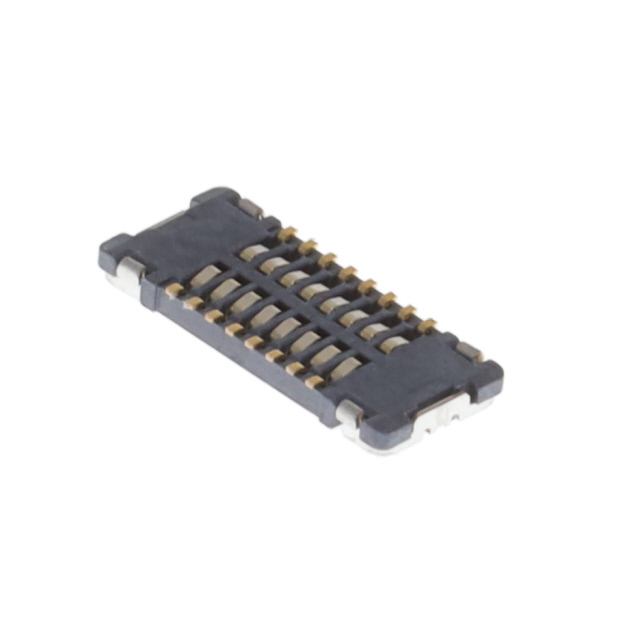

JAE Electronics WP7A-S016VA1-R8000	0.028 in	0.71 mm	0.4 mm	0.016 in	2	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Gold	16	0.7 mm	Solder Retention	Surface Mount
JAE Electronics WP7A-S010VA1-R6000	0.028 in	0.71 mm	0.4 mm	0.016 in	2	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Gold	10	0.7 mm	Solder Retention	Surface Mount
JAE Electronics WP7A-S016VA1-R6000	0.028 in	0.71 mm	0.4 mm	0.016 in	2	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Gold	16	0.7 mm	Solder Retention	Surface Mount

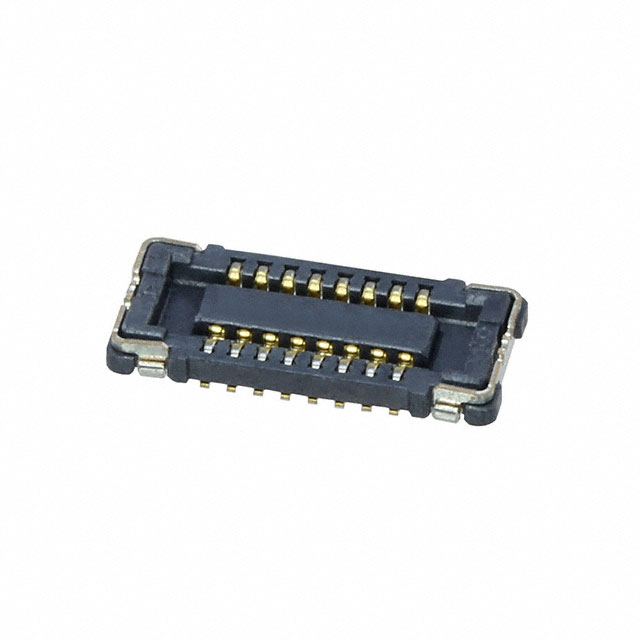

JAE Electronics WP7A-S016VA1-R500	0.028 in	0.71 mm	0.4 mm	0.016 in	2	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	Gold	16	0.7 mm	Solder Retention	Surface Mount
