322335 Series

Catalog

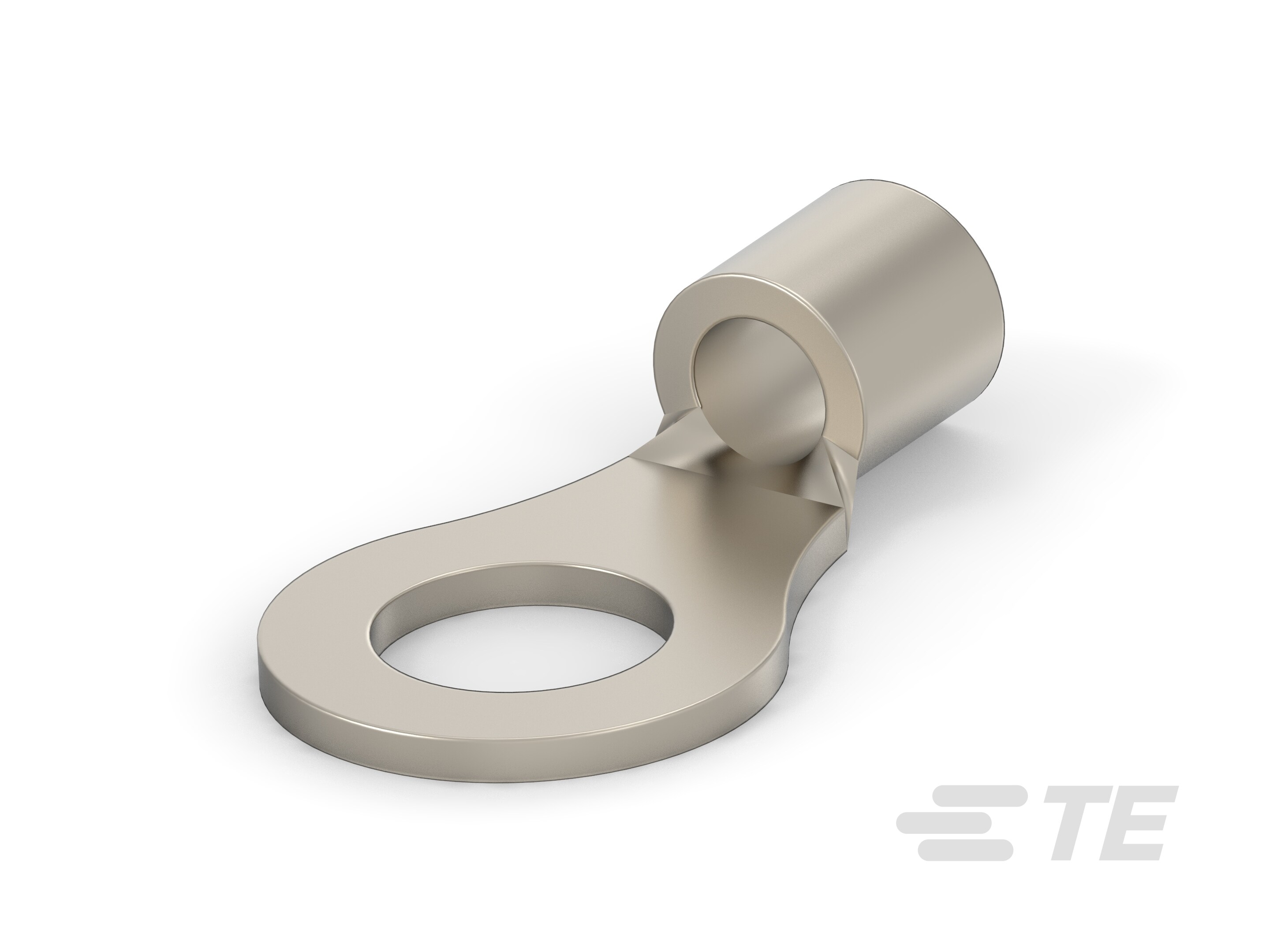

TERMINAL,SOLIS R HT 16-14 10

Part	Terminal Type	Termination	Thickness	Thickness	Contact Material	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Insulation	Mounting Type
TE Connectivity Raychem Cable Protection 2-322335-5	Circular	Crimp	0.03 in	0.76 mm	Nickel	Brazed Seam High Temperature Serrated Termination	0.343 in	8.71 mm	0.636 in	16.15 mm	10 Stud	Non-Insulated	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 8-322335-1	Circular	Crimp	0.03 in	0.76 mm	Nickel	Brazed Seam High Temperature Serrated Termination	0.343 in	8.71 mm	0.636 in	16.15 mm	10 Stud	Non-Insulated	Free Hanging (In-Line)
