100SXE Series

Catalog

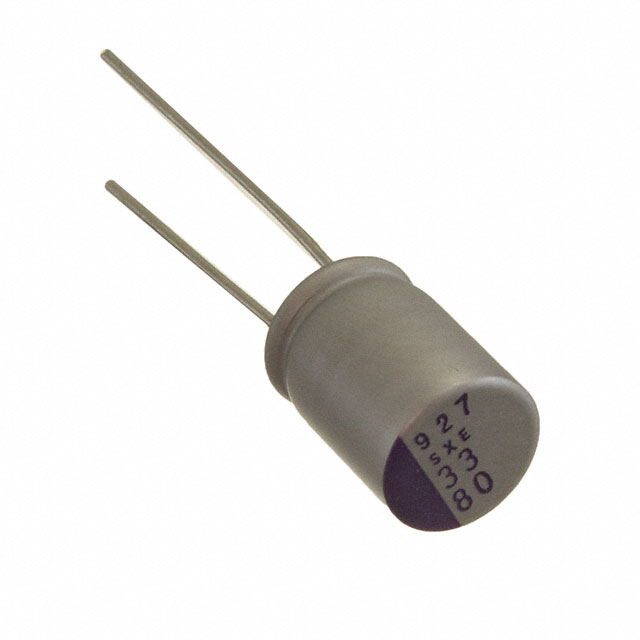

CAP ALUM POLY 18UF 20% 100V TH

Part	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Mounting Type	Voltage - Rated	Capacitance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Panasonic Electronic Components 100SXE18M	0.197 "	5 mm	-55 C	125 °C	1000 Hrs	30 mOhms	Polymer	0.512 "	13 mm	Can Radial	Through Hole	100 V	18 µF	3000 mA	150 mA	0.394 in	10 mm	20 %	General Purpose
Panasonic Electronic Components 100SXE27M	0.197 "	5 mm	-55 C	125 °C	1000 Hrs	30 mOhms	Polymer	0.512 "	13 mm	Can Radial	Through Hole	100 V	27 µF	3000 mA	150 mA	0.394 in	10 mm	20 %	General Purpose
Panasonic Electronic Components 100SXE6R8M	0.138 in	3.5 mm	-55 C	125 °C	1000 Hrs	60 mOhms	Polymer			Can Radial	Through Hole	100 V	6.8 µF	1.1 A		0.315 in	8 mm	20 %	General Purpose	0.276 in	7 mm
Panasonic Electronic Components 100SXE15M	0.138 in	3.5 mm	-55 C	125 °C	1000 Hrs	40 mOhm	Polymer			Can Radial	Through Hole	100 V	15 µF	2.35 A	117.5 mA	0.315 in	8 mm	20 %	General Purpose	0.472 in		12 mm
Panasonic Electronic Components 100SXE15MX	0.197 "	5 mm	-55 C	125 °C	1000 Hrs	60 mOhms	Polymer			Can Radial	Through Hole	100 V	15 µF	2 A	100 mA	0.394 in	10 mm	20 %	General Purpose	0.315 in	8 mm
