499-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

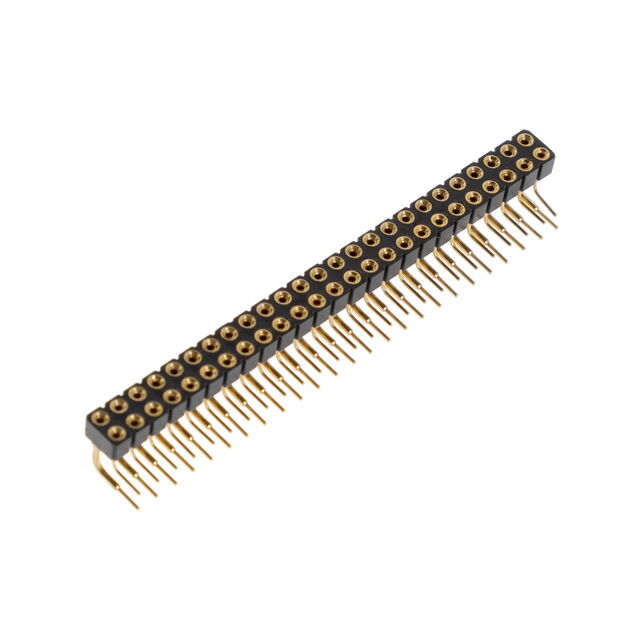

CONN RCPT 50POS 0.1 GOLD PCB R/A

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Rows [custom]	Termination	Connector Type	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 499-13-250-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	50	All	Gold	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 499-13-254-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	54	All	Gold	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 499-13-248-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	48	All	Gold	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 499-13-246-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	46	All	Gold	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 499-13-258-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	58	All	Gold	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 499-13-264-10-003000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	64	All	Gold	0.126 "	3.2 mm	3 A	UL94 V-0	-55 C	125 °C
Mill-Max Manufacturing Corp. 499-13-224-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	24	All	Gold	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 499-13-230-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	30	All	Gold	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 499-13-220-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	20	All	Gold	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 499-13-256-10-003000	Beryllium Copper	Thermoplastic	Circular	10 Áin	0.25 çm	Female Socket	0.76 Ám	30 Áin	Black	2	Solder	Receptacle	Push-Pull	0.1 "	2.54 mm	Gold	0.2 in	5.08 mm	Right Angle Through Hole	0.1 in	2.54 mm	56	All	Gold	0.126 "	3.2 mm
