XB-09 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Operating Mode	Termination	Termination	Termination	Approval Agency	Frequency	Port Location	Technology	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Sound Pressure Level (SPL)	Driver Circuitry	Mounting Type	Ingress Protection	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Max]	Voltage Range [Min]	Current - Supply [Max]	Current - Supply [Min]	Input Type
Floyd Bell Inc XB-09-630-Q(F)D	Fast Pulse Single Tone	Quick Connect Tab	0.25 "	6.35 mm	UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	30 V	6 VDC	50 mA	10 mA	DC
Floyd Bell Inc XB-09-201-Q(F)	Fast Pulse	Quick Connect Tab	0.25 "	6.35 mm	UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	120 V	30 VDC	45 mA	10 mA	AC
Floyd Bell Inc XB-09-630-W(F)	Fast Pulse	Wire Leads			UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	30 V	6 VDC	50 mA	10 mA	DC
Floyd Bell Inc XB-09-301-Q(S)	Pulse Slow	Quick Connect Tab	0.25 "	6.35 mm	UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	220 V	130 V	45 mA	10 mA	AC
Floyd Bell Inc XB-09-630-Q(U)	Fast Pulse	Quick Connect Tab	0.25 "	6.35 mm	UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	30 V	6 VDC	50 mA	10 mA	DC
Floyd Bell Inc XB-09-312-Q(F)	Fast Pulse	Quick Connect Tab	0.25 "	6.35 mm	UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	12 V	5 VDC	40 mA	15 mA	DC
Floyd Bell Inc XB-09-312-W(U)	Fast Pulse	Wire Leads			UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	12 V	5 VDC	40 mA	15 mA	DC
Floyd Bell Inc XB-09-301-S(F)	Fast Pulse	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	220 V	130 V	45 mA	10 mA	AC
Floyd Bell Inc XB-09-312-S(S)D	Pulse Single Tone Slow	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	12 V	5 VDC	40 mA	15 mA	DC

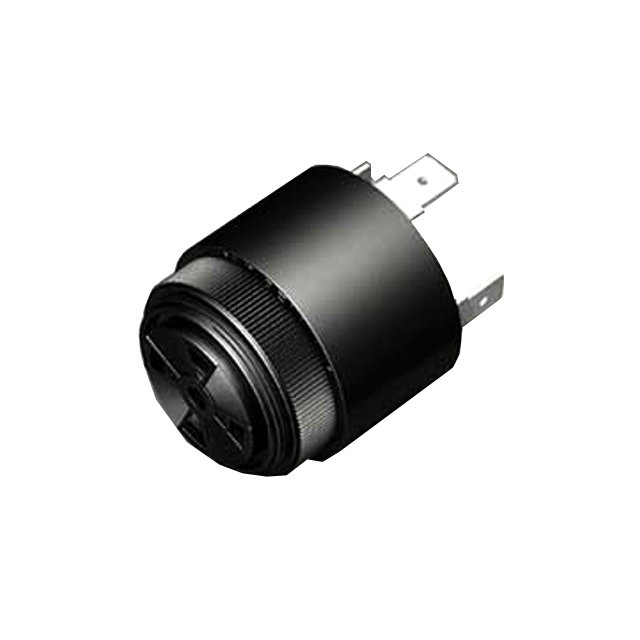

Floyd Bell Inc XB-09-630-Q(M)D	Medium Pulse Single Tone	Quick Connect Tab	0.25 "	6.35 mm	UL UR	2.9 kHz	Top	Piezo	1.38 in	35.05 mm	103 dB	Indicator Internally Driven	Panel Mount	IP68 - Dust Tight Waterproof	1.41 in	35.81 mm	30 V	6 VDC	50 mA	10 mA	DC
