042376 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 6POS 2.54MM

Part	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Rows	Applications	Mounting Type	Contact Shape	Number of Positions Loaded	Number of Positions	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Type	Insulation Material	Contact Finish - Mating	Material Flammability Rating	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Style	Contact Length - Post	Contact Length - Post

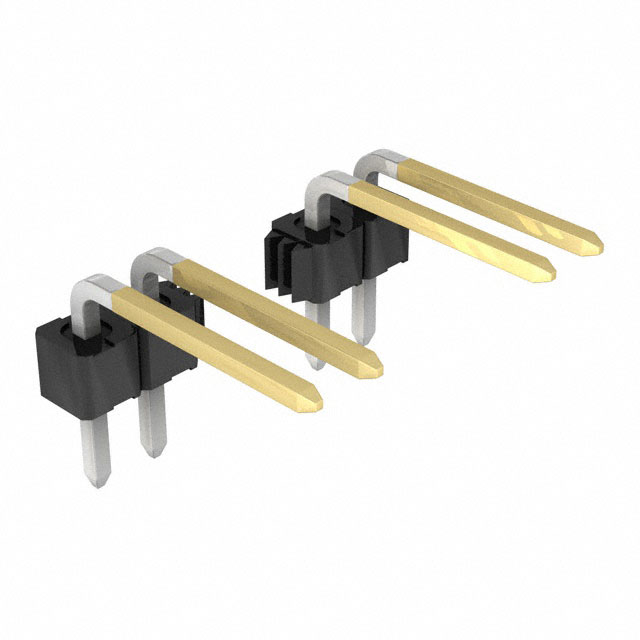

Molex 0423760687	Unshrouded	15 µin	0.38 µm	Black	1	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	Square	All	6	Breakaway Header	3.12 mm	0.123 in	Tin	Male Pin	Glass Filled Nylon Polyamide (PA)	Gold	UL94 V-0	Solder	0.09 in	2.29 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Push-Pull	0.405 in	10.29 mm	Board to Board Cable

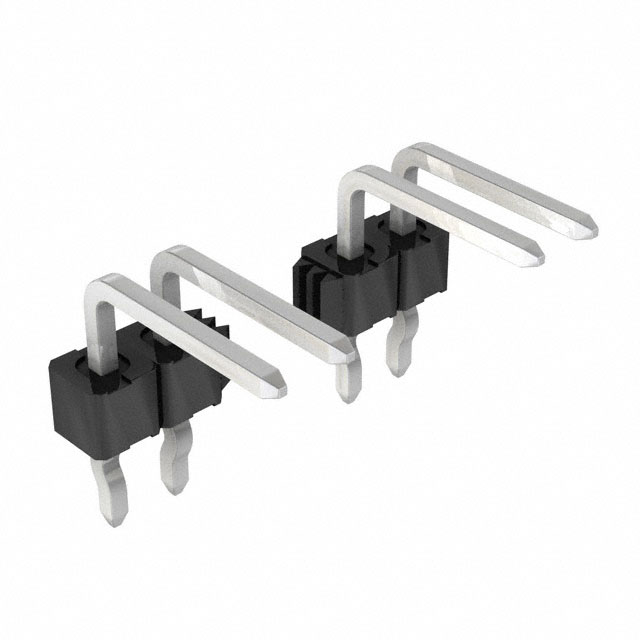

Molex 0423760428	Unshrouded	100 çin	2.54 çm	Black	1	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	Square	All	8	Breakaway Header	3.43 mm	0.135 in	Tin	Male Pin	Glass Filled Nylon Polyamide (PA)		UL94 V-0	Kinked Pin Solder	0.09 in	2.29 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Push-Pull	0.276 in	7 mm	Board to Board Cable

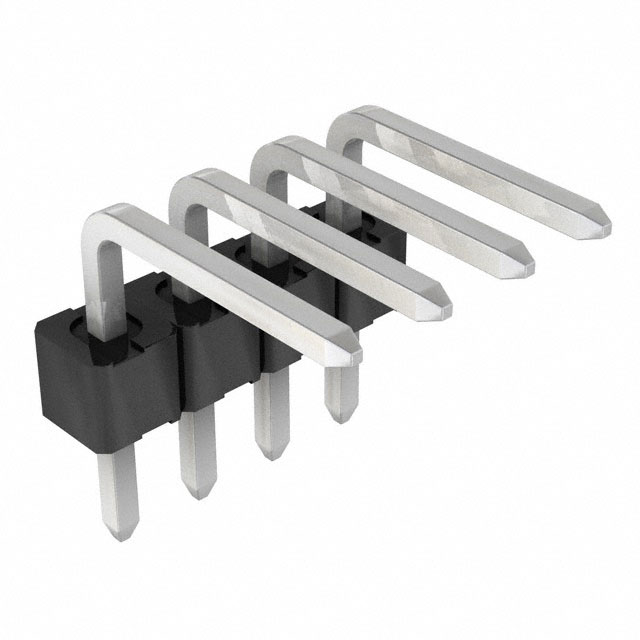

Molex 0423760584	Unshrouded	100 çin	2.54 çm	Black	1	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	Square	All	4	Breakaway Header			Tin	Male Pin	Glass Filled Nylon Polyamide (PA)		UL94 V-0	Solder	0.09 in	2.29 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Push-Pull	0.524 "	13.31 mm	Board to Board Cable	3.33 mm	0.131 "
