BJ302 Series
Manufacturer: GCT
Beta
⌘K

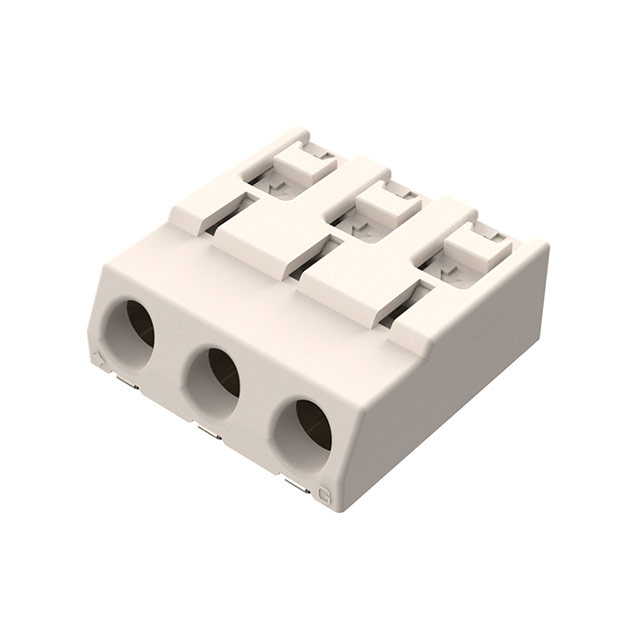

LIGHTING CONNECTORS PUSH IN CABLE CONNECTOR, SMT, 4.00MM PITCH, 3 POS, NATURAL LCP
| Part | Current Rating (Amps) | Voltage Rating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Termination | Housing Color | Mounting Type | Contact Material | Housing Material | Wire Gauge [Min] | Wire Gauge [Max] | Style | Pitch | Pitch | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GCT | 8 A | 50 V | Receptacle Poke-In Wire | -40 C | 105 ░C | Tin | Solder | Natural | Right Angle Surface Mount | Copper Alloy | Liquid Crystal Polymer (LCP) | 17.5 AWG | 24 AWG | Board to Cable/Wire | 4 mm | 0.157 in | |
 GCT | 8 A | 50 V | Receptacle Poke-In Wire | -40 C | 105 ░C | Tin | Solder | Natural | Right Angle Surface Mount | Copper Alloy | Liquid Crystal Polymer (LCP) | 17.5 AWG | 24 AWG | Board to Cable/Wire | 4 mm | 0.157 in | 2 |
 GCT | 8 A | 50 V | Receptacle Poke-In Wire | -40 C | 105 ░C | Tin | Solder | Natural | Right Angle Surface Mount | Copper Alloy | Liquid Crystal Polymer (LCP) | 17.5 AWG | 24 AWG | Board to Cable/Wire | 1 |
