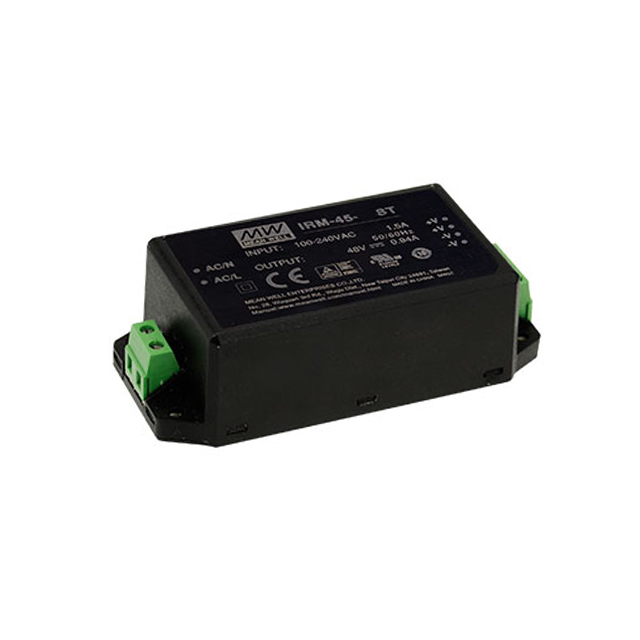

IRM-45 Series

Catalog

AC/DC CONVERTER 48V 45W

Part	Current - Output 1	Voltage - Output 1	Approval Agency	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Power (Watts)	Efficiency	Load Regulation	Line Regulation	Current - Output (Max) [Max]	Package / Case	Load Regulation
MEAN WELL USA Inc. IRM-45-48ST	940 mA	48 V	CB CE cURus TUV	Chassis Mount	305 VAC	85 VAC	ITE (Commercial)	-30 °C	70 °C	1	Enclosed	3000 V	33.5 mm	109 mm	1.32 in	2.05 in	4.29 "	52 mm	Universal Input	45 W	90.5 %
MEAN WELL USA Inc. IRM-45-5ST	8 A	5 V	CB CE cURus TUV	Chassis Mount	305 VAC	85 VAC	ITE (Commercial)	-30 °C	70 °C	1	Enclosed	3000 V	33.5 mm	109 mm	1.32 in	2.05 in	4.29 "	52 mm	Universal Input	40 W	83.5 %
MEAN WELL USA Inc. IRM-45-15		15 V	CB CE cURus TUV	Through Hole	305 VAC	85 VAC	ITE (Commercial)	-30 °C	70 °C	1	Enclosed		29.5 mm	87 mm	1.16 in	2.05 in	3.43 "	52 mm	Universal Input	45 W	83 %	0.5 %	0.5 %	3 A	4-DIP Module
MEAN WELL USA Inc. IRM-45-15ST	3 A	15 V	CB CE cURus TUV	Chassis Mount	305 VAC	85 VAC	ITE (Commercial)	-30 °C	70 °C	1	Enclosed	3000 V	33.5 mm	109 mm	1.32 in	2.05 in	4.29 "	52 mm	Universal Input	45 W	88.5 %
MEAN WELL USA Inc. IRM-45-48		48 V	CB CE cURus TUV	Through Hole	305 VAC	85 VAC	ITE (Commercial)	-30 °C	70 °C	1	Enclosed		29.5 mm	87 mm	1.16 in	2.05 in	3.43 "	52 mm	Universal Input	45 W	90.5 %	0.5 %	0.5 %	940 mA	4-DIP Module
MEAN WELL USA Inc. IRM-45-24ST	1.9 A	24 V	CB CE cURus TUV	Chassis Mount	305 VAC	85 VAC	ITE (Commercial)	-30 °C	70 °C	1	Enclosed	3000 V	33.5 mm	109 mm	1.32 in	2.05 in	4.29 "	52 mm	Universal Input	46 W
MEAN WELL USA Inc. IRM-45-12		12 V	CB CE cURus TUV	Through Hole	305 VAC	85 VAC	ITE (Commercial)	-30 °C	70 °C	1	Enclosed		29.5 mm	87 mm	1.16 in	2.05 in	3.43 "	52 mm	Universal Input	46 W	87.5 %		0.5 %	3.8 A	4-DIP Module	±1%
MEAN WELL USA Inc. IRM-45-5		5 V	CB CE cURus TUV	Through Hole	305 VAC	85 VAC	ITE (Commercial)	-30 °C	70 °C	1	Enclosed		29.5 mm	87 mm	1.16 in	2.05 in	3.43 "	52 mm	Universal Input	40 W	83.5 %		0.5 %	8 A	4-DIP Module	±1%
