BFB1612 Series

Catalog

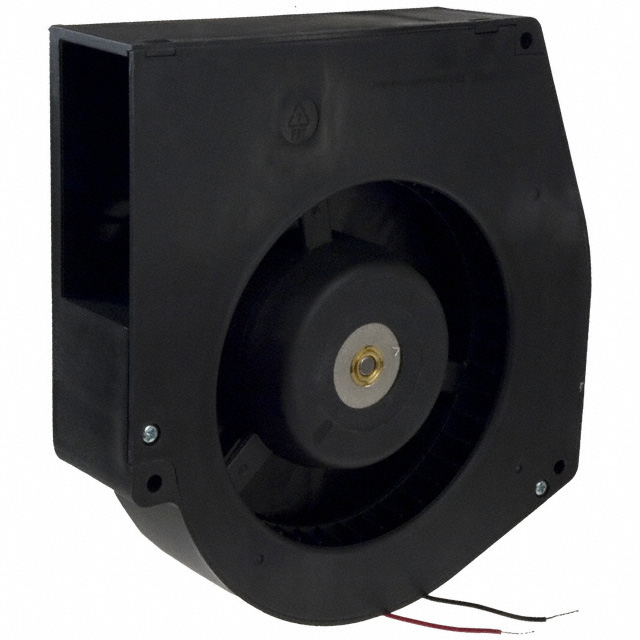

FAN BLOWER 159X40MM 12VDC WIRE

Part	Material - Blade	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Current Rating (Amps)	Voltage - Rated	Approval Agency	Noise	Termination	Bearing Type	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Fan Type	Width [x]	RPM	Power (Watts)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]
Delta Electronics BFB1612L	Plastic	Plastic	7 V	13.2 VDC	40 °C 50000 Hrs	800 mA	12 VDC	CE CSA UL VDE	51.5 dB	2 Wire Leads	Ball	1.3 lbs	589.7 g	210.7 Pa	0.846 in H2O	Blower	40 mm	1800 RPM	9.6 W	165 mm	Rectangular/Rounded	159 mm	1.39 m³/min	49.8 CFM	-10 °C	60 °C
Delta Electronics BFB1612H	Plastic	Plastic	7 V	13.2 VDC	40 °C 50000 Hrs	1.43 A	12 VDC	CE CSA UL VDE	56.5 dB	2 Wire Leads	Ball	1.3 lbs	589.7 g	343.2 Pa	1.378 in H2O	Blower	40 mm	2200 RPM	17.16 W	165 mm	Rectangular/Rounded	159 mm	1.73 m³/min	61.8 CFM	-10 °C	60 °C
