20SEPF Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM POLY 390UF 20% 20V TH

Part	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Ripple Current @ High Frequency	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Lifetime @ Temp.	Mounting Type	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 20SEPF390M+TSS	Polymer	0.315 "	8 mm	Radial Can	247.5 mA	105 ░C	-55 °C	390 µF	4.95 A	General Purpose	12 mm	0.472 "	20 %	5000 Hrs	Through Hole	14 mOhms	3.5 mm	0.138 in	20 V

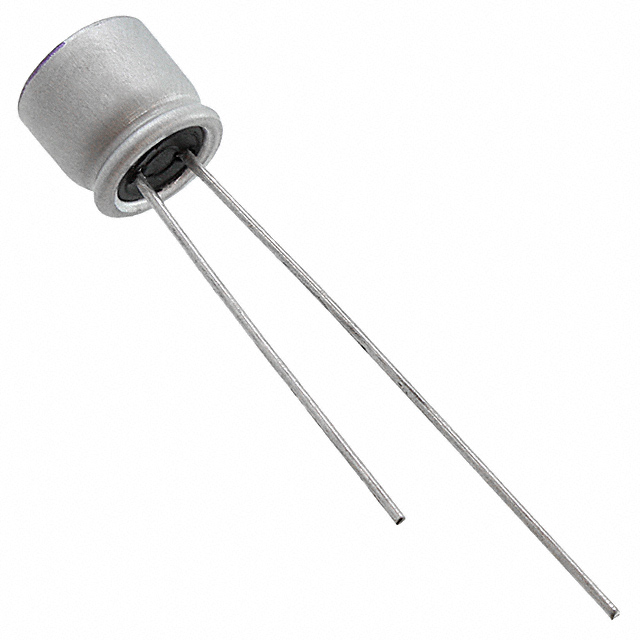

Panasonic Industrial Automation Sales 20SEPF120M	Polymer	0.248 in	6.3 mm	Radial Can	160 mA	105 ░C	-55 °C	120 µF	3.2 A	General Purpose			20 %	5000 Hrs	Through Hole	25 mOhm	2.5 mm	0.098 in	20 V	0.236 in	6 mm
Panasonic Industrial Automation Sales 20SEPF120M+TSS	Polymer	0.248 in	6.3 mm	Radial Can	160 mA	105 ░C	-55 °C	120 µF	3.2 A	General Purpose			20 %	5000 Hrs	Through Hole	25 mOhm	2.5 mm	0.098 in	20 V	0.236 in	6 mm

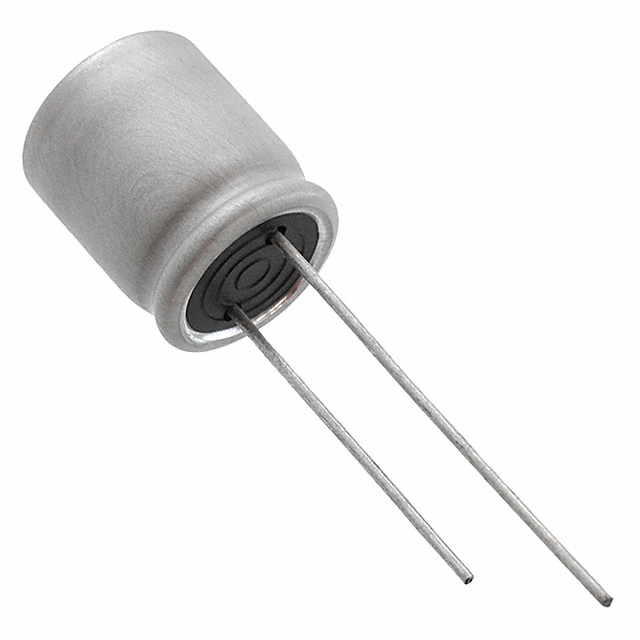

Panasonic Industrial Automation Sales 20SEPF560M+T	Polymer	0.394 in	10 mm	Radial Can	270 mA	105 ░C	-55 °C	560 µF	5.4 A	General Purpose	13 mm	0.512 "	20 %	5000 Hrs	Through Hole	12 mOhms	5 mm	0.197 in	20 V
Panasonic Industrial Automation Sales 20SEPF390M	Polymer	0.315 "	8 mm	Radial Can	247.5 mA	105 ░C	-55 °C	390 µF	4.95 A	General Purpose	12 mm	0.472 "	20 %	5000 Hrs	Through Hole	14 mOhms	3.5 mm	0.138 in	20 V
Panasonic Industrial Automation Sales 20SEPF180M+TSS	Polymer	0.315 "	8 mm	Radial Can	160 mA	105 ░C	-55 °C	180 çF	3.2 A	General Purpose			20 %	5000 Hrs	Through Hole	25 mOhm	3.5 mm	0.138 in	20 V	0.276 "	7 mm
