1140-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .040DIA TIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Termination | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Insulation | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

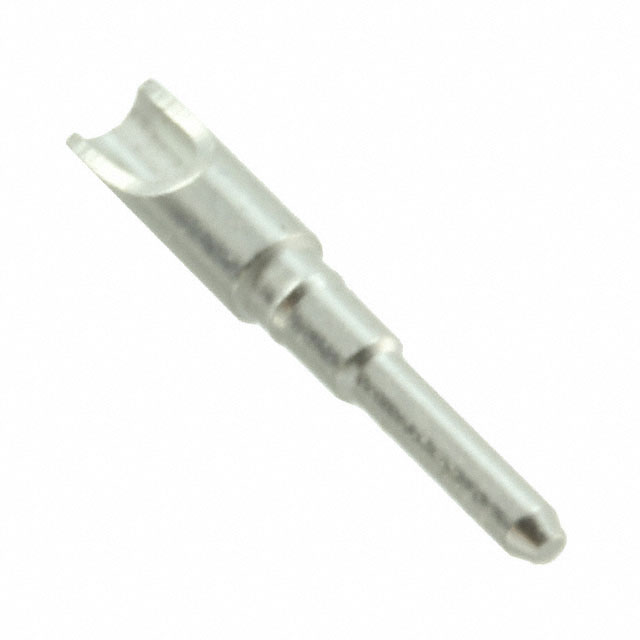

 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | PC Pin | 0.452 in | 11.48 mm | 0.072 " | 1.83 mm | Tin | Press-Fit | Brass Alloy | 6.96 mm | 0.274 in | Through Hole | 0.04 in | 1.02 mm | Non-Insulated | Wire | 1.45 mm | 0.057 in |

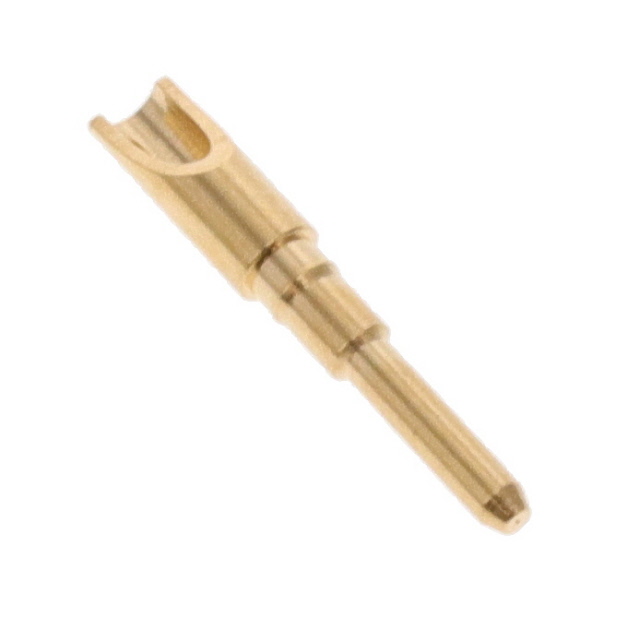

 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | PC Pin | 0.452 in | 11.48 mm | 0.072 " | 1.83 mm | Gold | Press-Fit | Brass Alloy | 6.96 mm | 0.274 in | Through Hole | 0.04 in | 1.02 mm | Non-Insulated | Wire | 1.45 mm | 0.057 in |
