EN2C4M Series

Catalog

CONN PLUG MALE 4POS GOLD CRIMP

Part	Features	Termination	Number of Positions	Material Flammability Rating	Ingress Protection	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Orientation	Primary Material	Fastening Type	Current Rating (Amps)	Insert Material	Color	Mounting Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Applications	Shielding	Backshell Material, Plating	Connector Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]

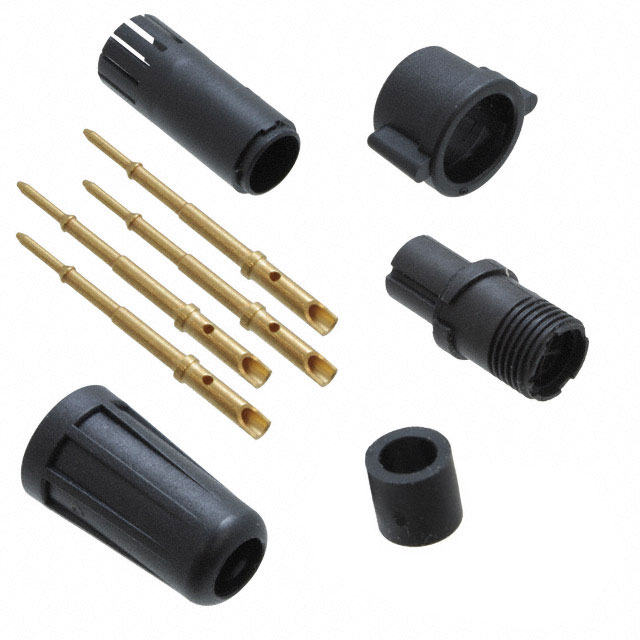

Switchcraft Inc. EN2C4M22G1W	Backshell Coupling Nut Winged	Crimp Solder Cup	4	UL94 V-0	IP66 IP67 IP68	125 VAC	2.54 mm 3.56 mm	0.1 in 0.14 in	Keyed	Plastic	Bayonet Lock	1.5 A	Elastomer	Black	Free Hanging (In-Line)	Copper Alloy	85 °C	-40 °C	Gold	Communication Systems Industrial Marine Medical	Unshielded	Thermoplastic	Male Pins Plug
Switchcraft Inc. EN2C4M22G2	Backshell Coupling Nut	Crimp Solder Cup	4	UL94 V-0	IP66 IP67 IP68	125 VAC			Keyed	Plastic	Bayonet Lock	1.5 A	Elastomer	Black	Free Hanging (In-Line)	Copper Alloy	85 °C	-40 °C	Gold	Communication Systems Industrial Marine Medical	Unshielded	Thermoplastic	Male Pins Plug	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C4M22G2W	Backshell Coupling Nut Winged	Crimp Solder Cup	4	UL94 V-0	IP66 IP67 IP68	125 VAC			Keyed	Plastic	Bayonet Lock	1.5 A	Elastomer	Black	Free Hanging (In-Line)	Copper Alloy	85 °C	-40 °C	Gold	Communication Systems Industrial Marine Medical	Unshielded	Thermoplastic	Male Pins Plug	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C4M22G3	Backshell Coupling Nut	Crimp Solder Cup	4	UL94 V-0	IP66 IP67 IP68	125 VAC			Keyed	Plastic	Bayonet Lock	1.5 A	Elastomer	Black	Free Hanging (In-Line)	Copper Alloy	85 °C	-40 °C	Gold	Communication Systems Industrial Marine Medical	Unshielded	Thermoplastic	Male Pins Plug					0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C4M22G1	Backshell Coupling Nut	Crimp Solder Cup	4	UL94 V-0	IP66 IP67 IP68	125 VAC	2.54 mm 3.56 mm	0.1 in 0.14 in	Keyed	Plastic	Bayonet Lock	1.5 A	Elastomer	Black	Free Hanging (In-Line)	Copper Alloy	85 °C	-40 °C	Gold	Communication Systems Industrial Marine Medical	Unshielded	Thermoplastic	Male Pins Plug

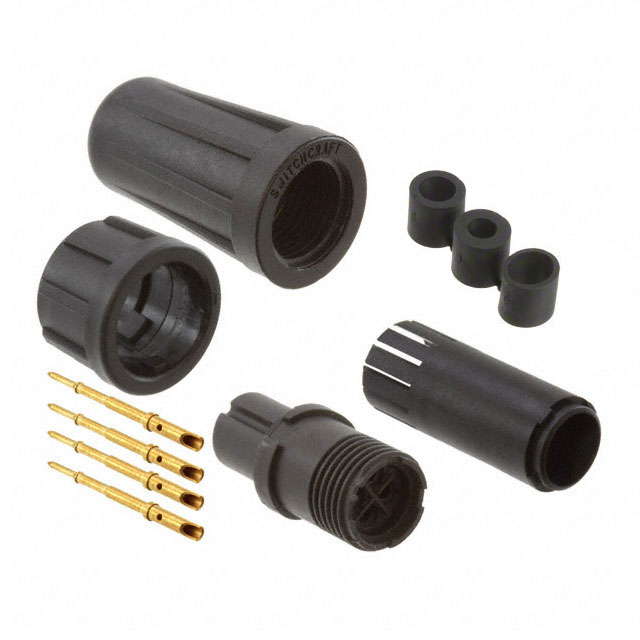

Switchcraft Inc. EN2C4M22DC	Backshell Coupling Nut	Crimp Solder Cup	4	UL94 V-0	IP66 IP67 IP68	125 VAC			Keyed	Plastic	Bayonet Lock	1.5 A	Elastomer	Black	Free Hanging (In-Line)	Copper Alloy	85 °C	-40 °C	Gold	Communication Systems Industrial Marine Medical	Unshielded	Thermoplastic	Male Pins Plug
Switchcraft Inc. EN2C4M22G3W	Backshell Coupling Nut Winged	Crimp Solder Cup	4	UL94 V-0	IP66 IP67 IP68	125 VAC			Keyed	Plastic	Bayonet Lock	1.5 A	Elastomer	Black	Free Hanging (In-Line)	Copper Alloy	85 °C	-40 °C	Gold	Communication Systems Industrial Marine Medical	Unshielded	Thermoplastic	Male Pins Plug					0.18 in	0.22 in	4.57 mm	5.59 mm
