CP-88 Series

Catalog

CONN BNC PLUG STR 50 OHM PUSH

Part	Voltage Rating	Center Contact Plating	Body Finish	Dielectric Material	Mating Cycles	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Includes	Number of Ports	Impedance	Contact Termination	Center Contact Material	Housing Color	Cable Group	Connector Style	Mounting Type	Connector Type	Fastening Type	Shield Termination	Frequency - Max [Max]

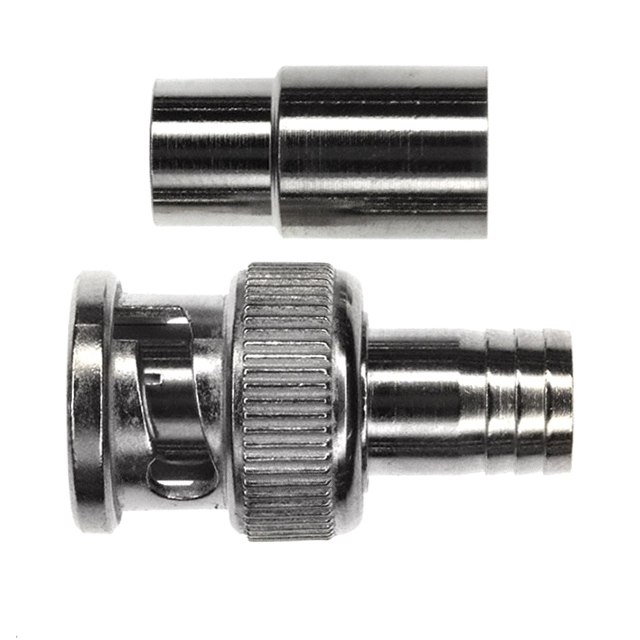

Cinch Connectivity Solutions AIM-Cambridge CP-88-5	500 V	Gold	Nickel	Polytetrafluoroethylene (PTFE)	500	Brass	-55 C	85 °C	1 Connector 1 Sleeve	2	1	50 Ohms	Push On	Brass	Silver	RG-6	BNC	Free Hanging (In-Line)	Plug Male Pin	Bayonet Lock	Crimp	4 GHz
Cinch Connectivity Solutions AIM-Cambridge CP-88-6	500 V	Gold	Nickel		500		-55 C	85 °C	1 Connector 1 Sleeve	2	1	50 Ohms	Push On		Silver	Times Fiber 2240	BNC	Free Hanging (In-Line)	Plug Male Pin	Bayonet Lock	Crimp	4 GHz

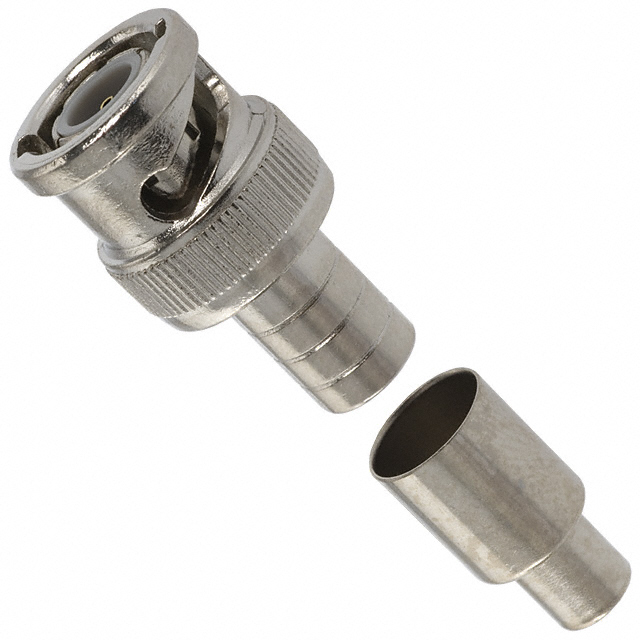

Cinch Connectivity Solutions AIM-Cambridge CP-88-4	500 V	Gold	Nickel	Polytetrafluoroethylene (PTFE)	500	Zinc	-55 C	85 °C	1 Connector 1 Sleeve	2	1	50 Ohms	Push On	Brass	Silver	RG-59-MATV	BNC	Free Hanging (In-Line)	Plug Male Pin	Bayonet Lock	Crimp	4 GHz
