J01460A3 Series
Manufacturer: Telegartner Inc
Beta
⌘K
2.2-5 STRAIGHT PLUG PUSH-PULL
| Part | Center Contact Plating | Dielectric Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination | Number of Ports | Frequency - Max [Max] | Impedance | Fastening Type | Contact Termination | Mounting Type | Connector Style | Ingress Protection | Connector Type | Housing Color | Body Material | Center Contact Material | Cable Group | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

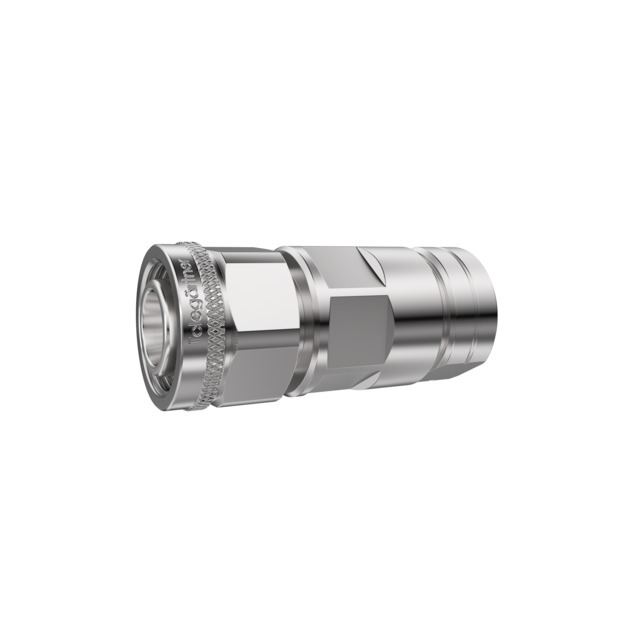

 Telegartner Inc | Silver | Polytetrafluoroethylene (PTFE) | White Bronze | 85 °C | -40 C | Clamp | 1 | 3 GHz | 50 Ohms | Threaded | Crimp Solder | Free Hanging (In-Line) | 2.2/5 | IP68 - Dust Tight Waterproof | Plug Male Pin | Silver | ||||

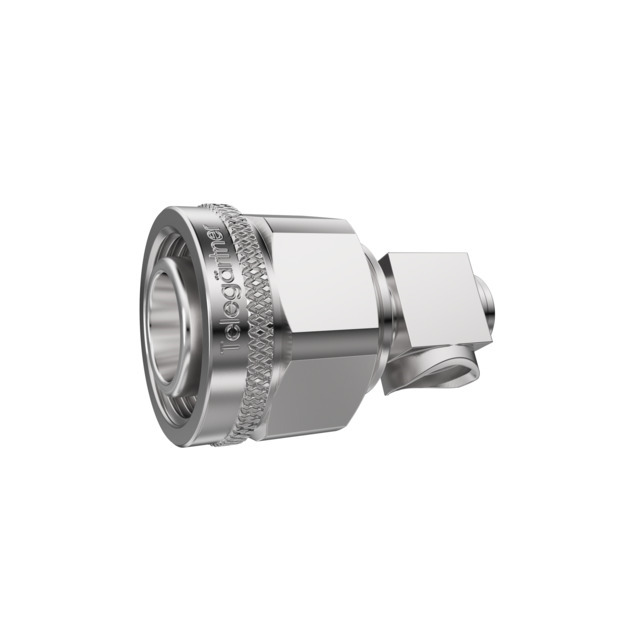

 Telegartner Inc | Silver | Polytetrafluoroethylene (PTFE) | Silver | 90 °C | -55 C | Solder | 1 | 6000 MHz | 50 Ohms | Threaded | Solder | Free Hanging (In-Line) Right Angle | 2.2/5 | IP68 - Dust Tight Waterproof | Plug Male Pin | Silver | Brass | Brass | RG-401 | |

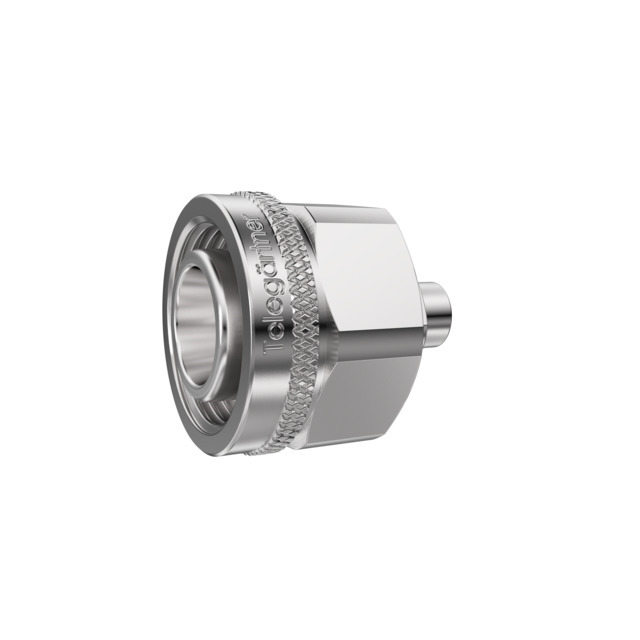

 Telegartner Inc | Silver | Polytetrafluoroethylene (PTFE) | Silver | 90 °C | -55 C | Solder | 1 | 6000 MHz | 50 Ohms | Threaded | Solder | Free Hanging (In-Line) | 2.2/5 | IP68 - Dust Tight Waterproof | Plug Male Pin | Silver | RG-402 | 1000 VDC | ||

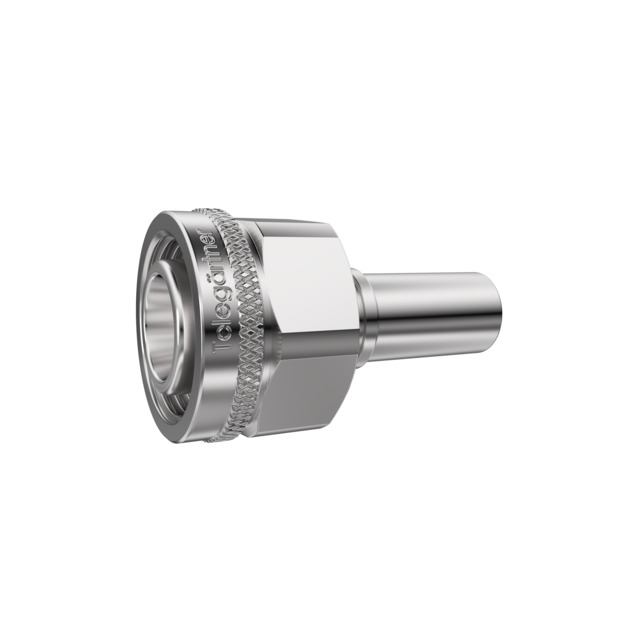

 Telegartner Inc | Silver | Polytetrafluoroethylene (PTFE) | Silver | 70 °C | -30 ░C | Crimp | 1 | 6000 MHz | 50 Ohms | Threaded | Crimp | Free Hanging (In-Line) | 2.2/5 | IP68 - Dust Tight Waterproof | Plug Male Pin | Silver | LMR-240 |
