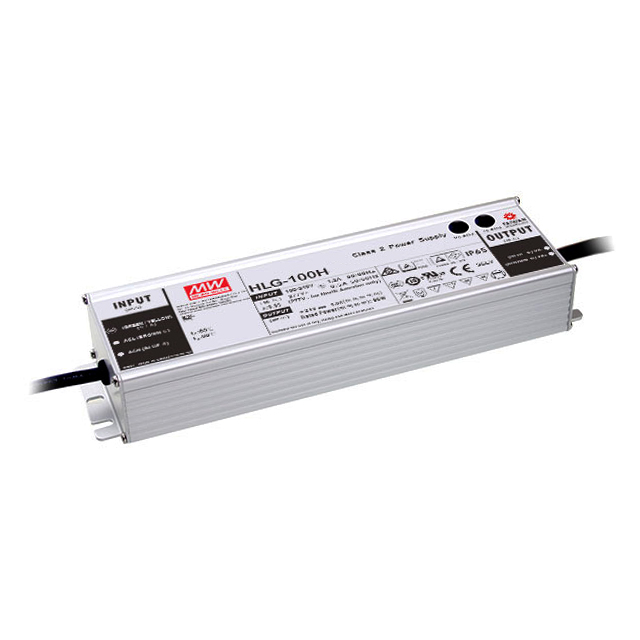

HLG-100H Series

Catalog

LED DRVR CC/CV AC/DC 22-27V 4A

Part	Mounting Type	Voltage - Isolation	Efficiency	Approval Agency	Type	Voltage - Input (Min) [Min]	Termination Style	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output [Max]	Voltage - Output [Min]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Current - Output (Max) [Max]	Topology	Ratings	Voltage - Input (Max) [Max]	Dimming	Voltage - Output
MEAN WELL USA Inc. HLG-100H-24A	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	96 W	80 °C	-40 C	27 V	22 V	OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	4 A	AC DC Converter	IP65	305 VAC
MEAN WELL USA Inc. HLG-100H-54B	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	96 W	80 °C	-40 C	54 V	27 V	OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	1.77 A	AC DC Converter	IP67	305 VAC	Analog PWM

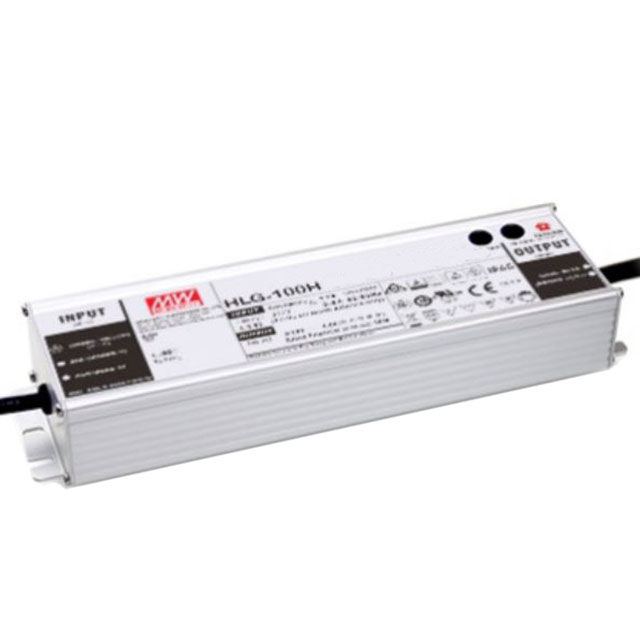

MEAN WELL USA Inc. HLG-100H-48AB	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus EAC KC PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	96 W	80 °C	-40 C			OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	2 A	AC DC Converter	IP65	305 VAC		48 V

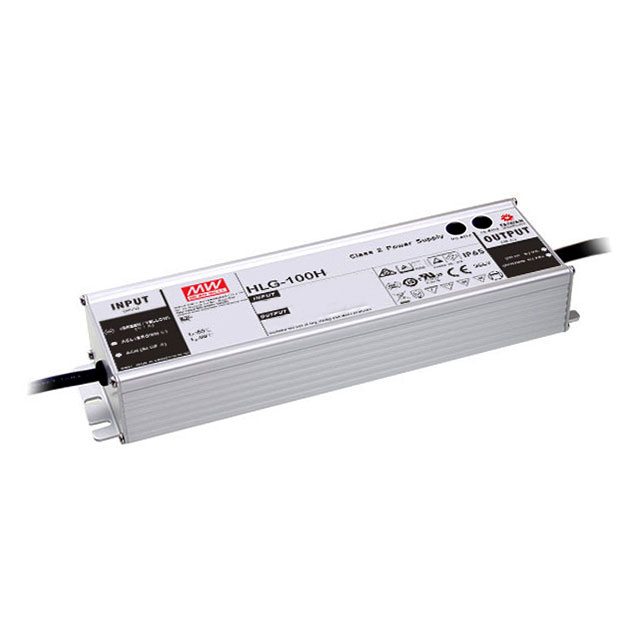

MEAN WELL USA Inc. HLG-100H-24AB	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus EAC KC PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	96 W	80 °C	-40 C			OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	4 A	AC DC Converter	IP65	305 VAC	Analog PWM	24 V
MEAN WELL USA Inc. HLG-100H-42A	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	96 W	80 °C	-40 C	46 V	38 V	OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	2.28 A	AC DC Converter	IP65	305 VAC
MEAN WELL USA Inc. HLG-100H-36	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	95 W	80 °C	-40 C	36 V	18 V	OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	2.65 A	AC DC Converter	IP67	305 VAC
MEAN WELL USA Inc. HLG-100H-42B	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	96 W	80 °C	-40 C	42 V	21 V	OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	2.28 A	AC DC Converter	IP67	305 VAC	Analog PWM
MEAN WELL USA Inc. HLG-100H-20	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	96 W	80 °C	-40 C			OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	4.8 A	AC DC Converter	IP67	305 VAC
MEAN WELL USA Inc. HLG-100H-36B	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	95 W	80 °C	-40 C	36 V	18 V	OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	2.65 A	AC DC Converter	IP67	305 VAC	Analog PWM
MEAN WELL USA Inc. HLG-100H-54	Chassis Mount	3750 VDC	93 %	CB CCC CE cURus PSE RCM TUV	Constant Current Voltage	90 VAC	Wire Leads	96 W	80 °C	-40 C	54 V	27 V	OCP OTP OVP SCP	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	1	1.77 A	AC DC Converter	IP67	305 VAC
