FHG.2K Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Current Rating (Amps)	Shell Finish	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Color	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Mating	Backshell Material, Plating	Number of Positions	Primary Material	Fastening Type	Features	Shell Material	Shielding	Insert Material	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Contact Material	Material Flammability Rating	Mounting Type	Orientation [custom]	Termination	Cable Opening [Max]	Cable Opening [Min]
LEMO FHG.2K.302.CLAC85Z	25 A	Chrome	0.319 in	8.1 mm	0.335 in	8.5 mm	Silver	39.4 µin	1 µm	Gold	Brass Chrome	2	Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	302	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G
LEMO FHG.2K.303.CYCK10	17 A	Chrome	0.378 in			0.394 in	Silver	39.4 µin	1 µm	Gold	Brass Chrome		Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	303	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G	Crimp	10 mm	9.6 mm
LEMO FHG.2K.303.CYCC85Z	17 A	Chrome	0.319 in	8.1 mm	0.335 in	8.5 mm	Silver	39.4 µin	1 µm	Gold	Brass Chrome		Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	303	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G	Crimp
LEMO FHG.2K.319.CLAC80Z	5 A	Chrome	0.299 "	7.6 mm	0.315 in	8 mm	Silver	39.4 µin	1 µm	Gold	Brass Chrome	19	Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	319	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G
LEMO FHG.2K.308.CYCC75	10 A	Chrome	0.28 in	7.1 mm	0.295 in	7.5 mm	Silver	39.4 µin	1 µm	Gold	Brass Chrome	8	Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	308	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G	Crimp
LEMO FHG.2K.319.CLAK10Z	5 A	Chrome	0.378 in			0.394 in	Silver	39.4 µin	1 µm	Gold	Brass Chrome	19	Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	319	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G		10 mm	9.6 mm
LEMO FHG.2K.310.CYCC85Z	8 A	Chrome	0.319 in	8.1 mm	0.335 in	8.5 mm	Silver	39.4 µin	1 µm	Gold	Brass Chrome	10	Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	310	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G	Crimp

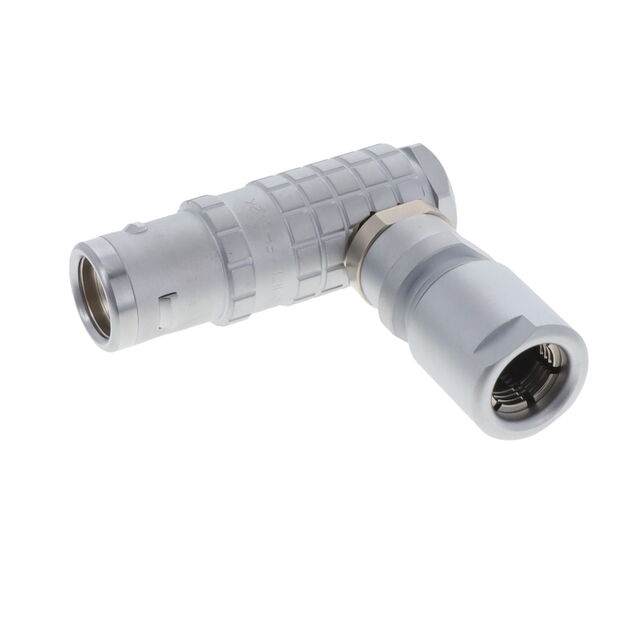

LEMO FHG.2K.308.CLAK90	10 A	Chrome	0.339 in 8.6 mm		0.354 in 9 mm		Silver	39.4 µin	1 µm	Gold	Brass Chrome	8	Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	308	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G
LEMO FHG.2K.318.CLAC85	5.5 Amps	Chrome	0.319 in	8.1 mm	0.335 in	8.5 mm	Silver	39.4 µin	1 µm	Gold	Brass Chrome	18	Metal	Push-Pull	Backshell	Brass	Shielded	Polyetheretherketone (PEEK)	318	200 °C	-55 C	Plug Male Pins	IP66 IP68	Brass	UL94 V-0	Free Hanging (In-Line) Right Angle	G
LEMO FHG.2K.308.CLAC65
