GB30S05 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

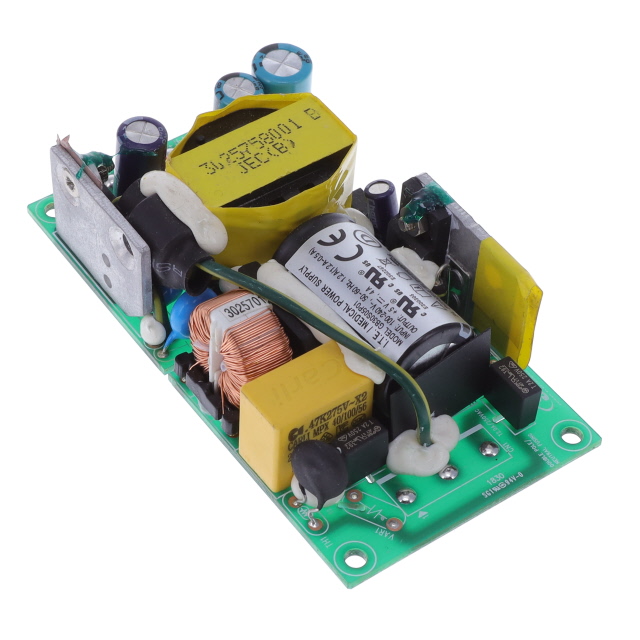

AC/DC POWER SUPPLY SINGLE-OUT 5V 4A 20W 7-PIN
| Part | Minimum Load Required | Type | Current - Output 1 | Voltage - Output 1 | Features | Number of Outputs | Approval Agency | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | Open Frame | 4 A | 5 V | Universal Input | 1 | CE cURus UL | 20 W | 70 °C | -25 °C | ITE (Commercial) Medical | Chassis Mount | 4 " | 101.6 mm | 1.9 " | 25.4 mm | 1 in | 48.3 mm | 4000 V | 100 VAC | 240 VAC | 88 % | ||
 SL POWER / Advanced Energy | Open Frame | 4 A | 5 V | Universal Input | 1 | CE cURus DEMKO | 20 W | 70 °C | -25 °C | ITE (Commercial) Medical | Chassis Mount | 3.62 " | 91.9 mm | 1.89 in | 20.9 mm | 0.82 " | 48 mm | 4000 V | 90 VAC | 264 VAC | 88 % | 60601-1; 62368-1 |
