75168 Series

Catalog

CONN HEADER R/A 7POS 2.54MM

...

Part	Insulation Material	Number of Positions	Contact Material	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Number of Rows	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Mounting Type	Contact Finish - Mating	Termination	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]

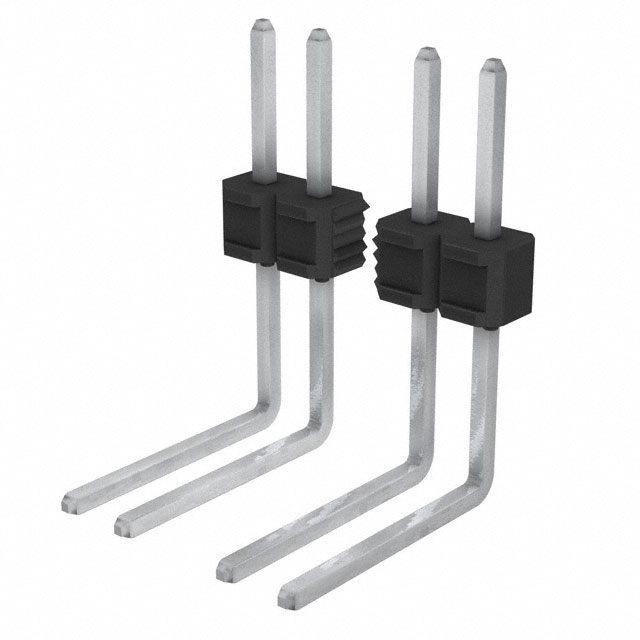

Amphenol ICC (FCI) 75168-313-07	Thermoplastic	7	Phosphor Bronze	Black	150 Áin	3.81 Ám	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle	Tin-Lead	Solder	3.46 mm	0.136 "	0.1 in	2.54 mm
Amphenol ICC (FCI) 75168-107-05LF	Thermoplastic		Phosphor Bronze	Black	30 Áin	0.76 Ám	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle	Gold or Gold GXT™	Solder	5.11 mm	0.201 in	0.1 in	2.54 mm	1.5 mm	0.059 "	Gold Gold GXT™	30 µin	0.76 µm

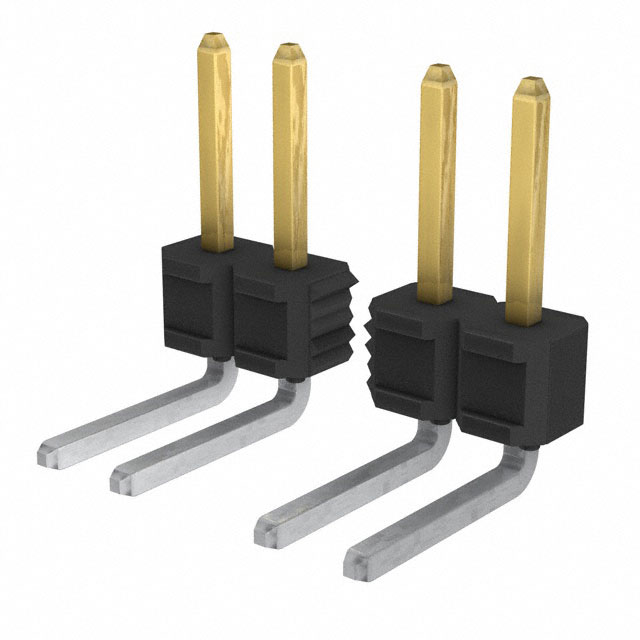

Amphenol ICC (FCI) 75168-102-08LF	Thermoplastic	8	Phosphor Bronze	Black	30 Áin	0.76 Ám	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle	Gold GXT™	Solder	5.11 mm	0.201 in	0.1 in	2.54 mm
Amphenol ICC (FCI) 75168-114-36	Thermoplastic	36	Phosphor Bronze	Black	30 Áin	0.76 Ám	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle	Gold GXT™	Solder			0.1 in	2.54 mm						6 mm	0.236 "
Amphenol ICC (FCI) 75168-313-36	Thermoplastic	36	Phosphor Bronze	Black	150 Áin	3.81 Ám	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle	Tin-Lead	Solder	3.46 mm	0.136 "	0.1 in	2.54 mm

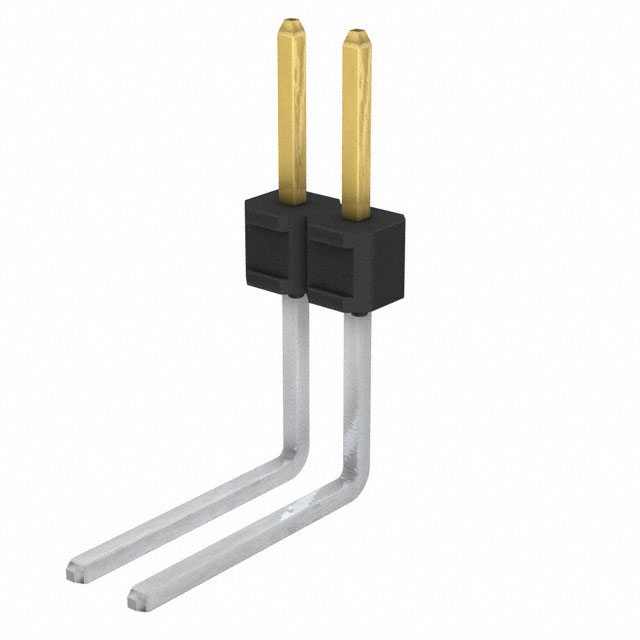

Amphenol ICC (FCI) 75168-113-02LF	Thermoplastic	2	Phosphor Bronze	Black	30 Áin	0.76 Ám	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle	Gold GXT™	Solder	3.46 mm	0.136 "	0.1 in	2.54 mm
Amphenol ICC (FCI) 75168-308-03LF	Thermoplastic		Phosphor Bronze	Black	78.7 µin	2 µm	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle		Solder	7.65 mm	0.301 in	0.1 in	2.54 mm
Amphenol ICC (FCI) 75168-102-36LF	Thermoplastic	36	Phosphor Bronze	Black	30 Áin	0.76 Ám	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle	Gold GXT™	Solder	5.11 mm	0.201 in	0.1 in	2.54 mm

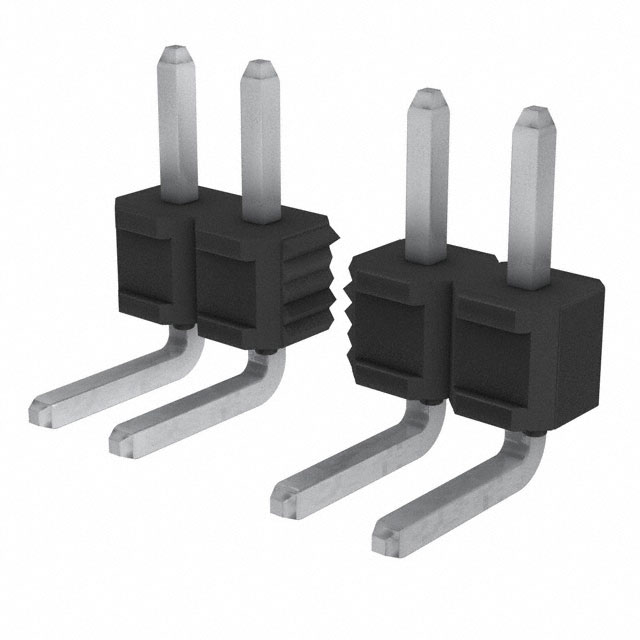

Amphenol ICC (FCI) 75168-327-08LF	Thermoplastic	8	Phosphor Bronze	Black	78.7 µin	2 µm	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.14 in	3.56 mm	Square	Through Hole Right Angle		Solder	3.3 mm	0.13 in	0.1 in	2.54 mm

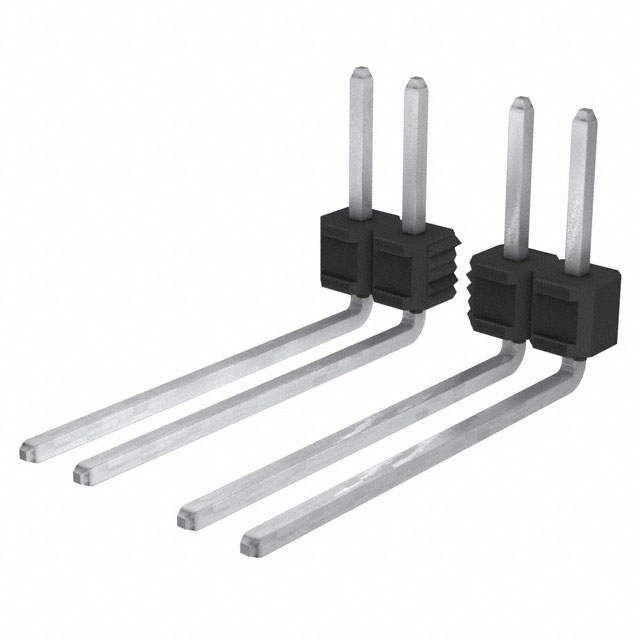

Amphenol ICC (FCI) 75168-306-05	Thermoplastic		Phosphor Bronze	Black	150 Áin	3.81 Ám	Unshrouded	Male Pin	UL94 V-0	All	Push-Pull	1	Header	0.225 in	5.72 mm	Square	Through Hole Right Angle	Tin-Lead	Solder			0.1 in	2.54 mm						15.27 mm	0.601 in
