2823404 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

13P,2MM,PL HDR,SRRT,2.8,0.38AU,T

Part	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Height	Insulation Height	Termination	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Number of Positions	Contact Shape	Material Flammability Rating	Contact Finish - Mating	Connector Type	Mounting Type	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Contact Material	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Style	Insulation Color
TE Connectivity Raychem Cable Protection 1-2823404-3	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1	13	Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black
TE Connectivity Raychem Cable Protection 2823404-6	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1	6	Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black

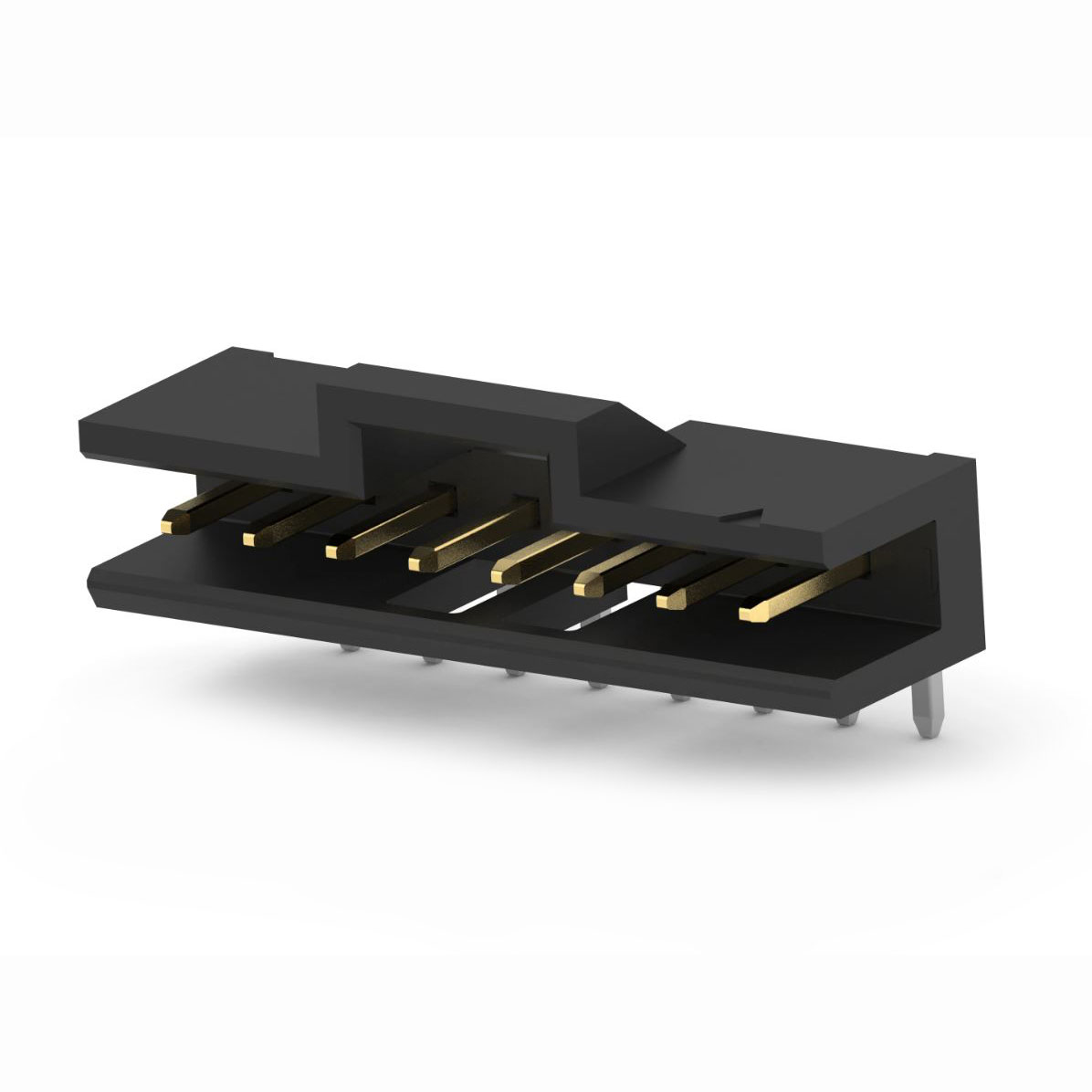

TE Connectivity Raychem Cable Protection 2823404-8	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1	8	Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black

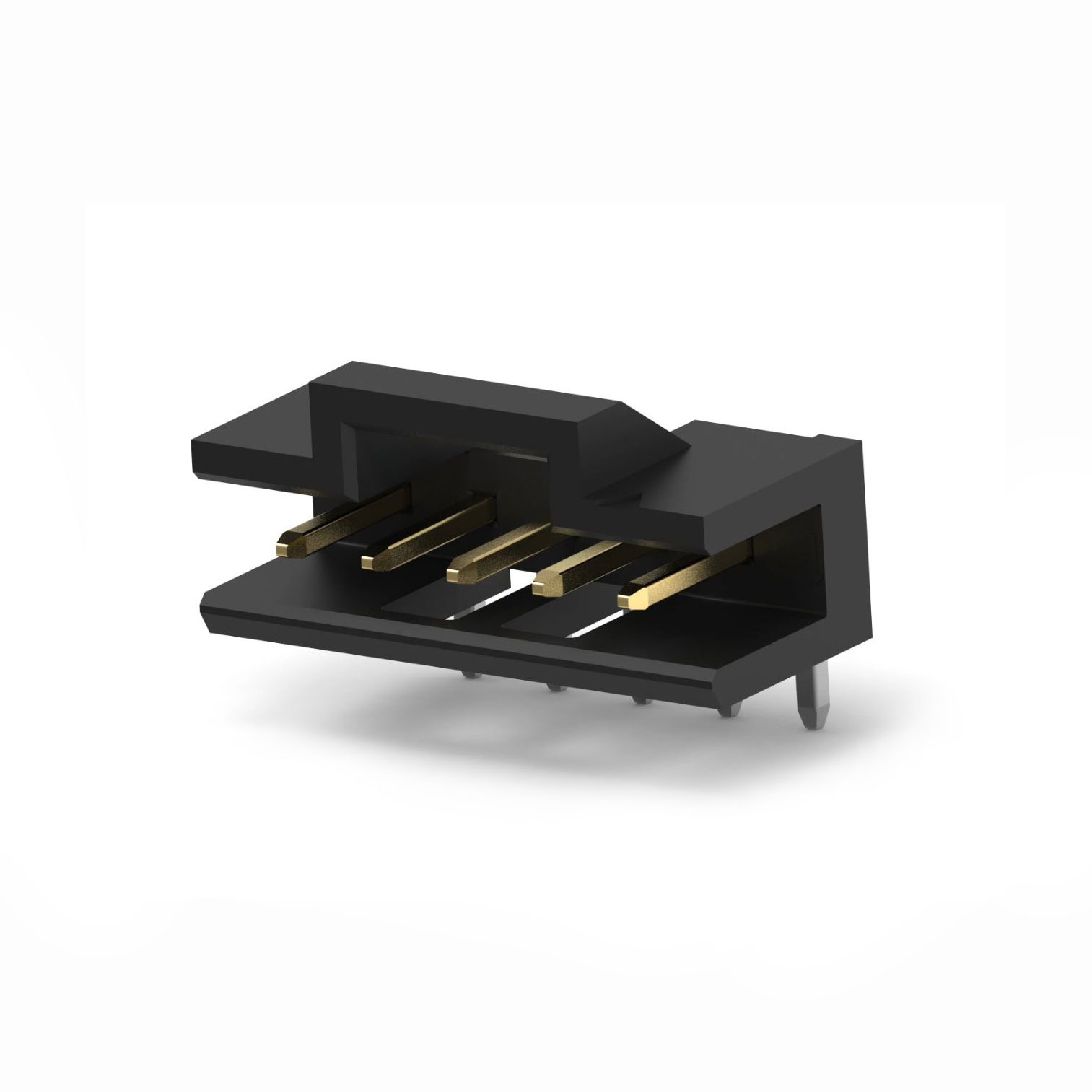

TE Connectivity Raychem Cable Protection 2823404-5	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1		Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black

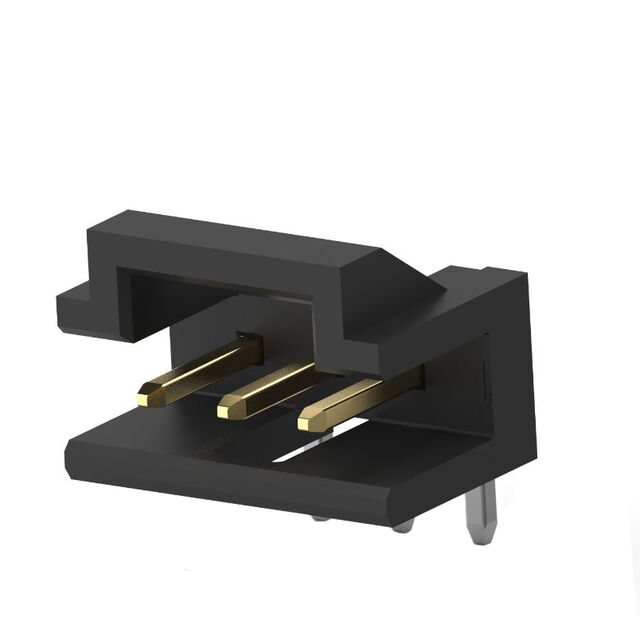

TE Connectivity Raychem Cable Protection 2823404-3	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1		Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black
TE Connectivity Raychem Cable Protection 2823404-7	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1	7	Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black
TE Connectivity Raychem Cable Protection 2823404-9	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1	9	Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black

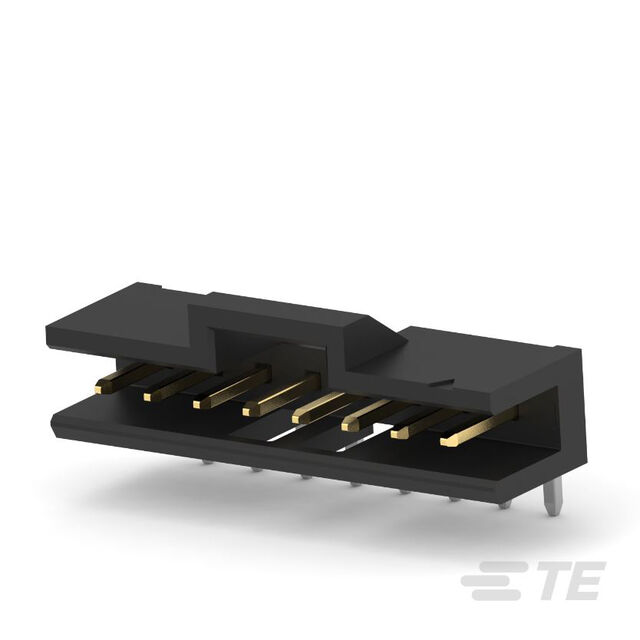

TE Connectivity Raychem Cable Protection 1-2823404-0	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1	10	Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black
TE Connectivity Raychem Cable Protection 1-2823404-5	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1	15	Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black
TE Connectivity Raychem Cable Protection 1-2823404-2	2 A	4 mm	0.157 in	Male Pin	0.303 in	7.7 mm	Solder	All	125 °C	-40 °C	15 µin	0.38 µm	1	12	Square	UL94 V-0	Gold	Header	Through Hole Right Angle	Thermoplastic	157.5 Áin	4 Ám	Latch Holder	Tin	0.11 in	2.8 mm	Shrouded - 2 Wall	Phosphor Bronze	125 VAC	0.079 in	2 mm	Board to Board Cable	Black
