GR-2023 Series
Manufacturer: CW Industries
Beta
⌘K

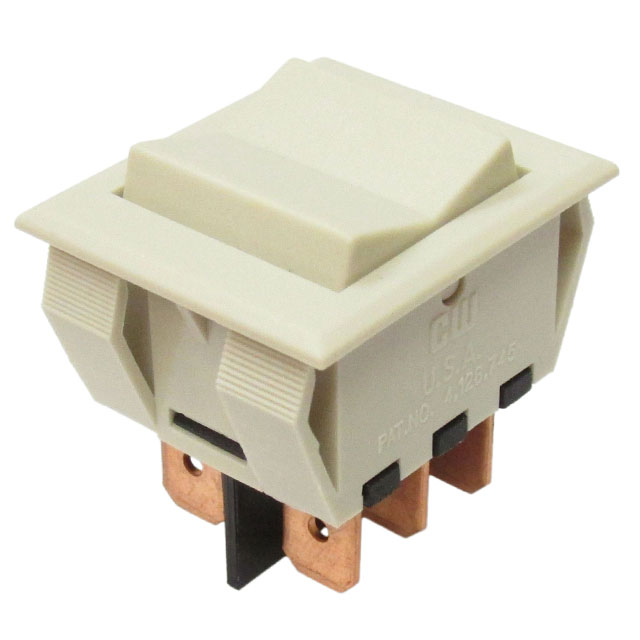

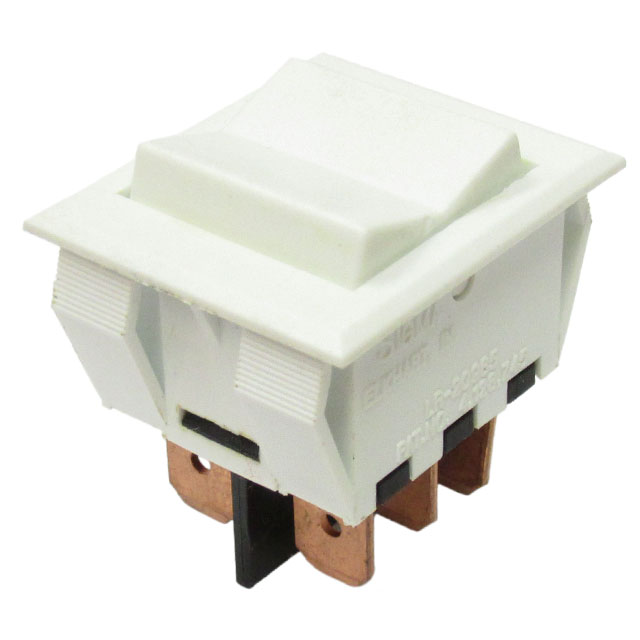

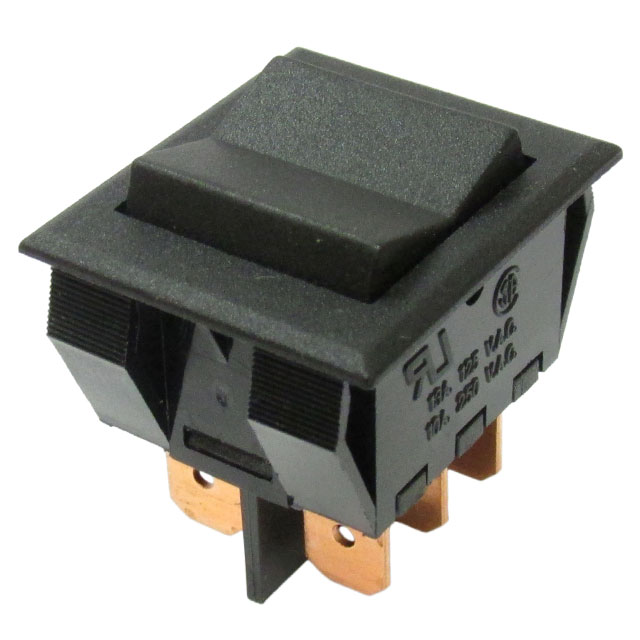

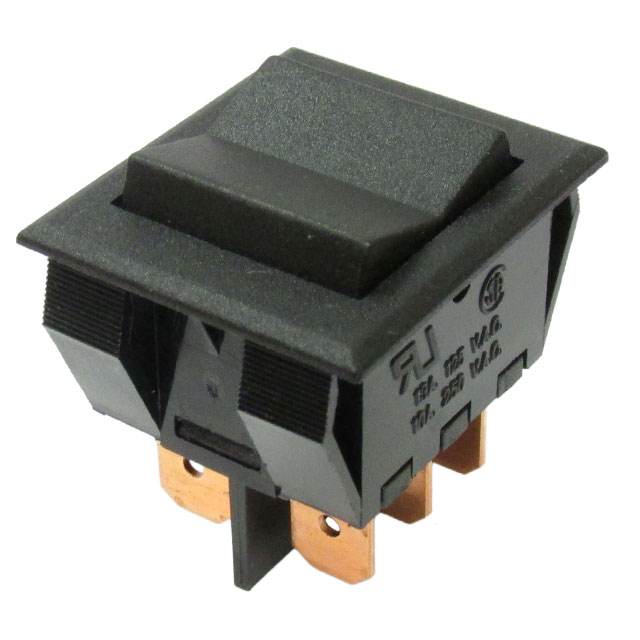

SWITCH ROCKER DPDT 13A 125V
| Part | Electrical Life | Mechanical Life | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Features | Actuator Type | Voltage Rating - AC | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Actuator Marking | Termination Style | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 25000 Steps | 25000 Steps | DPDT | -20 ░C | 105 ░C | Terminal Barriers | Concave | 125 V | 13 A | On-Off-On | 22.15 mm | 27.2 mm | Panel Mount Snap-In | No Marking | Quick Connect - 0.250" (6.3mm) | |
 CW Industries | 25000 Steps | 25000 Steps | DPDT | -20 ░C | 105 ░C | Terminal Barriers | Concave | 125 V | 16 A | On-Off-On | 22.15 mm | 27.2 mm | Panel Mount Snap-In | No Marking | Quick Connect - 0.250" (6.3mm) | Black |
 CW Industries | 25000 Steps | 25000 Steps | DPDT | -20 ░C | 105 ░C | Terminal Barriers | Concave | 125 V | 8 A | On-Off-Mom | 22.15 mm | 27.2 mm | Panel Mount Snap-In | No Marking | Quick Connect - 0.250" (6.3mm) | White |
 CW Industries | 25000 Steps | 25000 Steps | DPDT | -20 ░C | 105 ░C | Terminal Barriers | Concave | 125 V | 13 A | On-Off-Mom | 22.15 mm | 27.2 mm | Panel Mount Snap-In | No Marking | Quick Connect - 0.250" (6.3mm) | Black |
 CW Industries | 25000 Steps | 25000 Steps | DPDT | -20 ░C | 105 ░C | Terminal Barriers | Concave | 125 V | 13 A | On-Off-On | 22.15 mm | 27.2 mm | Panel Mount Snap-In | No Marking | Quick Connect - 0.250" (6.3mm) | Black |
 CW Industries | DPDT | -20 ░C | 105 ░C | Concave | 125 V | 13 A | Mom-Off-Mom | 22.15 mm | 27.2 mm | Panel Mount Snap-In | No Marking | Quick Connect - 0.250" (6.3mm) | Black |
