APD-1 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CONN RCPT HSNG MALE 2POS PNL MT
| Part | Connector Type | Type | Shielding | Insert Material [custom] | Note | Number of Positions | Ingress Protection | Orientation [custom] | Mounting Type | Fastening Type | Contact Shape | Shell Material | Housing Color | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Includes | Contact Size | Insert Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

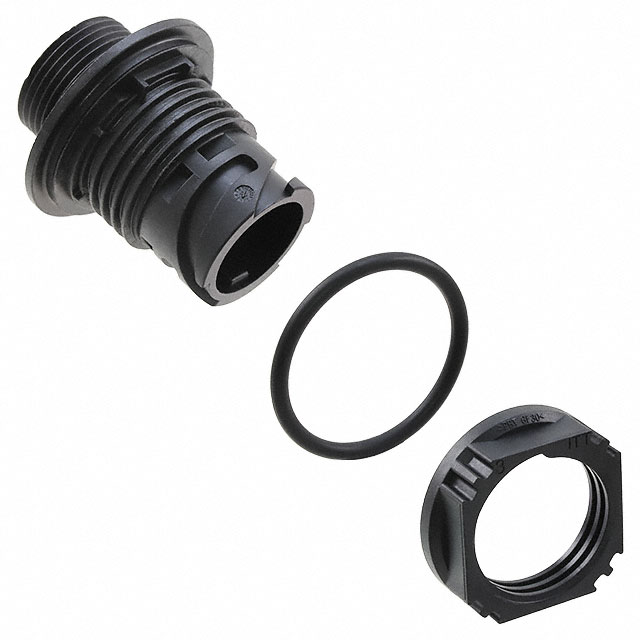

ITT Cannon, LLC | Receptacle Housing | For Male Pins | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 2 | IP67 - Dust Tight Waterproof | 1 | Panel Mount | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Black | Crimp | 125 °C | -40 C | Bulkhead | ||||

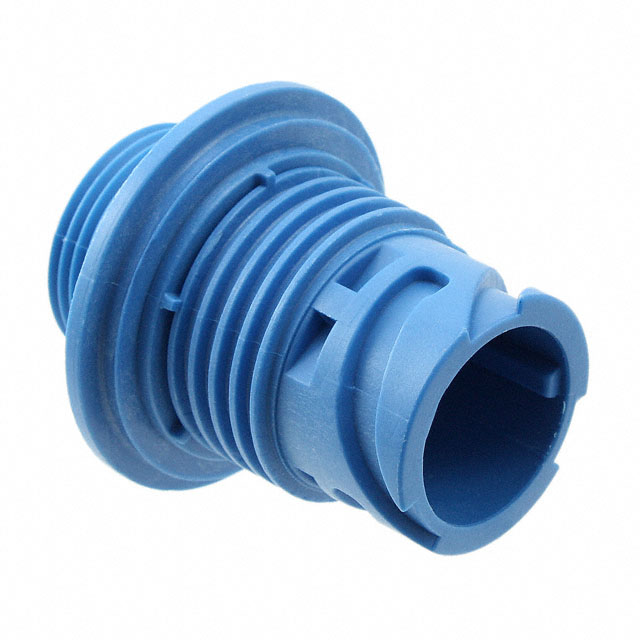

 ITT Cannon, LLC | Receptacle Housing | For Male Pins | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 2 | IP67 - Dust Tight Waterproof | 1 | Panel Mount | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Blue | Crimp | 125 °C | -40 C | Bulkhead - Front Side Nut | 1 Connector 1 Nut 1 O-Ring | |||

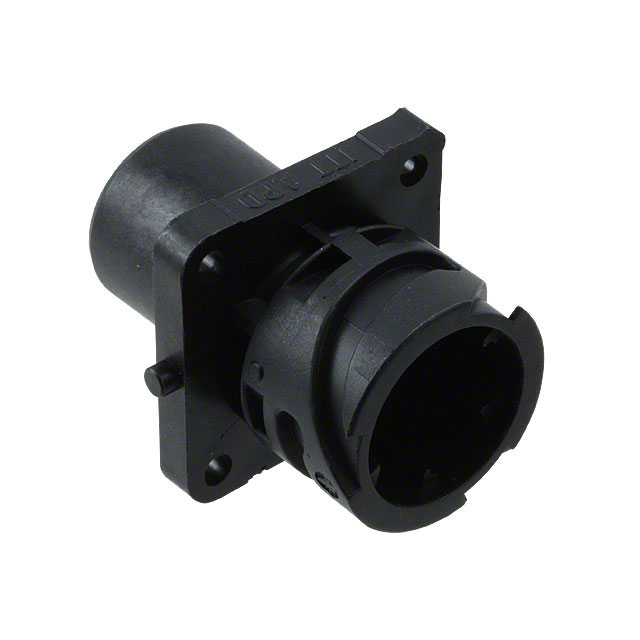

 ITT Cannon, LLC | Receptacle Housing | For Male Pins | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 7 | IP67 - Dust Tight Waterproof | 1 | Panel Mount | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Black | Crimp | 125 °C | -40 C | Flange | 1.6 mm | |||
ITT Cannon, LLC | Receptacle Housing | For Male Pins | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 7 | IP67 - Dust Tight Waterproof | 1 | Panel Mount | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Black | Crimp | 125 °C | -40 C | Flange | 1.6 mm | |||
ITT Cannon, LLC | Receptacle Housing | For Male Pins | Unshielded | Contacts Not Included | 37 | IP67 - Dust Tight Waterproof | 1 | Panel Mount | Bayonet Lock | Circular | Glass Filled Nylon 6/6 Polyamide (PA66) | Black | Crimp | 125 °C | -40 C | Flange | 1 Connector 1 O-Ring | Nylon 6/6 Polyamide (PA66) | |||

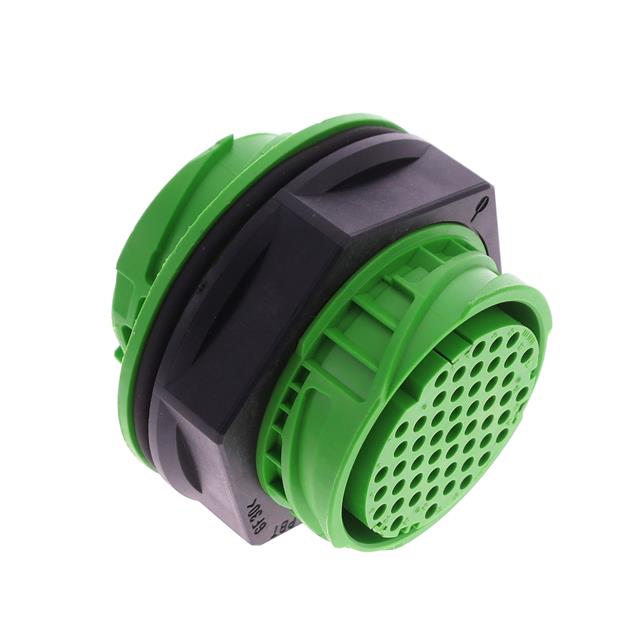

 ITT Cannon, LLC | Receptacle Housing | For Female Sockets | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 51 | IP67/IP69K | 1 | Panel Mount | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Green | Crimp | 125 °C | -40 C | Bulkhead - Front Side Nut | 1 Connector 1 Nut 1 O-Ring | |||

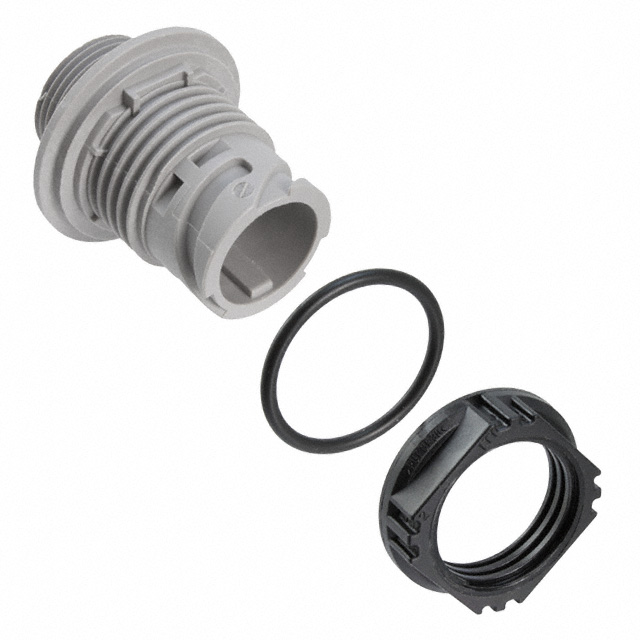

 ITT Cannon, LLC | Receptacle Housing | For Male Pins | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 2 | IP67 - Dust Tight Waterproof | 1 | Panel Mount | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Gray | Crimp | 125 °C | -40 C | Bulkhead - Front Side Nut | 1 Connector 1 Nut 1 O-Ring | |||

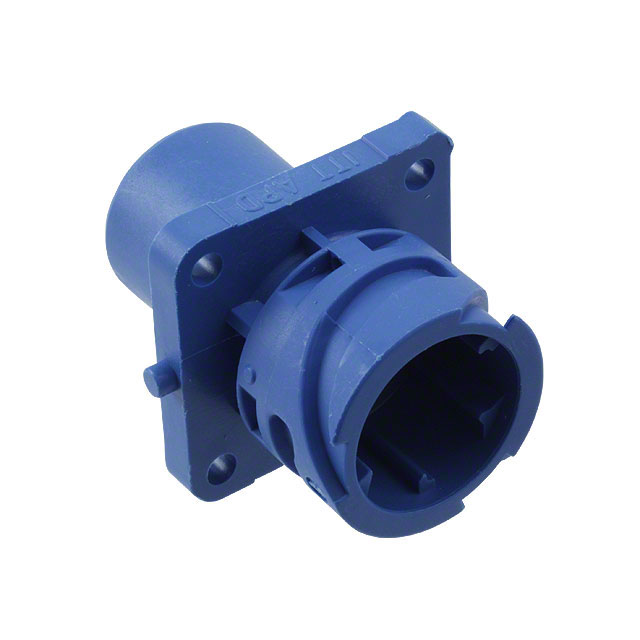

 ITT Cannon, LLC | Receptacle Housing | For Male Pins | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 7 | IP67 - Dust Tight Waterproof | 1 | Panel Mount | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Blue | Crimp | 125 °C | -40 C | Flange | 1.6 mm | |||

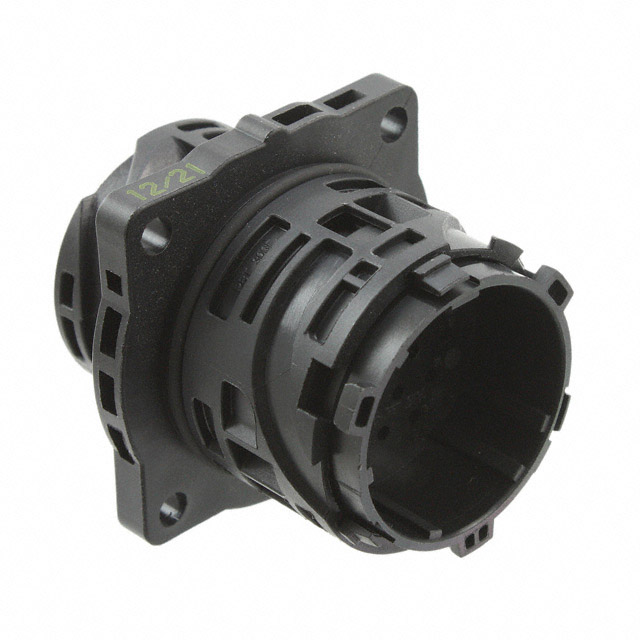

 ITT Cannon, LLC | Receptacle Housing | For Male Pins | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 19 | IP67 - Dust Tight Waterproof | 1 | Panel Mount | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Black | Crimp | 125 °C | -40 C | Flange | 1 Connector 1 O-Ring | |||
 ITT Cannon, LLC | Plug Housing | For Female Sockets | Unshielded | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 2 | IP67 - Dust Tight Waterproof | 1 | Free Hanging (In-Line) | Bayonet Lock | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Black | Crimp | 125 °C | -40 C | Coupling Nut |
