9439MN Series
Manufacturer: Belden Inc.
Beta
⌘K

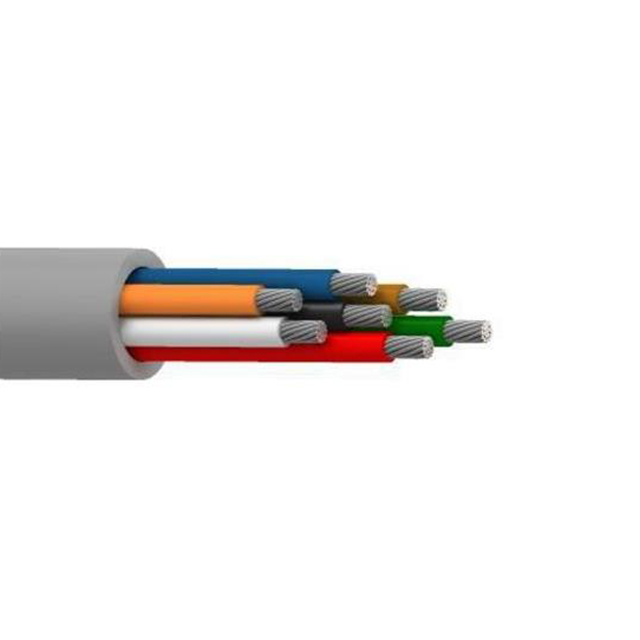

CABLE 7COND 20AWG BLUE
| Part | Usage | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Material | Voltage | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Audio Control Instrumentation | 304.8 m | 1000 ft | 26 | 34 AWG | 7 | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 0.406 mm | 0.016 in | 20 AWG | Copper Tinned | UL Style 2937 | 0.203 in | 5.16 mm | Blue | 80 °C | -20 ░C | Polypropylene (PP) | ||
Belden Inc. | Audio Control Instrumentation | 26 | 34 AWG | 7 | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 0.406 mm | 0.016 in | 20 AWG | Copper Tinned | UL Style 2937 | 0.203 in | 5.16 mm | Gray | 80 °C | -20 ░C | Polypropylene (PP) | 100 ft | 30.5 m | ||
Belden Inc. | Audio Control Instrumentation | 26 | 34 AWG | 7 | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 0.406 mm | 0.016 in | 20 AWG | Copper Tinned | UL Style 2937 | 0.203 in | 5.16 mm | Blue | 80 °C | -20 ░C | Polypropylene (PP) | 100 ft | 30.5 m |
