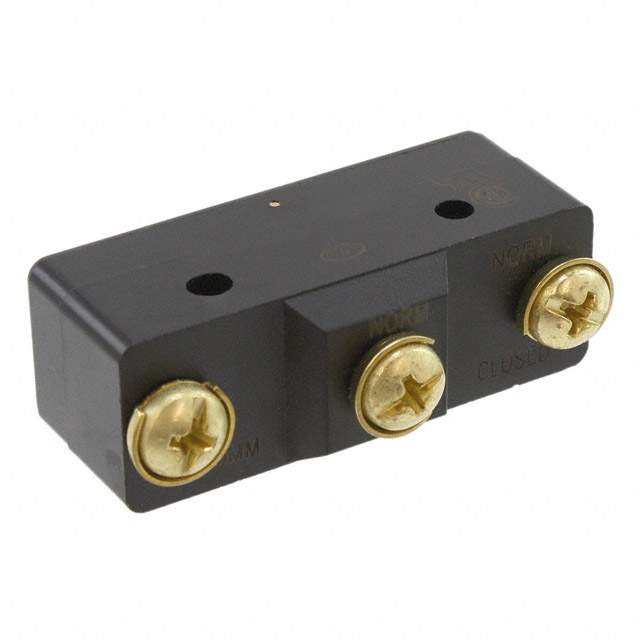

BZ-R24 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Pretravel | Pretravel | Differential Travel | Differential Travel | Termination Style | Circuit | Current Rating (Amps) | Operating Force [Min] | Operating Force [Max] | Operating Position | Operating Position | Switch Function | Voltage Rating - AC | Mechanical Life | Release Force | Actuator Type | Overtravel | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Chassis Mount | 85 °C | -55 °C | 0.012 in | 0.3 mm | 0.013 mm | 0.0005 in | Screw Terminal | SPDT | 15 A | 198 gf | 255 gf | 0.625 in | 15.9 mm | On-Mom | 125 V | 20000000 Cycles | 113 gf | Round (Pin Plunger) | 0.13 mm | 0.005 in |
