AIK12N04 Series
Manufacturer: Altech Corporation
Beta
⌘K

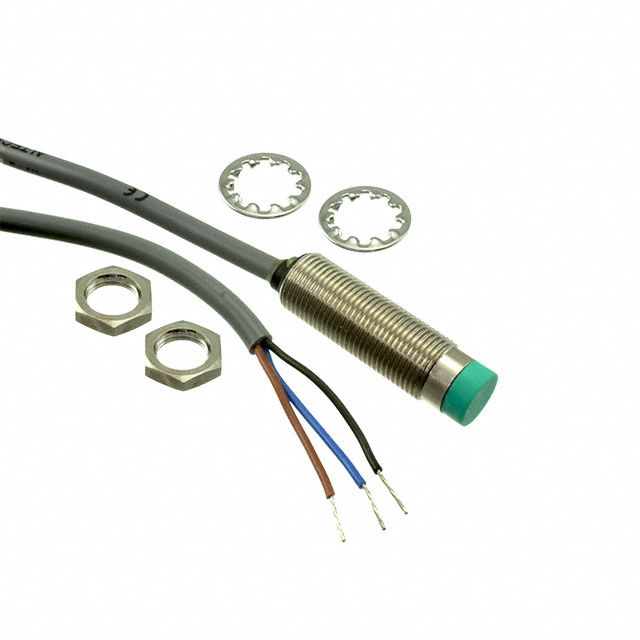

SENSOR PROX INDUCTIVE 4MM CYLIND
| Part | Package / Case | Sensing Distance | Sensing Distance | Termination Style | Indicator [custom] | Ingress Protection | Sensor Type | Material - Body | Response Frequency | Output Type | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | Cylinder Threaded - M12 | 4 mm | 0.157 in | Cable Leads | LED | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 4 NEMA 6 | Inductive | Nickel-Plated Brass | 1 kHz | PNP-NO 3-Wire | Shielded | 70 °C | -25 °C | 30 VDC | 10 VDC |
Altech Corporation | Cylinder Threaded - M12 | 4 mm | 0.157 in | Connector | LED | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 4 NEMA 6 | Inductive | Nickel-Plated Brass | 1 kHz | PNP-NO 3-Wire | Shielded | 70 °C | -25 °C | 30 VDC | 10 VDC |
Altech Corporation | Cylinder Threaded - M12 | 4 mm | 0.157 in | Cable Leads | LED | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 4 NEMA 6 | Inductive | Nickel-Plated Brass | 1 kHz | PNP-NO 3-Wire | Shielded | 70 °C | -25 °C | 30 VDC | 10 VDC |
