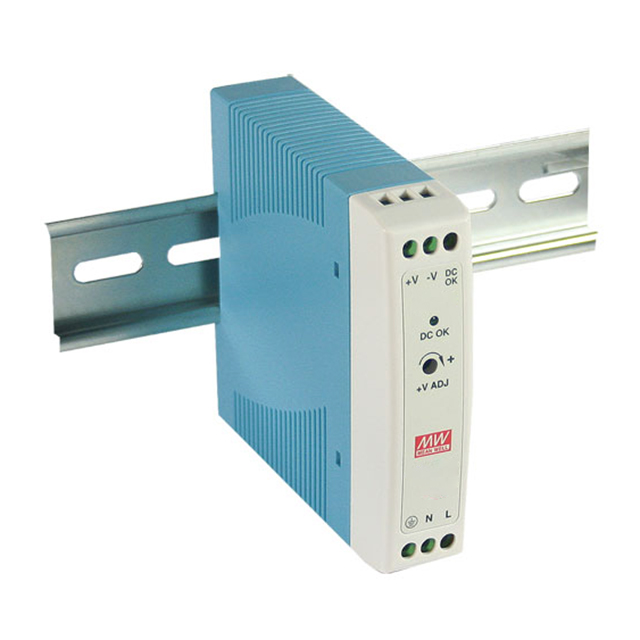

MDR-20 Series

Catalog

AC/DC DIN RAIL SUPPLY 15V 20W

Part	Approval Agency	Voltage - Output 1	DC Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Features	AC Voltage - Input [Max]	AC Voltage - Input [Min]	DC Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications
MEAN WELL USA Inc. MDR-20-15	CB CE cULus TUV	15 V	370 V	81 %	1	Adjustable Output Universal Input	264 VAC	85 VAC	120 V	20 W	70 °C	-20 °C	AC or DC	1.34 A	3000 V	90 mm	100 mm	0.89 in	3.54 "	3.94 in	22.5 mm	Industrial ITE (Commercial)
MEAN WELL USA Inc. MDR-20-12	CB CE cULus TUV	12 V	370 V	80 %	1	Adjustable Output Universal Input	264 VAC	85 VAC	120 V	20 W	70 °C	-20 °C	AC or DC	1.67 A	3000 V	90 mm	100 mm	0.89 in	3.54 "	3.94 in	22.5 mm	Industrial ITE (Commercial)
MEAN WELL USA Inc. MDR-20-5	CB CE cULus TUV	5 V	370 V	76 %	1	Adjustable Output Universal Input	264 VAC	85 VAC	120 V	15 W	70 °C	-20 °C	AC or DC	3 A	3000 V	90 mm	100 mm	0.89 in	3.54 "	3.94 in	22.5 mm	Industrial ITE (Commercial)
MEAN WELL USA Inc. MDR-20-24	CB CE cULus TUV	24 V	370 V	84 %	1	Adjustable Output Universal Input	264 VAC	85 VAC	120 V	24 W	70 °C	-20 °C	AC or DC	1 A	3000 V	90 mm	100 mm	0.89 in	3.54 "	3.94 in	22.5 mm	Industrial ITE (Commercial)
