RA111C1 Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER SPST 16A 125V

Part	Electrical Life	Actuator Marking	Termination Style	Illumination Voltage (Nominal)	Mounting Type	Switch Function	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Circuit	Current Rating (Amps)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Actuator Type	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Illumination Type, Color	Features	Ingress Protection

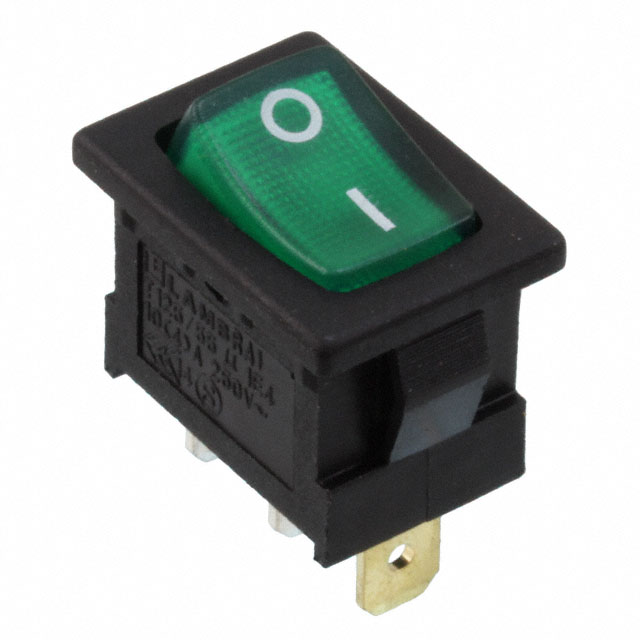

E-Switch RA111C1021-136	10000 Cycles	O -	Quick Connect	125 VAC	Panel Mount Snap-In	On-Off	125 V	55 °C	-20 ░C	cULus	SPST	16 A	19.4 mm	13.1 mm	Green	Concave (Curved) - Illuminated	Neon	Green

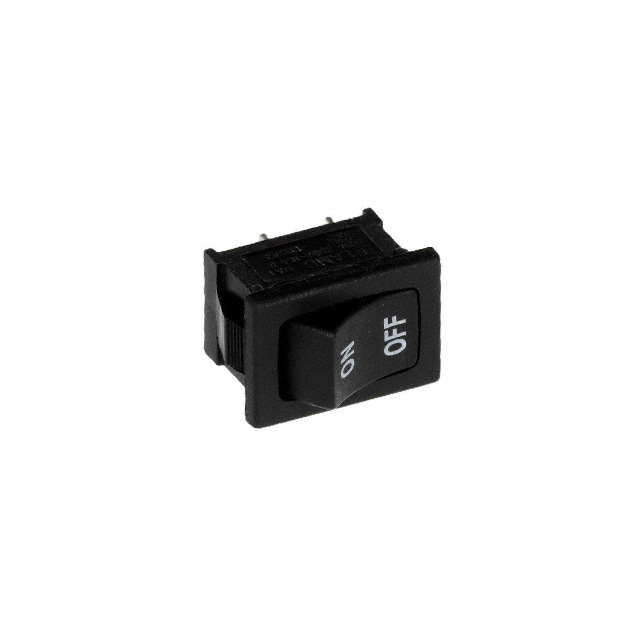

E-Switch RA111C1123	10000 Cycles	ON OFF	Quick Connect		Panel Mount Snap-In	On-Off	125 V	55 °C	-20 ░C	cULus	SPST	16 A	19.4 mm	13.1 mm	Black	Concave (Curved)

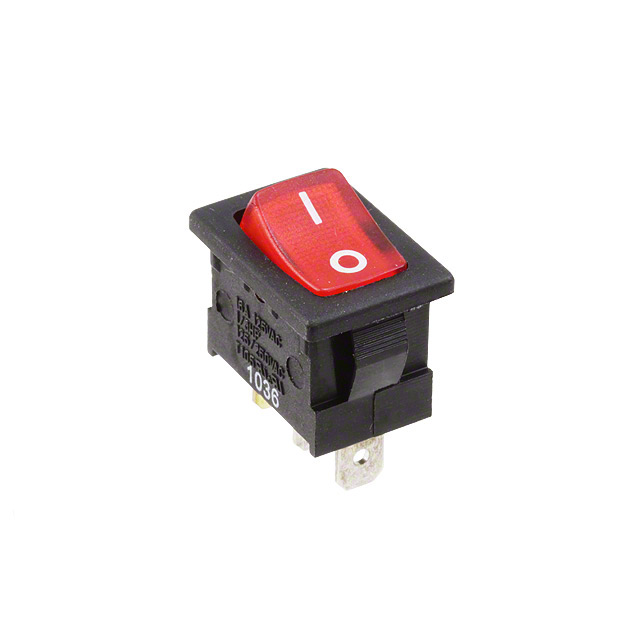

E-Switch RA111C1021-116	10000 Cycles	O -	Quick Connect	125 VAC	Panel Mount Snap-In	On-Off	125 V	55 °C	-20 ░C	cULus	SPST	16 A	19.4 mm	13.1 mm	Red	Concave (Curved) - Illuminated			Neon Red
E-Switch RA111C1181	10000 Cycles	O -	Quick Connect		Panel Mount Snap-In	On-Off	125 V	55 °C	-20 ░C	cULus	SPST	16 A	19.4 mm	13.1 mm	Black	Concave (Curved)

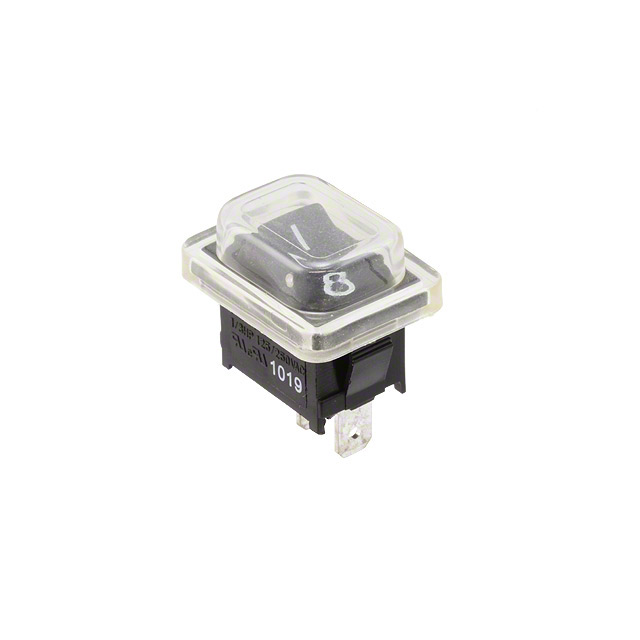

E-Switch RA111C1121/ACC-P01	10000 Cycles	O -	Quick Connect		Panel Mount Snap-In	On-Off	125 V	55 °C	-20 ░C	cULus	SPST	16 A	19.4 mm	13.1 mm	Black	Concave (Curved)				Sealing Boot	IP54 - Dust Protected Water Resistant
E-Switch RA111C1121	10000 Cycles	O -	Quick Connect		Panel Mount Snap-In	On-Off	125 V	55 °C	-20 ░C	cULus	SPST	16 A	19.4 mm	13.1 mm	Black	Concave (Curved)

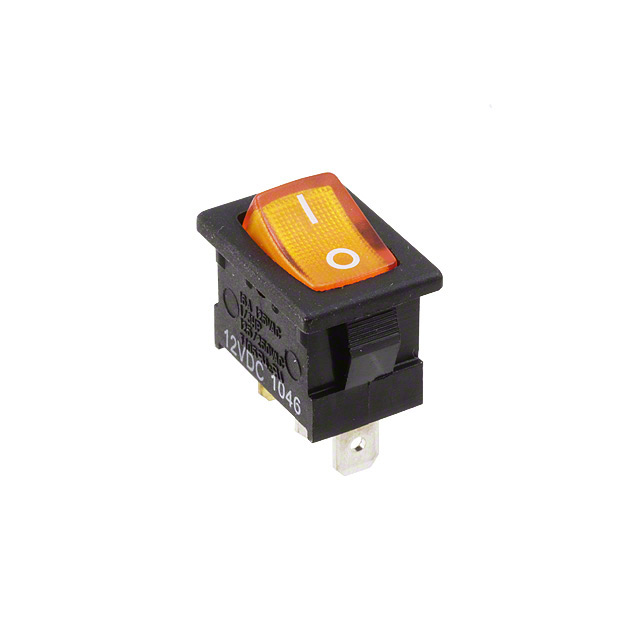

E-Switch RA111C1021-124	10000 Cycles	O -	Quick Connect	12 VDC	Panel Mount Snap-In	On-Off	125 V	55 °C	-20 ░C	cULus	SPST	16 A	19.4 mm	13.1 mm	Amber	Concave (Curved) - Illuminated			Amber Incandescent

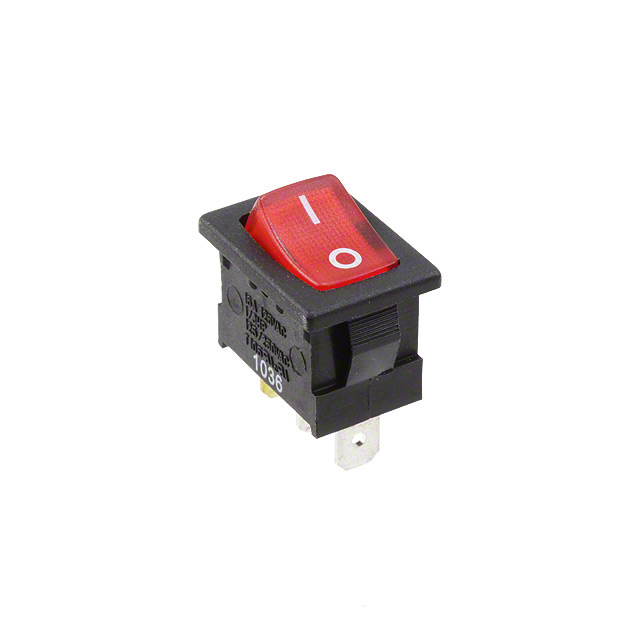

E-Switch RA111C1021-117	10000 Cycles	O -	Quick Connect	250 VAC	Panel Mount Snap-In	On-Off	125 V	55 °C	-20 ░C	cULus	SPST	16 A	19.4 mm	13.1 mm	Red	Concave (Curved) - Illuminated			Neon Red
