8723 Series
Manufacturer: Belden Inc.
Beta
⌘K

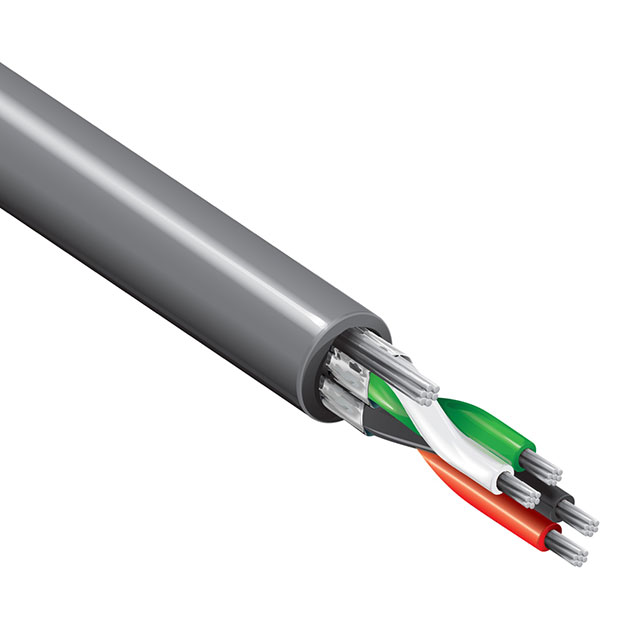

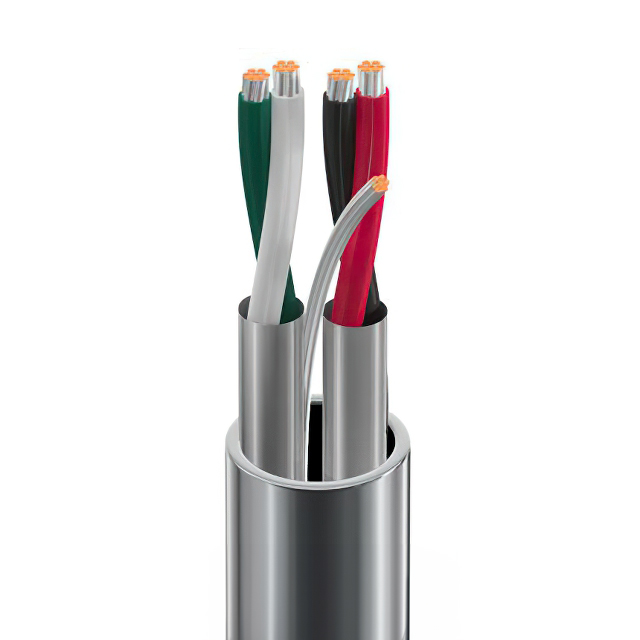

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 2 PAIR, 22 AWG, 100 FT, 30.48 M
| Part | Shield Coverage | Shield Material | Conductor Material | Jacket (Insulation) Material | Wire Gauge | Conductor Insulation | Jacket Color | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Cable Type | Usage | Voltage | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | Polypropylene (PP) | Chrome | Foil | 0.02 " | 0.508 mm | 4 | 100 ft | 30.5 m | 30 AWG | 7 | 4.06 mm | 0.16 in | Drain Wire | Multi-Pair | |||||
 Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | Polypropylene (PP) | Chrome | Foil | 0.02 " | 0.508 mm | 4 | 2000 ft | 609.6 m | 30 AWG | 7 | 4.06 mm | 0.16 in | Multi-Pair | Audio Control Instrumentation | 300 VDC | ||||
Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | Polypropylene (PP) | Chrome | Foil | 0.02 " | 0.508 mm | 4 | 30 AWG | 7 | 4.06 mm | 0.16 in | Multi-Pair | Audio Control Instrumentation | 300 VDC | 3048 m | 10000 ft | ||||
Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | Polypropylene (PP) | Chrome | Foil | 0.02 " | 0.508 mm | 4 | 30 AWG | 7 | 4.06 mm | 0.16 in | Multi-Pair | Audio Control Instrumentation | 300 VDC | 1000 m | 3281 ' | ||||
 Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | Polypropylene (PP) | Chrome | Foil | 0.02 " | 0.508 mm | 4 | 30 AWG | 7 | 4.06 mm | 0.16 in | Multi-Pair | Audio Control Instrumentation | 300 VDC | 304.8 m | 1000 ft | ||||
Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | Polypropylene (PP) | Chrome | Foil | 0.02 " | 0.508 mm | 4 | 1640.4 ft | 500 m | 30 AWG | 7 | 4.06 mm | 0.16 in | Multi-Pair | Audio Control Instrumentation | 300 VDC | ||||
Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | Polypropylene (PP) | Chrome | Foil | 0.02 " | 0.508 mm | 4 | 30 AWG | 7 | 4.06 mm | 0.16 in | Multi-Pair | Audio Control Instrumentation | 300 VDC | 3048 m | 10000 ft | Enter Number of Feet in Order Quantity |
