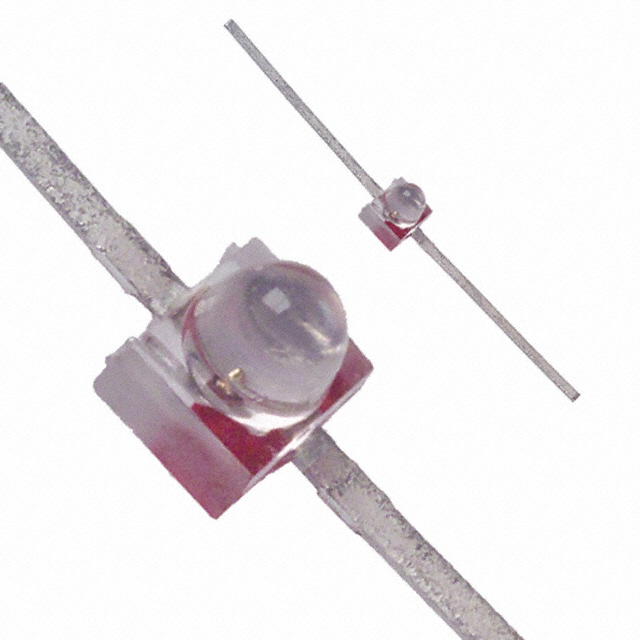

HLMP-6305 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED RED CLEAR ZBEND SMD
| Part | Lens Style | Wavelength - Dominant | Height (Max) [Max] | Package / Case | Supplier Device Package | Wavelength - Peak | Lens Size [diameter] | Viewing Angle | Color | Current - Test | Lens Transparency | Lens Color | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Mounting Type | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Round with Domed Top | 626 nm | 2.92 mm | 2-SMD Z-Bend | Z-Bend | 635 nm | 1.78 mm | 28 ° | Red | 10 mA | Clear | Colorless | 2.21 mm | 2.08 mm | 1.8 V | 40 mcd | Surface Mount | Standard |
 Broadcom Limited | Round with Domed Top | 626 nm | 2.92 mm | Axial Flat Leads | Axial | 635 nm | 1.91 mm | 28 ° | Red | 10 mA | Clear | Colorless | 2.21 mm | 2.08 mm | 1.8 V | 40 mcd | Axial Through Hole | Standard |
