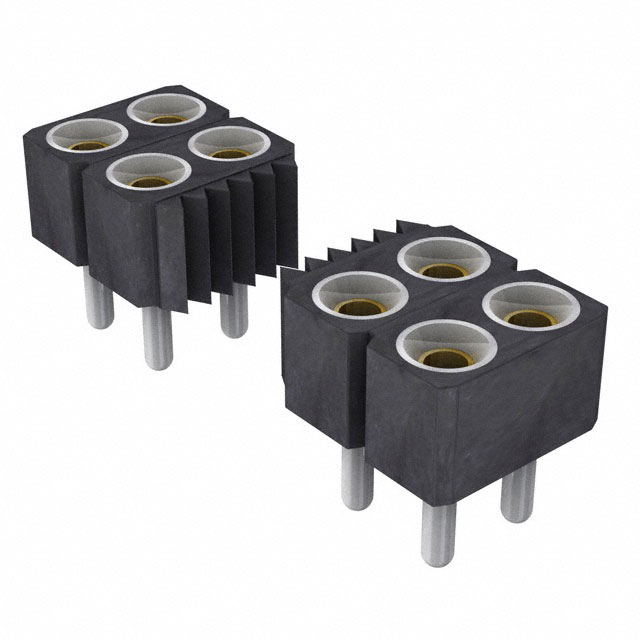

415-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 12POS 0.1 GOLD PCB

Part	Contact Material	Insulation Material	Contact Shape	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions	Termination	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Mounting Type	Number of Positions Loaded	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Type	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Finish - Post	Insulation Color
Preci-Dip 415-83-212-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	12	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
Preci-Dip 415-83-226-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	26	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
Preci-Dip 415-83-214-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	14	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
Preci-Dip 415-83-242-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	42	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
Preci-Dip 415-83-248-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	48	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
Preci-Dip 415-83-232-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm		Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black

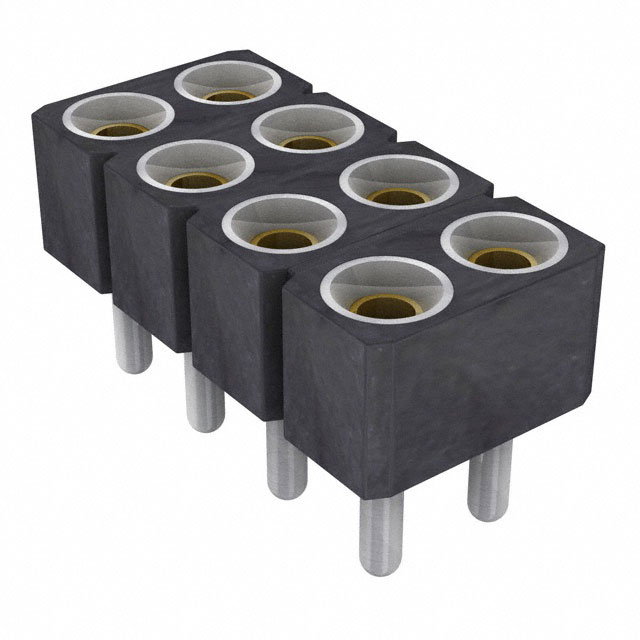

Preci-Dip 415-83-208-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	8	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
Preci-Dip 415-83-218-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	18	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
Preci-Dip 415-83-250-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	50	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
Preci-Dip 415-83-244-41-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.124 in	3.14 mm	UL94 V-0	29.5 µin	0.75 µm	44	Solder	0.107 in	2.71 mm	Gold	Through Hole	All	Socket	-55 C	125 °C	0.1 in	2.54 mm	Push-Pull	Female Socket	0.1 "	2.54 mm	2	Tin	Black
