7202 Series

Catalog

KEYPAD, 4 X 4, MATRIX, POLYMER, 50 MA, 24 V

Part	Operational Life	Approval Agency	Key Type	Number of Keys	Output Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Key Color	Illumination	Legend Type	Mounting Type	Ingress Protection	Switch Type	Legend Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Legend	Contact Rating @ Voltage
STORM INTERFACE 7202-16T0203	2000000 Cycles	CE	Polymer	16	Matrix	4	4	Multiple	Non-Illuminated	Fixed	Panel Mount Front or Rear	IP65 - Dust Tight Water Resistant	Conductive Rubber	White	-20 ░C	60 °C	Pin Header	Color Coded Format Telephone Format	0.05 A 24 VDC
STORM INTERFACE 7202-0400203	2000000 Cycles	CE	Polymer	4	Matrix			Multiple	Non-Illuminated	Fixed	Panel Mount Front or Rear	IP65 - Dust Tight Water Resistant	Conductive Rubber		-20 ░C	60 °C	Pin Header	Color Coded Format	0.05 A 24 VDC

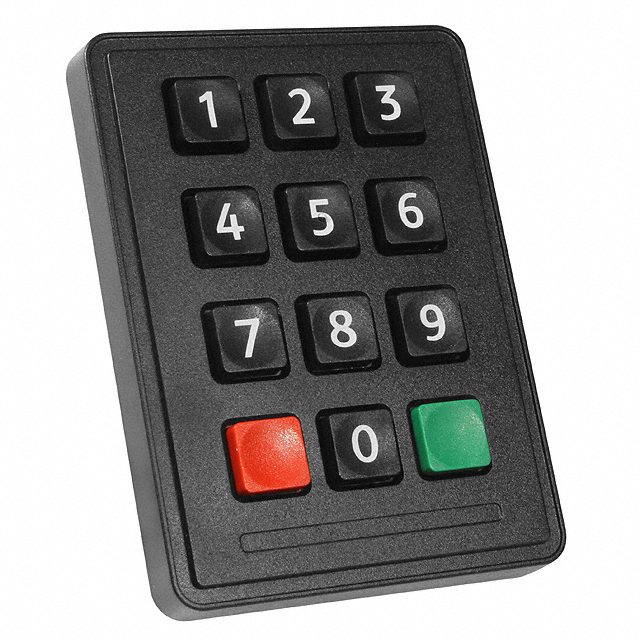

STORM INTERFACE 7202-12T0203	2000000 Cycles	CE	Polymer	12	Matrix	3	4	Multiple	Non-Illuminated	Fixed	Panel Mount Front or Rear	IP65 - Dust Tight Water Resistant	Conductive Rubber	White	-20 ░C	60 °C	Pin Header	Color Coded Format Telephone Format	0.05 A 24 VDC
