FMN.1M Series
Manufacturer: LEMO
Beta
⌘K

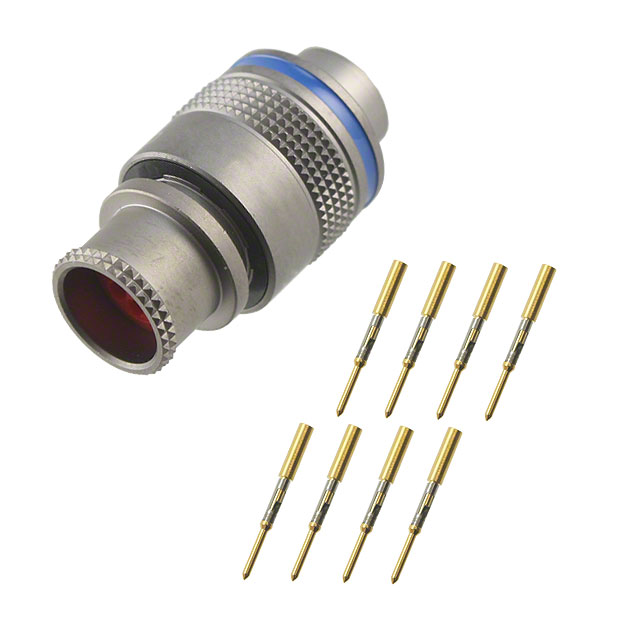

CONN PLUG MALE 2POS GOLD CRIMP
| Part | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Cable Opening | Cable Opening | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Material | Ingress Protection | Mounting Type | Insert Material | Shell Material | Shielding | Shell Finish | Orientation | Applications | Features | Shell Size - Insert | Termination | Contact Finish - Mating | Color | Number of Positions | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Threaded | 200 °C | -55 C | Metal | 0.382 in | 9.7 mm | 39.4 µin | 1 µm | Brass | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Aluminum Alloy | Shielded | Nickel | N (Normal) | Aerospace Automotive Aviation Military | Coupling Nut | 302 | Crimp | Gold | Gray | 2 | 19 A | Plug Male Pins |
LEMO | Threaded | 200 °C | -55 C | Metal | 0.382 in | 9.7 mm | 39.4 µin | 1 µm | Brass | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Aluminum Alloy | Shielded | Nickel | N (Normal) | Aerospace Automotive Aviation Military | Coupling Nut | 305 | Crimp | Gold | Gray | 5 | 9 A | Plug Male Pins |
 LEMO | Threaded | 200 °C | -55 C | Metal | 0.382 in | 9.7 mm | 39.4 µin | 1 µm | Brass | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Aluminum Alloy | Shielded | Nickel | N (Normal) | Aerospace Automotive Aviation Military | Coupling Nut | 308 | Crimp | Gold | Gray | 8 | 5 A | Plug Male Pins |
