5342FE Series
Manufacturer: Belden Inc.
Beta
⌘K

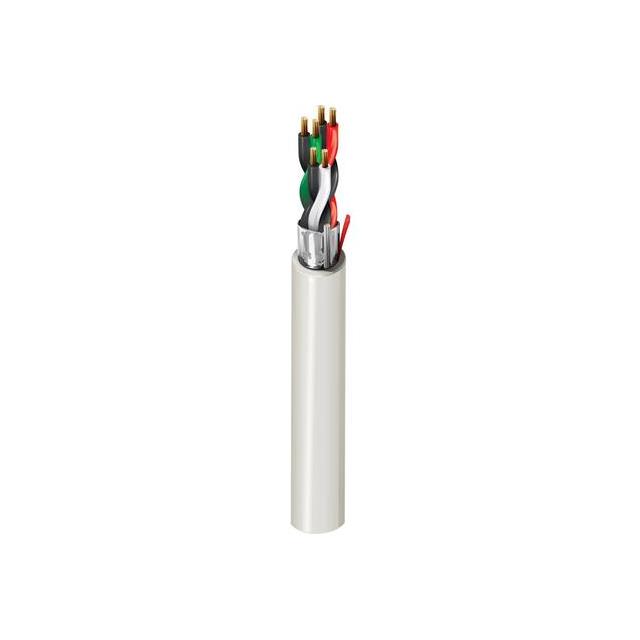

MULTI-PAIR 6CON 18AWG GRAY
| Part | Shield Coverage | Shield Material | Usage | Conductor Material | Voltage | Number of Conductors | Features | Jacket Color | Wire Gauge | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Security Sound | Copper Bare | 300 VDC | 6 | Rip Cord | Gray | 18 AWG | 304.8 m | 1000 ft | 0.017 " | 0.432 mm | Poly-Vinyl Chloride (PVC) Riser | Multi-Pair | 26 AWG | 7 | UL Style CMR | 6.78 mm | 0.267 in | Polypropylene (PP) | Foil |
