207365 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

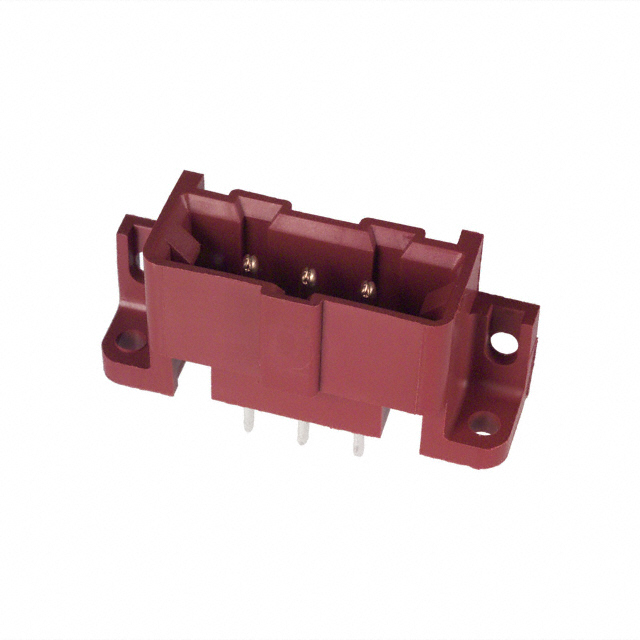

CONN HEADER VERT 3POS 5MM
| Part | Contact Finish - Post | Mounting Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Contact Shape | Insulation Color | Insulation Material | Number of Rows | Pitch - Mating | Pitch - Mating | Shrouding | Applications | Current Rating (Amps) | Number of Positions Loaded | Contact Material | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Connector Type | Voltage Rating | Contact Finish - Mating | Fastening Type | Material Flammability Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin-Lead | Through Hole | Male Pin | 130 °C | -55 °C | 0.689 in | 17.5 mm | Circular | Black Red | Nylon Polyamide (PA) | 1 | 5 mm | 0.197 " | Shrouded - 4 Wall | Automotive General Purpose Industrial | 7.5 A | All | Brass | Board to Board Cable | 30 Áin | 0.76 Ám | 150 Áin | 3.81 Ám | Mounting Flange | Header | 600 V | Gold | Latch Holder | UL94 V-0 | Solder |
