WR-40PB Series
Manufacturer: JAE Electronics
Beta
⌘K

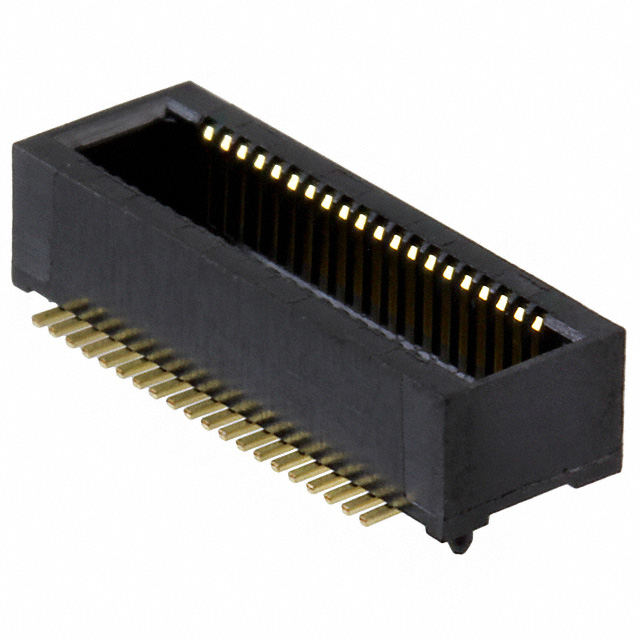

CONN PLUG 40POS SMD GOLD
| Part | Mated Stacking Heights | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Contact Finish | Features | Connector Type | Number of Positions | Mounting Type | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 5 mm 5.5 mm 8 mm | 0.1 Ám | 4 Áin | 2 | Gold | Board Guide | Plug Outer Shroud Contacts | 40 | Surface Mount | 0.02 " | 0.5 mm | 0.157 in | 4 mm | ||
JAE Electronics | 6 mm 6.5 mm 9 mm | 0.1 Ám | 4 Áin | 2 | Gold | Board Guide | Plug Outer Shroud Contacts | 40 | Surface Mount | 0.02 " | 0.5 mm | 5 mm | 0.197 in |
