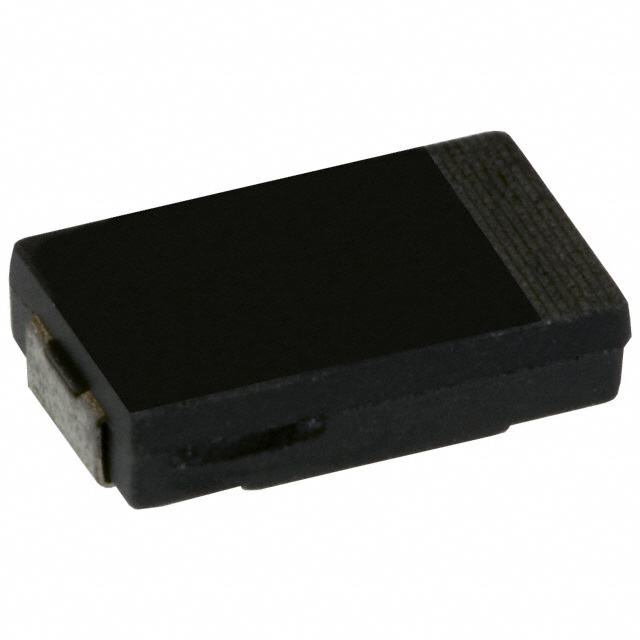

EEF-CD Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM POLY 82UF 20% 2.5V SMD

Part	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Lifetime @ Temp.	Capacitance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Type	Package / Case	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)
Panasonic Industrial Automation Sales EEF-CD0E820CR	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	82 µF	2.5 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C
Panasonic Industrial Automation Sales EEF-CD0G820CX	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	82 µF	4 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C
Panasonic Industrial Automation Sales EEF-CD0E820CE	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	82 µF	2.5 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C
Panasonic Industrial Automation Sales EEF-CD0J470XE	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	47 µF	6.3 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C	2.7 A	15 mOhm
Panasonic Industrial Automation Sales EEF-CD0G820ER					4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	82 µF	4 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C	2.5 A
Panasonic Industrial Automation Sales EEF-CD0G101CR	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	100 µF	4 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C
Panasonic Industrial Automation Sales EEF-CD0D101XE	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	100 µF	2 VDC	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C	2.7 A	15 mOhm
Panasonic Industrial Automation Sales EEF-CD0E101CE	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	100 µF	2.5 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C
Panasonic Industrial Automation Sales EEF-CD0E101R	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	100 µF	2.5 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C
Panasonic Industrial Automation Sales EEF-CD1A390ER	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	1000 Hrs	39 µF	10 V	1.9 mm	0.075 in	Surface Mount	Polymer	7343 Metric	2917	General Purpose	-40 °C	105 ░C	1.8 A	25 mOhm
