090663 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 40POS 2.54MM

Part	Shrouding	Features	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Material	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Style	Contact Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Material	Insulation Height	Insulation Height	Number of Positions Loaded	Termination	Material Flammability Rating	Connector Type	Insulation Color	Number of Positions	Contact Finish - Mating	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Number of Positions
Molex 0906633402	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	30 Áin	0.76 Ám	Square	Polyester Glass Filled	0.335 "	8.51 mm	All	Solder	UL94 V-0	Header	Black	40	Gold	Through Hole Right Angle	5.08 mm	0.2 in
Molex 0906631143	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	10 çin	0.25 çm	Square	Polyester Glass Filled			All	Solder	UL94 V-0	Header	Black	14	Gold	Through Hole	5.08 mm	0.2 in	16.7 mm	0.657 in
Molex 0906631163	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	10 çin	0.25 çm	Square	Polyester Glass Filled			All	Solder	UL94 V-0	Header	Black		Gold	Through Hole	5.08 mm	0.2 in	16.7 mm	0.657 in	16
Molex 0906636142

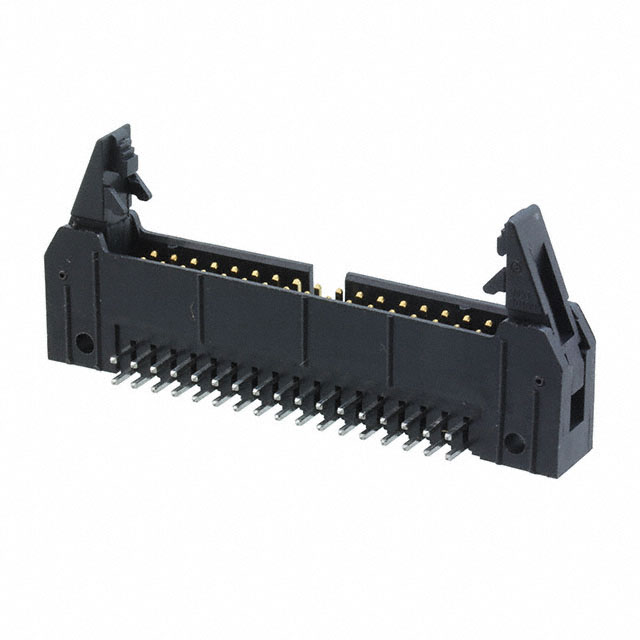

Molex 0906633342	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	30 Áin	0.76 Ám	Square	Polyester Glass Filled	0.335 "	8.51 mm	All	Solder	UL94 V-0	Header	Black	34	Gold	Through Hole Right Angle	5.08 mm	0.2 in

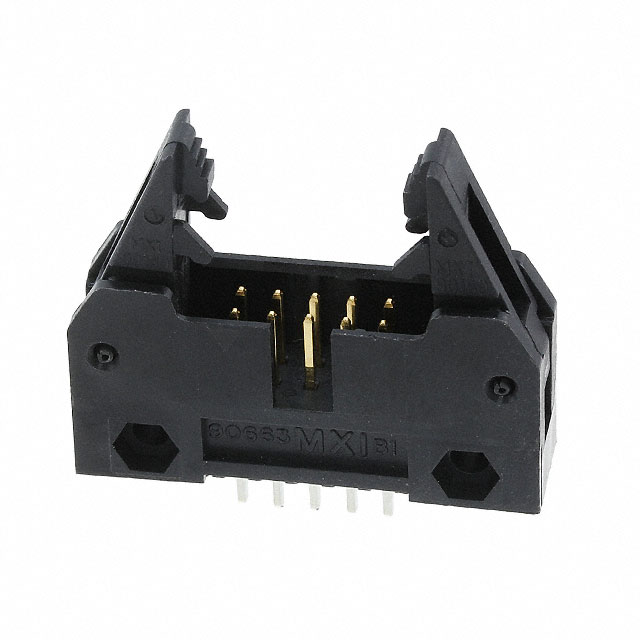

Molex 0906631102	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	30 Áin	0.76 Ám	Square	Polyester Glass Filled			All	Solder	UL94 V-0	Header	Black	10	Gold	Through Hole	5.08 mm	0.2 in	16.7 mm	0.657 in

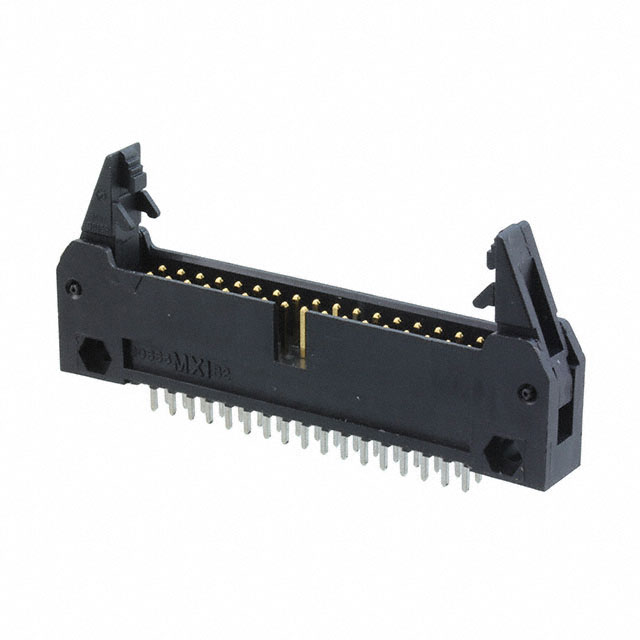

Molex 0906631342	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	30 Áin	0.76 Ám	Square	Polyester Glass Filled			All	Solder	UL94 V-0	Header	Black	34	Gold	Through Hole	5.08 mm	0.2 in	16.7 mm	0.657 in
Molex 0906631103	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	10 çin	0.25 çm	Square	Polyester Glass Filled			All	Solder	UL94 V-0	Header	Black	10	Gold	Through Hole	5.08 mm	0.2 in	16.7 mm	0.657 in
Molex 0906631202	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	30 Áin	0.76 Ám	Square	Polyester Glass Filled			All	Solder	UL94 V-0	Header	Black	20	Gold	Through Hole	5.08 mm	0.2 in	16.7 mm	0.657 in
Molex 0906631642	Shrouded - 4 Wall	Mounting Flange	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Brass	2	2.54 mm	0.1 in	3.5 mm	0.138 in	Board to Cable/Wire	Male Pin	Tin	3 µm	118.1 µin	30 Áin	0.76 Ám	Square	Polyester Glass Filled			All	Solder	UL94 V-0	Header	Black	64	Gold	Through Hole	5.08 mm	0.2 in	16.7 mm	0.657 in
