25112 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

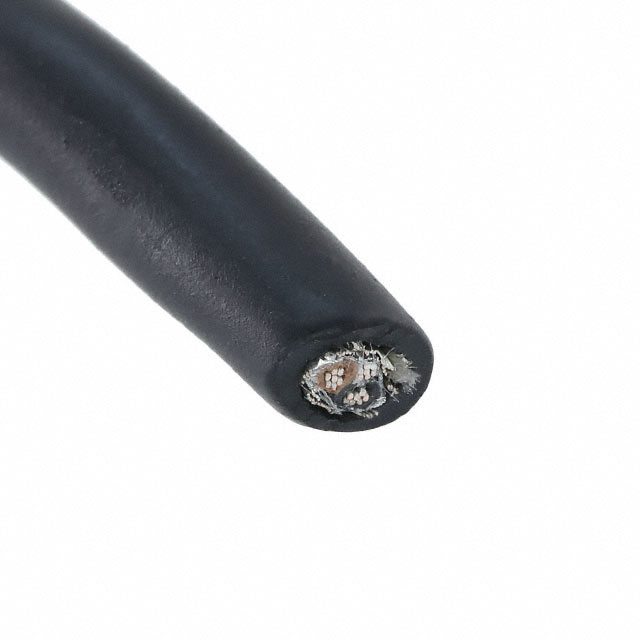

CABLE 2COND 24AWG BLK SHLD 1000'
| Part | Shield Coverage | Shield Material | Cable Type | Conductor Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Features | Jacket Color | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Multi-Conductor | Copper Tinned | 300 VDC | 4.67 mm | 0.184 in | 7 | 32 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Polyurethane (PU) | 24 AWG | -30 ░C | 90 °C | ISO 10993 UL Style 20668 | Biological Compatibility Drain Wire Rip Cord | Black | Braid Foil | 0.813 mm | 0.032 in | 2 |
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Multi-Conductor | Copper Tinned | 300 VDC | 4.67 mm | 0.184 in | 7 | 32 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Polyurethane (PU) | 24 AWG | -30 ░C | 90 °C | ISO 10993 UL Style 20668 | Biological Compatibility Drain Wire Rip Cord | Slate | Braid Foil | 0.813 mm | 0.032 in | 2 |
