316-013 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 26POS 0.156

Part	Material - Insulation	Termination Rows	Read Out	Mounting Type	Gender	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Type	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Termination	Card Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 316-013-500-101	Polyester Thermoplastic	1	Dual	Free Hanging (In-Line)	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Gold	Green	0.25 Ám	10 Áin	3.96 mm	0.156 in	Solder Eyelet(s)	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy
EDAC Inc. 316-013-521-158	Polyester Thermoplastic	1	Dual	Panel Mount Through Hole	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Gold	Green	0.25 Ám	10 Áin	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy	Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 316-013-421-102	Polyester Thermoplastic	1	Dual	Panel Mount Through Hole	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Tin	Green			3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

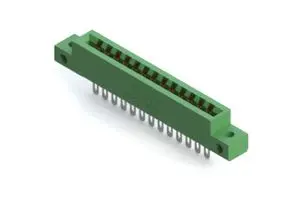

EDAC Inc. 316-013-500-112	Polyester Thermoplastic	1	Dual	Panel Mount	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Gold	Green	0.25 Ám	10 Áin	3.96 mm	0.156 in	Solder Eyelet(s)	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy		Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 316-013-400-112	Polyester Thermoplastic	1	Dual	Panel Mount	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Tin	Green			3.96 mm	0.156 in	Solder Eyelet(s)	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy		Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 316-013-420-102	Polyester Thermoplastic	1	Dual	Panel Mount Through Hole	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Tin	Green			3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 316-013-500-107	Polyester Thermoplastic	1	Dual	Panel Mount	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Gold	Green	0.25 Ám	10 Áin	3.96 mm	0.156 in	Solder Eyelet(s)	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 316-013-500-104	Polyester Thermoplastic	1	Dual	Panel Mount	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Gold	Green	0.25 Ám	10 Áin	3.96 mm	0.156 in	Solder Eyelet(s)	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy		Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
EDAC Inc. 316-013-521-103	Polyester Thermoplastic	1	Dual	Panel Mount Through Hole	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Gold	Green	0.25 Ám	10 Áin	3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy		Floating Bobbin Flush Mount	2.95 mm	0.116 "
EDAC Inc. 316-013-420-168	Polyester Thermoplastic	1	Dual	Panel Mount Through Hole	Female	13	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Cantilever	Tin	Green			3.96 mm	0.156 in	Solder	Non Specified - Dual Edge	2	-40 C	105 ░C	Copper Alloy	Card Guides	4-40 Flush Mount Threaded Insert Top Opening
