ECMA-E Series
Manufacturer: Delta Electronics/Industrial Automation
Beta
⌘K

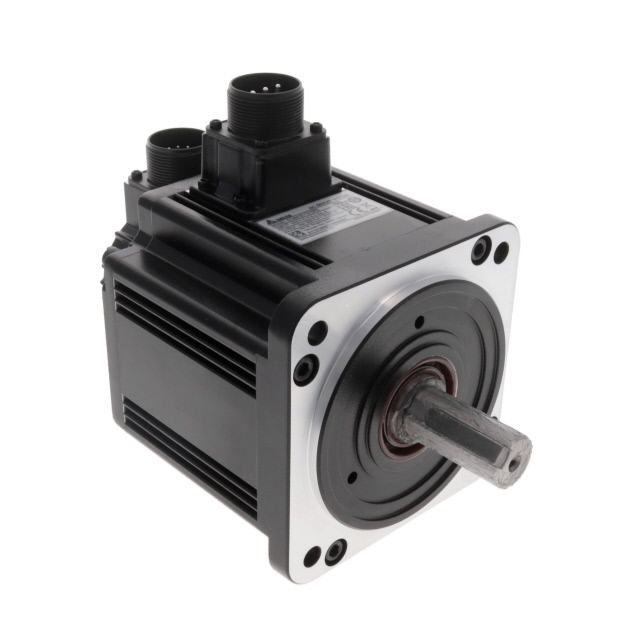

SERVOMOTOR 2000 RPM 220V
| Part | Approval Agency | Encoder Type | Features | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Operating Temperature [Max] | Operating Temperature [Min] | Power - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Function | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | RPM | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Termination Style | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Voltage - Rated | Type | Torque - Max Momentary (oz-in / mNm) [custom] | Torque - Max Momentary (oz-in / mNm) [custom] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Length - Shaft and Bearing | Length - Shaft and Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Industrial Automation | CE cURus | Absolute | Key Oil Seal | 1352 oz-in | 9550 mNm | 40 °C | 0 °C | 2 kW | 22 mm | 0.866 in | Servomotor | 130 mm | 5.118 in | 130 mm | 5.118 " | 2000 RPM | 2.165 in | 55 mm | Cable with Connector | 5.709 in | 145 mm | 220 VAC | AC Motor | 28650 mNm | 4057 oz-in | ||||
 Delta Electronics/Industrial Automation | CE cURus | Incremental | Key Oil Seal | 2028 oz-in | 14320 mNm | 40 °C | 0 °C | 3 kW | 35 mm | 1.378 in | Servomotor | 180 mm | 7.087 in | 180 mm | 7.087 " | 2000 RPM | Cable with Connector | 7.874 in | 200 mm | 220 VAC | AC Motor | 6085 oz-in | 42970 mNm | 3.11 in | 79 mm | ||||
Delta Electronics/Industrial Automation | CE cURus | Absolute | Brake Key Oil Seal | 338.5 oz-in | 2390 mNm | 40 °C | 0 °C | 500 W | 22 mm | 0.866 in | Servomotor | 130 mm | 5.118 in | 130 mm | 5.118 " | 2000 RPM | 2.165 in | 55 mm | Cable with Connector | 5.709 in | 145 mm | 220 VAC | AC Motor | 1014 oz-in | 7160 mNm | ||||
Delta Electronics/Industrial Automation | CE cURus | Incremental | Key Oil Seal | 1352 oz-in | 9550 mNm | 40 °C | 0 °C | 2 kW | 22 mm | 0.866 in | Servomotor | 130 mm | 5.118 in | 130 mm | 5.118 " | 2000 RPM | 2.165 in | 55 mm | Cable with Connector | 5.709 in | 145 mm | 220 VAC | AC Motor | 28650 mNm | 4057 oz-in | ||||
Delta Electronics/Industrial Automation | CE cURus | Absolute | Brake Key Oil Seal | 1352 oz-in | 9550 mNm | 40 °C | 0 °C | 2 kW | 22 mm | 0.866 in | Servomotor | 130 mm | 5.118 in | 130 mm | 5.118 " | 2000 RPM | 2.165 in | 55 mm | Cable with Connector | 5.709 in | 145 mm | 220 VAC | AC Motor | 28650 mNm | 4057 oz-in | ||||
Delta Electronics/Industrial Automation | CE cURus | Incremental | Key Oil Seal | 675.5 oz-in | 4770 mNm | 40 °C | 0 °C | 1000 W | 22 mm | 0.866 in | Servomotor | 130 mm | 5.118 in | 130 mm | 5.118 " | 2000 RPM | 2.165 in | 55 mm | Cable with Connector | 5.709 in | 145 mm | 220 VAC | AC Motor | 2025 oz-in | 14300 mNm | ||||
Delta Electronics/Industrial Automation | CE cURus | Incremental | Key Oil Seal | 338.5 oz-in | 2390 mNm | 40 °C | 0 °C | 500 W | 22 mm | 0.866 in | Servomotor | 130 mm | 5.118 in | 130 mm | 5.118 " | 2000 RPM | 2.165 in | 55 mm | Cable with Connector | 5.709 in | 145 mm | 220 VAC | AC Motor | 1014 oz-in | 7160 mNm | ||||
Delta Electronics/Industrial Automation | CE cURus | Incremental | Key Oil Seal | 2028 oz-in | 14320 mNm | 40 °C | 0 °C | 3 kW | 35 mm | 1.378 in | Servomotor | 180 mm | 7.087 in | 180 mm | 7.087 " | 2000 RPM | Cable with Connector | 7.874 in | 200 mm | 220 VAC | AC Motor | 6085 oz-in | 42970 mNm | 3.11 in | 79 mm | ||||
 Delta Electronics/Industrial Automation | CE cURus | Absolute | Brake Key Oil Seal | 1014 oz-in | 7160 mNm | 40 °C | 0 °C | 1500 W | 22 mm | 0.866 in | Servomotor | 130 mm | 5.118 in | 130 mm | 5.118 " | 2000 RPM | 2.165 in | 55 mm | Cable with Connector | 5.709 in | 145 mm | 220 VAC | AC Motor | 3042 oz-in | 21480 mNm | ||||
 Delta Electronics/Industrial Automation | CE cURus | Incremental | Key Oil Seal | 1014 oz-in | 7160 mNm | 40 °C | 0 °C | 1500 W | 22 mm | 0.866 in | Servomotor | 130 mm | 5.118 in | 130 mm | 5.118 " | 2000 RPM | 2.165 in | 55 mm | Cable with Connector | 5.709 in | 145 mm | 220 VAC | AC Motor | 3042 oz-in | 21480 mNm |
