BC817 Series

45 V, 0.5 A, General Purpose NPN Transistor

Catalog

45 V, 0.5 A, General Purpose NPN Transistor

Part	Package / Case	Power - Max	Current - Collector Cutoff (Max)	Transistor Type	Package Name	Mounting Type	Voltage - Collector Emitter Breakdown (Max)	Grade	Vce Saturation (Max)	DC Current Gain (hFE) (Min)	Frequency - Transition	Qualification	Operating Temperature	Current - Collector (Ic) (Max)
NXP USA Inc. BC817-25,215	SC-59 SOT-23-3 TO-236-3	250 mW	100 nA	NPN	SOT-23	Surface Mount	45 V	Automotive	700 mV	160	100 MHz	AEC-Q101	150 °C	500 mA

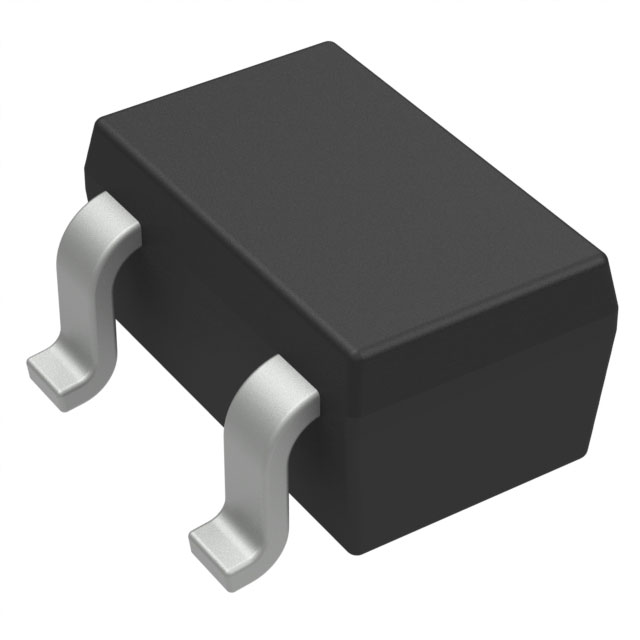

NXP USA Inc. BC817-16W,135	SC-70 SOT-323	200 mW	100 nA	NPN	SOT-323	Surface Mount	45 V	Automotive	700 mV	100	100 MHz	AEC-Q101	150 °C	500 mA
NXP USA Inc. BC817,235
NXP USA Inc. BC817-16W,115	SC-70 SOT-323	200 mW	100 nA	NPN	SOT-323	Surface Mount	45 V	Automotive	700 mV	100	100 MHz	AEC-Q101	150 °C	500 mA

Catalog

45 V, 0.5 A, General Purpose NPN Transistor

Description

The NPN Bipolar Transistor is designed for use in linear and switching applications. The device is housed in the SOT-23 package, which is designed for lower power surface mount applications.
