M2013S2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Current Rating (Amps)	Features	Circuit	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Length	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]	Illumination	Bushing Thread	Ingress Protection	Actuator Length [x]

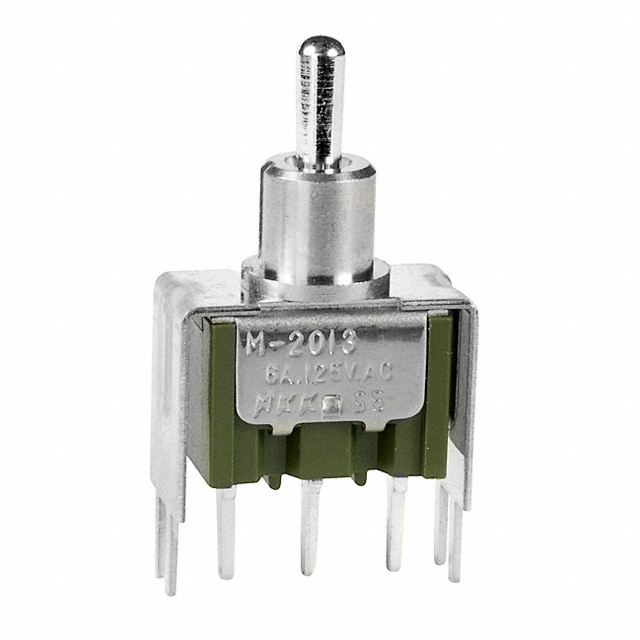

NKK Switches M2013S2A2W13	25000 Steps	Brass Chrome Plated	3 A 6 A	Epoxy Sealed Terminals	SPDT	On-Off-On	30 V	125 V	85 °C	-30 ░C	Through Hole	6.86 mm	Standard Round	PC Pin	6.5 mm	Non-Illuminated	Unthreaded

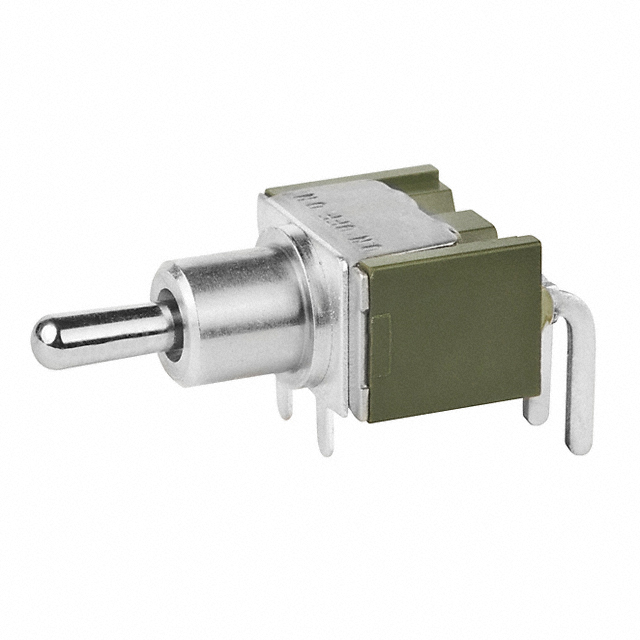

NKK Switches M2013S2A2W30	25000 Steps	Brass Chrome Plated	3 A 6 A	Epoxy Sealed Terminals	SPDT	On-Off-On	30 V	125 V	85 °C	-30 ░C	Right Angle Through Hole	6.86 mm	Standard Round	PC Pin	6.5 mm	Non-Illuminated	Unthreaded
NKK Switches M2013S2A2G30	50000 Cycles	Brass Chrome Plated	0.4 VA	Epoxy Sealed Terminals	SPDT	On-Off-On	28 V	28 V	85 °C	-30 ░C	Right Angle Through Hole	6.86 mm	Standard Round	PC Pin	6.5 mm	Non-Illuminated	Unthreaded

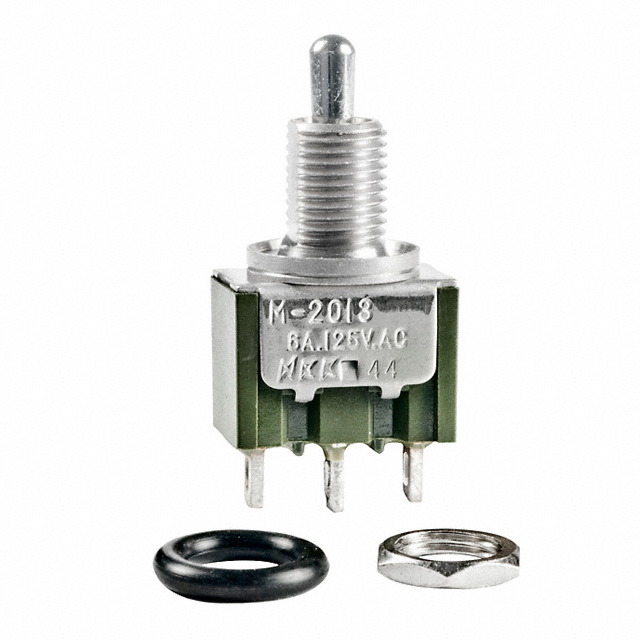

NKK Switches M2013S2D3W01	25000 Steps	Brass Chrome Plated	3 A 6 A	Epoxy Sealed Terminals	SPDT	On-Off-On	30 V	125 V	85 °C	-30 ░C	Panel Mount		Standard Round	Solder Lug	6.5 mm	Non-Illuminated	1/4-40	IP67 - Dust Tight Waterproof	5.08 mm

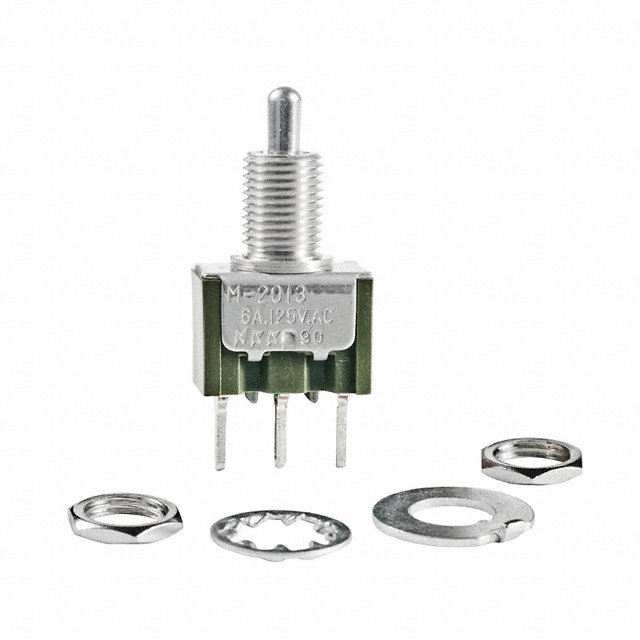

NKK Switches M2013S2S1W03	25000 Steps	Brass Chrome Plated	3 A 6 A	Epoxy Sealed Terminals	SPDT	On-Off-On	30 V	125 V	85 °C	-30 ░C	Panel Mount		Standard Round	PC Pin	6.5 mm	Non-Illuminated	1/4-40		5.08 mm

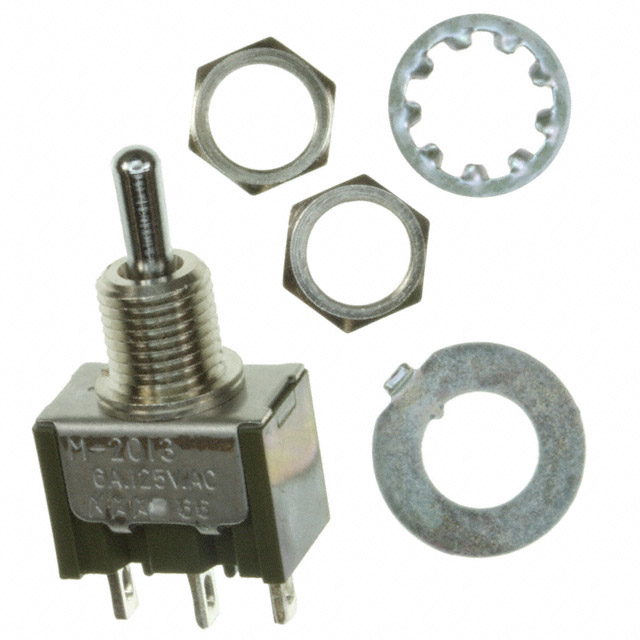

NKK Switches M2013S2A1W01	25000 Steps	Brass Chrome Plated	3 A 6 A	Epoxy Sealed Terminals	SPDT	On-Off-On	30 V	125 V	85 °C	-30 ░C	Panel Mount	6.86 mm	Standard Round	Solder Lug	6.5 mm	Non-Illuminated	1/4-40

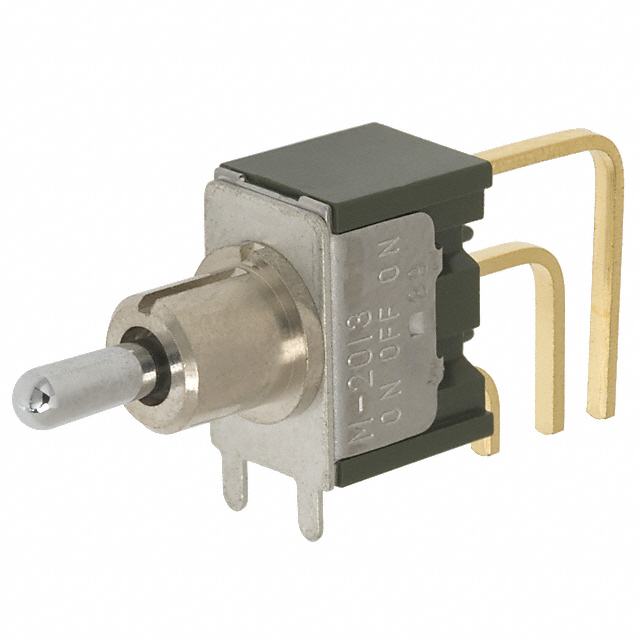

NKK Switches M2013S2A2G40	50000 Cycles	Brass Chrome Plated	0.4 VA	Epoxy Sealed Terminals	SPDT	On-Off-On	28 V	28 V	85 °C	-30 ░C	Right Angle Through Hole Vertical	6.86 mm	Standard Round	PC Pin	6.5 mm	Non-Illuminated	Unthreaded
