228EMSA Series
Manufacturer: Tusonix a Subsidiary of CTS Electronic Components
Beta
⌘K

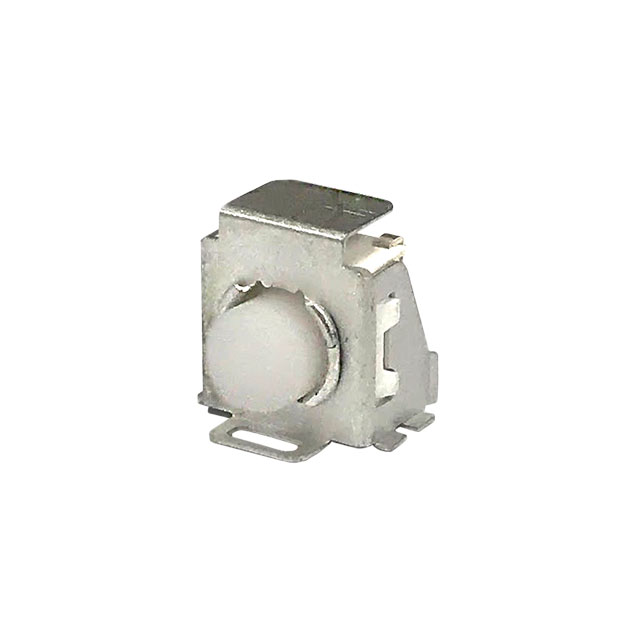

SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Termination Style | Contact Rating @ Voltage | Operating Force | Actuator Length, Right Angle [x] | Actuator Type | Switch Travel | Circuit | Illumination | Illumination Type, Color | Ingress Protection | Mechanical Life | Mounting Type | Outline [x] | Outline [y] | Actuator Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tusonix a Subsidiary of CTS Electronic Components | Gull Wing | 0.05 A 12 VDC | 200 gf | 6.55 mm | Standard | 0.7 mm | SPST-NO | Illuminated | Amber LED | IP67 - Dust Tight Waterproof | 100000 Cycles | Surface Mount Right Angle | 7.2 mm | 4.7 mm | Side Actuated | 85 °C | -40 °C | Off-Mom |
