TXB-V86 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Sound Pressure Level (SPL)	Termination	Termination	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Supply [Max]	Current - Supply [Min]	Technology	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Voltage Range [Min]	Voltage Range [Max]	Input Type	Approval Agency	Operating Mode	Frequency	Driver Circuitry	Ingress Protection	Port Location

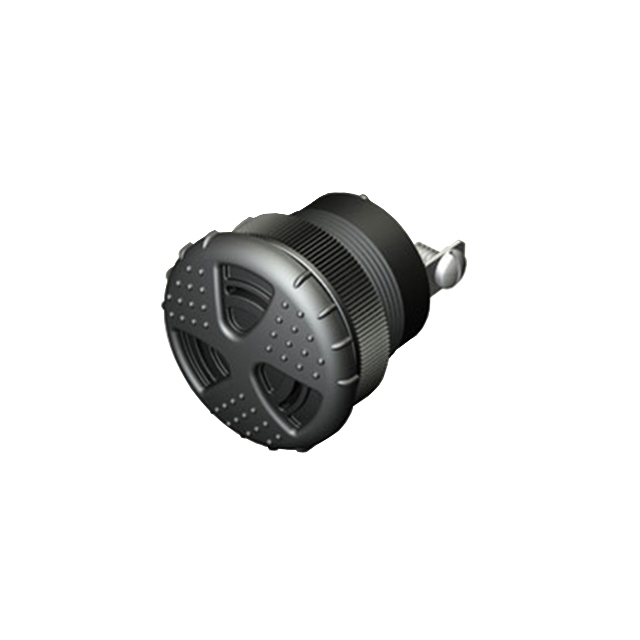

Floyd Bell Inc TXB-V86-515-S(S)	103 dB	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	1.41 in	35.81 mm	50 mA	10 mA	Piezo	1.25 "	31.75 mm	Panel Mount	5 VDC	15 V	DC	UL UR	Pulse Slow	2.9 kHz	Indicator Internally Driven	IP68 - Dust Tight Waterproof	Top

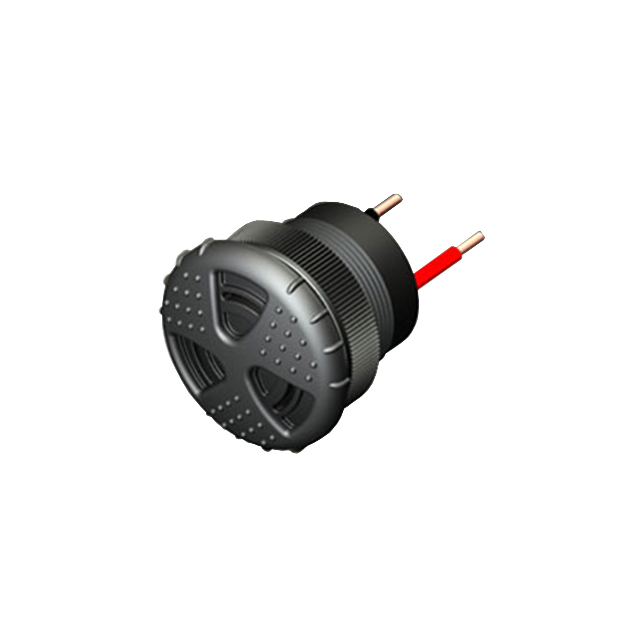

Floyd Bell Inc TXB-V86-515-W(S)	103 dB		Wire Leads		1.41 in	35.81 mm	50 mA	10 mA	Piezo	1.25 "	31.75 mm	Panel Mount	5 VDC	15 V	DC	UL UR	Pulse Slow	2.9 kHz	Indicator Internally Driven	IP68 - Dust Tight Waterproof	Top
Floyd Bell Inc TXB-V86-515-S(F)	103 dB	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	1.41 in	35.81 mm	50 mA	10 mA	Piezo	1.25 "	31.75 mm	Panel Mount	5 VDC	15 V	DC	UL UR	Fast Pulse	2.9 kHz	Indicator Internally Driven	IP68 - Dust Tight Waterproof	Top
Floyd Bell Inc TXB-V86-515-W(F)	103 dB		Wire Leads		1.41 in	35.81 mm	50 mA	10 mA	Piezo	1.25 "	31.75 mm	Panel Mount	5 VDC	15 V	DC	UL UR	Fast Pulse	2.9 kHz	Indicator Internally Driven	IP68 - Dust Tight Waterproof	Top
Floyd Bell Inc TXB-V86-515-Q(F)	103 dB	0.25 "	Quick Connect Tab	6.35 mm	1.41 in	35.81 mm	50 mA	10 mA	Piezo	1.25 "	31.75 mm	Panel Mount	5 VDC	15 V	DC	UL UR	Fast Pulse	2.9 kHz	Indicator Internally Driven	IP68 - Dust Tight Waterproof	Top
Floyd Bell Inc TXB-V86-515-Q(S)	103 dB	0.25 "	Quick Connect Tab	6.35 mm	1.41 in	35.81 mm	50 mA	10 mA	Piezo	1.25 "	31.75 mm	Panel Mount	5 VDC	15 V	DC	UL UR	Pulse Slow	2.9 kHz	Indicator Internally Driven	IP68 - Dust Tight Waterproof	Top
